Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RL181S-823J-RCFIXED IND 82MH 10MA 71 OHM TH |
915 | 0.37 |
|
Datasheet |
RL181S | Radial, Vertical Cylinder | Tube | Active | Drum Core, Wirewound | Ferrite | 82 mH | ±5% | 10 mA | - | Shielded | 71Ohm Max | 100 @ 50kHz | 90kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.551" (14.00mm) |
|
74451222FIXED IND 220UH 220MA 0.77OHM SM |
863 | 0.36 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 220 µH | ±20% | 220 mA | 80mA | Shielded | 770mOhm Max | - | 5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
RL875S-392K-RCFIXED IND 3.9MH 120MA 12.9OHM TH |
627 | 0.37 |
|
Datasheet |
RL875S | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.9 mH | ±10% | 120 mA | - | Shielded | 12.9Ohm Max | 95 @ 252kHz | 1MHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
|
RL875S-103K-RCFIXED IND 10MH 74MA 35 OHM TH |
576 | 0.37 |
|
Datasheet |
RL875S | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 74 mA | - | Shielded | 35Ohm Max | 85 @ 79.6kHz | 500kHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
|
RL181S-153J-RCFIXED IND 15MH 22MA 15 OHM TH |
549 | 0.37 |
|
Datasheet |
RL181S | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 mH | ±5% | 22 mA | - | Shielded | 15Ohm Max | 100 @ 50kHz | 220kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.551" (14.00mm) |
|
RL875S-122K-RCFIXED IND 1.2MH 210MA 3.9 OHM TH |
500 | 0.37 |
|
Datasheet |
RL875S | Radial, Vertical Cylinder | Tube | Active | Drum Core, Wirewound | Ferrite | 1.2 mH | ±10% | 210 mA | - | Shielded | 3.9Ohm Max | 110 @ 252kHz | 1.5MHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
|
7445120FIXED IND 100UH 300MA 0.48OHM SM |
186 | 0.36 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 100 µH | ±20% | 300 mA | 90mA | Shielded | 480mOhm Max | - | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|

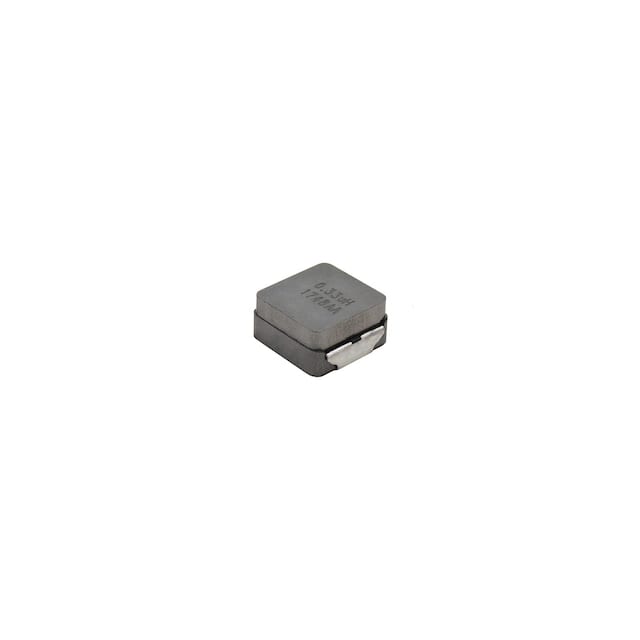

IHLP4040EDER8R2M5AFIXED IND 8.2UH 8.61A 22.36 MOHM |
956 | 0.33 |
|
Datasheet |
IHLP-4040ED-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 8.61 A | 11.1A | Shielded | 22.36mOhm Max | - | 12.55MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4040 | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.213" (5.40mm) |
|
IHLE3232DDER330M5AIHLE-3232DD-5A 33 20% ER E3 |
901 | 0.36 |
|
Datasheet |
IHLE-3232DD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | Metal Composite | 33 µH | ±20% | 3.1 A | 3.2A | Shielded | 159.43mOhm Max | - | 6.1MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | Nonstandard, 4 Lead | 0.350" L x 0.344" W (8.89mm x 8.74mm) | 0.174" (4.42mm) |
|
784787180WE-PD2SA SMT SHIELDED POWER INDU |
640 | 0.36 |
|
Datasheet |
WE-PD2SA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±25% | 2.15 A | 1.9A | Shielded | 78mOhm Max | - | 15MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
784787100WE-PD2SA SMT SHIELDED POWER INDU |
446 | 0.36 |
|
Datasheet |
WE-PD2SA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±25% | 2.6 A | 2.6A | Shielded | 43mOhm Max | - | 24MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
SRP1250-R68MFIXED IND 680NH 34A 1.7 MOHM SMD |
2,573 | 0.37 |
|
Datasheet |
SRP1250 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 680 nH | ±20% | 34 A | 54A | Shielded | 1.7mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|
EST1060T4R7NDGAFIXED IND 4.7UH 5.5A 14MOHM SMD |
2,354 | 0.37 |
|
Datasheet |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 5.5 A | 5.8A | Shielded | 14mOhm Max | - | 32MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
SRP1245A-2R7MFIXED IND 2.7UH 17A 6.7 MOHM SMD |
2,243 | 0.38 |
|
Datasheet |
SRP1245A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 2.7 µH | ±20% | 17 A | 34A | Shielded | 6.7mOhm Max | 20 @ 100kHz | 23MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|
|
SRP1245A-1R5MFIXED IND 1.5UH 27A 3.3 MOHM SMD |
2,164 | 0.38 |
|
Datasheet |
SRP1245A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 1.5 µH | ±20% | 27 A | 48A | Shielded | 3.3mOhm Max | 20 @ 100kHz | 30MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|
|
SRP1250-7R8MFIXED IND 7.8UH 10A 20.5MOHM SMD |
1,340 | 0.37 |
|
Datasheet |
SRP1250 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 7.8 µH | ±20% | 10 A | 18A | Shielded | 20.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|
|
SRP1245A-8R2MFIXED IND 8.2UH 9.5A 22.5MOHM SM |
1,298 | 0.38 |
|
Datasheet |
SRP1245A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 8.2 µH | ±20% | 9.5 A | 18A | Shielded | 22.5mOhm Max | 20 @ 100kHz | 11MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|
MPI4015V2-100-RFIXED IND 10UH 1.8A 294 MOHM SMD |
913 | 0.36 |
|
Datasheet |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 1.8 A | 2.1A | Shielded | 294mOhm Max | - | 14MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | 0.059" (1.50mm) |
|
|
SRP1245A-1R8MFIXED IND 1.8UH 21A 4.9 MOHM SMD |
811 | 0.38 |
|
Datasheet |
SRP1245A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 1.8 µH | ±20% | 21 A | 40A | Shielded | 4.9mOhm Max | 20 @ 100kHz | 27MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|
SPM5030T-1R5M-HZFIXED IND 1.5UH 9.2A 16.5MOHM SM |
757 | 0.38 |
|
Datasheet |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 9.2 A | 5.1A | Shielded | 16.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.197" W (5.20mm x 5.00mm) | 0.118" (3.00mm) |
