Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-53650NLTFIXED IND 3.8UH 4.8A 17.3MOHM SM |
4,240 | 0.35 |
|
Datasheet |
SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 3.8 µH | - | 4.8 A | - | Unshielded | 17.3mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
74438313015FIXED IND 1.5UH 950MA 237MOHM SM |
3,023 | 0.37 |
|
Datasheet |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.5 µH | ±30% | 950 mA | 2.7A | Shielded | 237mOhm Max | - | 90MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1610 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.039" (1.00mm) |
|
|
74438313012FIXED IND 1.2UH 1.3A 174MOHM SMD |
2,692 | 0.35 |
|
Datasheet |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.2 µH | ±30% | 1.3 A | 3.2A | Shielded | 174mOhm Max | - | 109MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1610 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.039" (1.00mm) |
|
|
744383130033FIXED IND 330NH 1.9A 84 MOHM SMD |
2,610 | 0.35 |
|
Datasheet |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 330 nH | ±30% | 1.9 A | 4.9A | Shielded | 84mOhm Max | - | 215MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1610 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.039" (1.00mm) |
|
|
744383130047FIXED IND 470NH 1.7A 101MOHM SMD |
1,813 | 0.37 |
|
Datasheet |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 470 nH | ±30% | 1.7 A | 4.5A | Shielded | 101mOhm Max | - | 200MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1610 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.039" (1.00mm) |
|
|
74438313010FIXED IND 1UH 1.4A 159 MOHM SMD |
1,729 | 0.37 |
|
Datasheet |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 1 µH | ±30% | 1.4 A | 3.4A | Shielded | 159mOhm Max | - | 111MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1610 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.039" (1.00mm) |
|

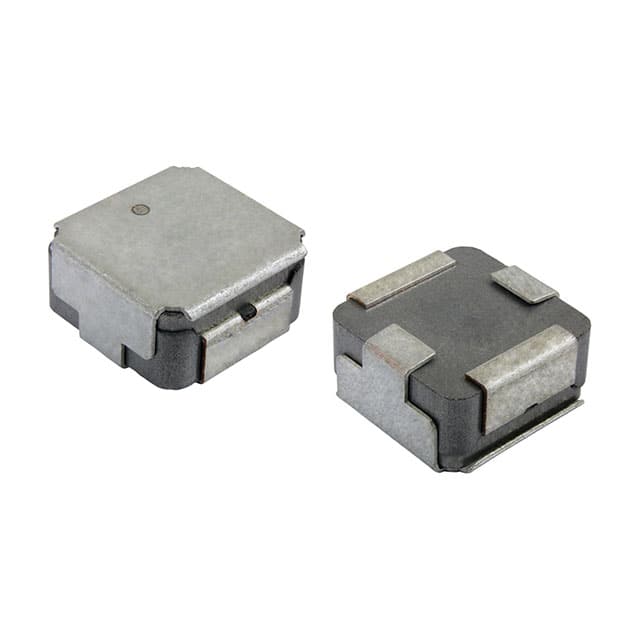

IHLE3232DDER150M5AIHLE-3232DD-5A 15 20% ER E3 |
1,066 | 0.36 |
|
Datasheet |
IHLE-3232DD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | Metal Composite | 15 µH | ±20% | 4.8 A | 3.6A | Shielded | 66.34mOhm Max | - | 10MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | Nonstandard, 4 Lead | 0.350" L x 0.344" W (8.89mm x 8.74mm) | 0.174" (4.42mm) |
|
B82477P4683M000FIXED IND 68UH 2.35A 98 MOHM SMD |
825 | 0.43 |
|
Datasheet |
B82477P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2.35 A | 2.45A | Shielded | 98mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
MWSA1206S-151MTFIXED IND 150UH 1.5A 350MOHM SMD |
313 | 0.36 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 150 µH | ±20% | 1.5 A | 2.7A | Shielded | 350mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.236" (6.00mm) |
|

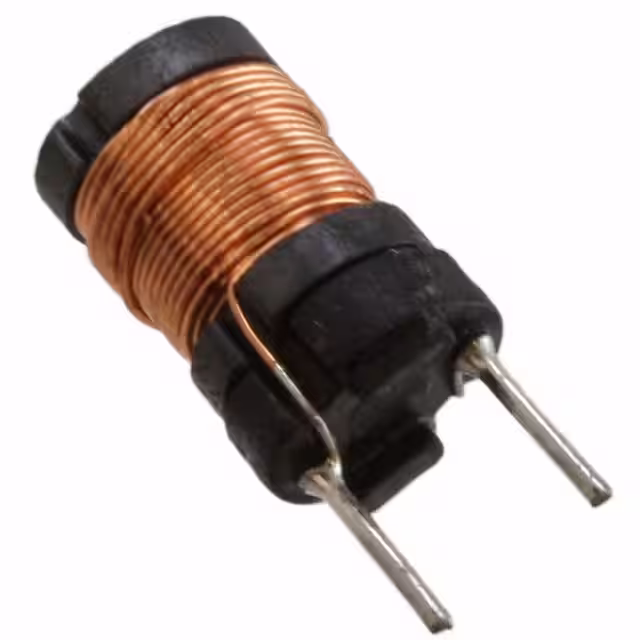

744743101FIXED IND 100UH 1.5A 300 MOHM TH |
240 | 0.37 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.5 A | 1.6A | Unshielded | 300mOhm Max | - | 5.1MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.236" (6.00mm) |
|
|
MWSA1206S-470MTFIXED IND 47UH 5A 90 MOHM SMD |
211 | 0.36 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 47 µH | ±20% | 5 A | 5.5A | Shielded | 90mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.236" (6.00mm) |
|
MWLA1265S-680MTFIXED IND 68UH 130MOHM 7800MA |
196 | 0.36 |
|
Datasheet |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 68 µH | ±20% | 4.8 A | 7.8A | Shielded | 130mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|
744743221FIXED IND 220UH 960MA 550MOHM TH |
124 | 0.37 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 960 mA | 1.2A | Unshielded | 550mOhm Max | - | 3.9MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.236" (6.00mm) |
|
7447452331FIXED IND 330UH 1.1A 470 MOHM TH |
122 | 0.37 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 1.1 A | 850mA | Unshielded | 470mOhm Max | - | 2.4MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.531" (13.50mm) |
|
|
7447452391FIXED IND 390UH 1A 520 MOHM TH |
107 | 0.37 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 1 A | 800mA | Unshielded | 520mOhm Max | - | 2.2MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.531" (13.50mm) |
|
IHLP4040EDER330M5AFIXED IND 33UH 4.4A 79.18MOHM SM |
104 | 0.37 |
|
Datasheet |
IHLP-4040ED-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 4.4 A | 4.4A | Shielded | 79.18mOhm Max | - | 6.07MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4040 | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.213" (5.40mm) |
|
NS12565T220MNVFIXED IND 22UH 3.91A 37.2MOHM SM |
5,373 | 0.36 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.91 A | 4.2A | Shielded | 37.2mOhm Max | - | 12.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
744065220FIXED IND 22UH 1.8A 135 MOHM SMD |
3,051 | 0.37 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 1.8 A | 1.9A | Shielded | 135mOhm Max | - | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
|
744065680FIXED IND 68UH 1.2A 300 MOHM SMD |
2,849 | 0.37 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±30% | 1.2 A | 1.05A | Shielded | 300mOhm Max | - | 9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
PA2607.181NLTFIXED IND 175NH 41A 0.29MOHM SMD |
2,427 | 0.34 |
|
Datasheet |
PA2607NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 175 nH | ±15% | 41 A | 62A | Shielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.406" L x 0.301" W (10.31mm x 7.65mm) | 0.299" (7.60mm) |
