Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744065001FIXED IND 1UH 8A 6.5 MOHM SMD |
2,157 | 0.37 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 8 A | 9.5A | Shielded | 6.5mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
B82477P2332M000FIXED IND 3.3UH 6.7A 14 MOHM SMD |
1,790 | 0.42 |
|
Datasheet |
B82477P2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 6.7 A | 7.2A | Shielded | 14mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
MPCH0730LR12FIXED IND 120NH 31A 0.65MOHM SMD |
1,781 | 0.38 |
|
Datasheet |
MPCH | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 120 nH | ±20% | 31 A | 32A | Shielded | 0.65mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | 0.118" (3.00mm) |
|
NS12575T470MNVFIXED IND 47UH 2.95A 61.8MOHM SM |
1,589 | 0.36 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.95 A | 3.6A | Shielded | 61.8mOhm Max | - | 6.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
|
NS12565T101MNVFIXED IND 100UH 1.81A 147.6 MOHM |
1,282 | 0.38 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.81 A | 2.23A | Shielded | 147.6mOhm Max | - | 5.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
|
744065820FIXED IND 82UH 1.1A 420 MOHM SMD |
1,025 | 0.37 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±30% | 1.1 A | 1A | Shielded | 420mOhm Max | - | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
|
744065330FIXED IND 33UH 1.6A 180 MOHM SMD |
819 | 0.37 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 1.6 A | 1.3A | Shielded | 180mOhm Max | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
|
744065151FIXED IND 150UH 850MA 680MOHM SM |
520 | 0.37 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±30% | 850 mA | 750mA | Shielded | 680mOhm Max | - | 5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
B82477P4474M000FIXED IND 470UH 860MA 640MOHM SM |
148 | 0.45 |
|
Datasheet |
B82477P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 860 mA | 950mA | Shielded | 640mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
CDRH104RT125NP-220MCFIXED IND 22UH 2.3A 70 MOHM SMD |
5,894 | 0.40 |
|
Datasheet |
CDRH104R/T125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 2.3 A | 2.56A | Shielded | 70mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.157" (4.00mm) |
|
744774212FIXED IND 120UH 490MA 930MOHM SM |
5,881 | 0.38 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 490 mA | 630mA | Unshielded | 930mOhm Max | - | 7MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|

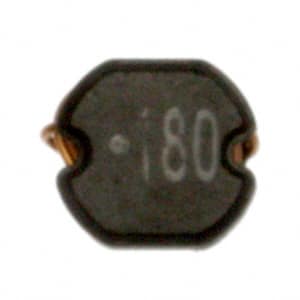

744774118FIXED IND 18UH 1.45A 150MOHM SMD |
5,506 | 0.38 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 1.45 A | 1.69A | Unshielded | 150mOhm Max | - | 21MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|

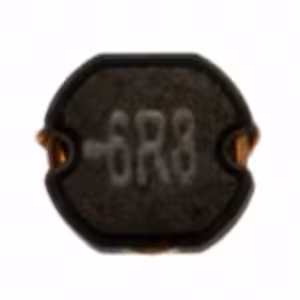

744774068FIXED IND 6.8UH 2.4A 82 MOHM SMD |
4,202 | 0.38 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 2.4 A | 5A | Unshielded | 82mOhm Max | - | 28MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
PA2607.301NLTFIXED IND 300NH 27A 0.29MOHM SMD |
2,420 | 0.37 |
|
Datasheet |
PA2607NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 300 nH | ±15% | 27 A | 32A | Shielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.406" L x 0.301" W (10.31mm x 7.65mm) | 0.287" (7.30mm) |
|

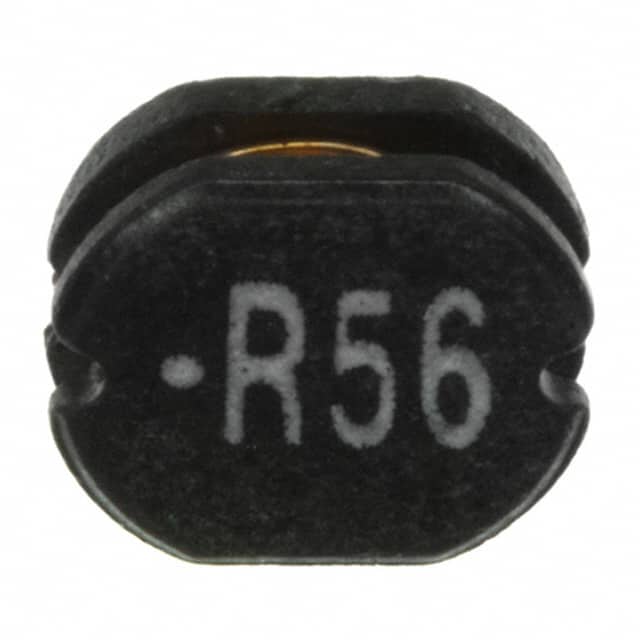

74477450056FIXED IND 560NH 6.5A 10 MOHM SMD |
2,249 | 0.38 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 nH | ±20% | 6.5 A | 6.5A | Unshielded | 10mOhm Max | - | 145MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.091" (2.30mm) |
|
DRA74-150-RFIXED IND 15UH 2.06A 67 MOHM SMD |
2,134 | 0.49 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 2.06 A | 2.36A | Shielded | 67mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
|
8250-100K-RCFIXED IND 10UH 532MA 1.27 OHM TH |
1,898 | 0.18 |
|
Datasheet |
8250 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 532 mA | 532mA | Shielded | 1.27Ohm Max | 46 @ 7.9MHz | 53MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | - |
|
ASPI-1367-2R2M-TFIXED IND 2.2UH 20A 4.2 MOHM SMD |
1,793 | 0.39 |
|
Datasheet |
ASPI-1367 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 20 A | 33A | Shielded | 4.2mOhm Max | - | - | - | -40°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.551" L x 0.508" W (14.00mm x 12.90mm) | 0.264" (6.70mm) |
|
B82464G4474M000FIXED IND 470UH 500MA 930MOHM SM |
1,648 | 0.41 |
|
Datasheet |
B82464G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 500 mA | 550mA | Shielded | 930mOhm Max | - | 2.6MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|

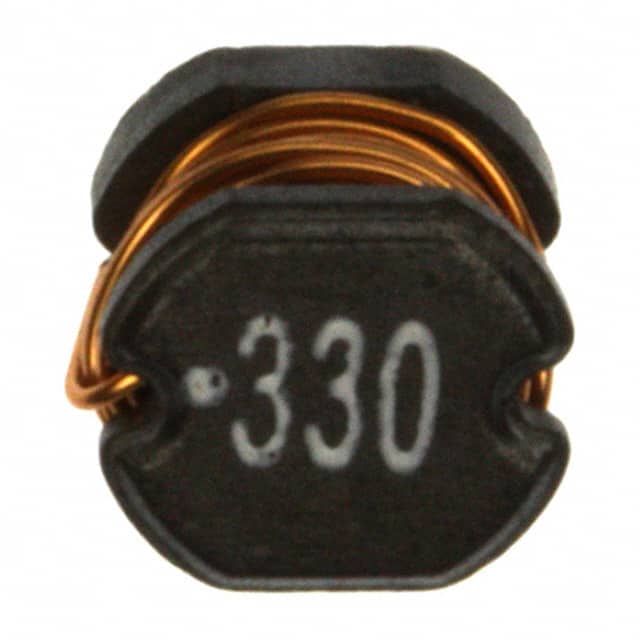

744774133FIXED IND 33UH 1.09A 230MOHM SMD |
1,448 | 0.38 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±15% | 1.09 A | 1.17A | Unshielded | 230mOhm Max | - | 14MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
