Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP7050TA-1R2MFIXED IND 1.2UH 14A 7.5 MOHM SMD |
2,585 | 0.30 |
|
Datasheet |
SRP7050TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 1.2 µH | ±20% | 14 A | 18A | Shielded | 7.5mOhm Max | 15 @ 100kHz | 45MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
5300-01-RCFIXED IND 1UH 3.3A 18 MOHM TH |
2,298 | 0.29 |
|
Datasheet |
5300 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 3.3 A | 3A | Unshielded | 18mOhm Max | - | 190MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
5300-17-RCFIXED IND 22UH 1A 190 MOHM TH |
2,133 | 0.29 |
|
Datasheet |
5300 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 1 A | 640mA | Unshielded | 190mOhm Max | - | 8.4MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
|
SRP7050TA-R60MFIXED IND 600NH 19A 4.3 MOHM SMD |
2,115 | 0.30 |
|
Datasheet |
SRP7050TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 600 nH | ±20% | 19 A | 25A | Shielded | 4.3mOhm Max | 10 @ 100kHz | 80MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
NS12565T680MNFIXED IND 68UH 2.3A 93 MOHM SMD |
2,096 | 0.29 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2.3 A | 2.78A | Shielded | 93mOhm Max | - | 6.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
|
NS12565T151MNFIXED IND 150UH 1.54A 207.6 MOHM |
2,092 | 0.29 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.54 A | 1.84A | Shielded | 207.6mOhm Max | - | 4.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
IHLP2020CZER2R2M5AFIXED IND 2.2UH 6.6A 26MOHM SMD |
2,068 | 0.29 |
|
Datasheet |
IHLP-2020CZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 6.6 A | 6.3A | Shielded | 26mOhm Max | - | 39.8MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.204" L x 0.204" W (5.18mm x 5.18mm) | 0.118" (3.00mm) |
|
5300-25-TR-RCFIXED IND 100UH 550MA 670MOHM TH |
1,843 | 0.25 |
|
Datasheet |
5300 | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 550 mA | 300mA | Unshielded | 670mOhm Max | - | 3.9MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
|
5300-25-RCFIXED IND 100UH 550MA 670MOHM TH |
1,814 | 0.29 |
|
Datasheet |
5300 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 550 mA | 300mA | Unshielded | 670mOhm Max | - | 3.9MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
|
IHLP2020CZER6R8M5AFIXED IND 6.8UH 3.2A 111MOHM SMD |
1,796 | 0.29 |
|
Datasheet |
IHLP-2020CZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 3.2 A | 2.2A | Shielded | 111mOhm Max | - | 18.8MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.204" L x 0.204" W (5.18mm x 5.18mm) | 0.118" (3.00mm) |
|

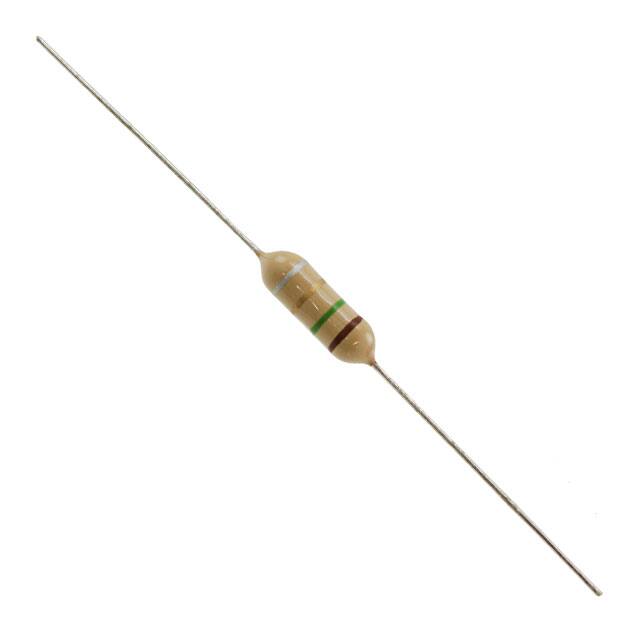

5300-03-RCFIXED IND 1.5UH 3.1A 20 MOHM TH |
1,649 | 0.29 |
|
Datasheet |
5300 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | 3.1 A | 2.5A | Unshielded | 20mOhm Max | - | 160MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
DR127-1R5-RFIXED IND 1.5UH 13.5A 3.41 MOHM |
1,063 | 0.29 |
|
Datasheet |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 13.5 A | 31.1A | Shielded | 3.41mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
SBC9-1R0-982FIXED IND 1UH 9.8A 10 MOHM TH |
1,061 | 0.28 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 9.8 A | 31.1A | Unshielded | 10mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.472" (12.00mm) |
|
|
IHLP2020CZER100M5AFIXED IND 10UH 2.8A 138MOHM SMD |
959 | 0.29 |
|
Datasheet |
IHLP-2020CZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 2.8 A | 1.6A | Shielded | 138mOhm Max | - | 15.9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.204" L x 0.204" W (5.18mm x 5.18mm) | 0.118" (3.00mm) |
|
B82477G4102M000FIXED IND 1UH 9.8A 7 MOHM SMD |
958 | 0.32 |
|
Datasheet |
B82477G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 9.8 A | 15A | Shielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.315" (8.00mm) |
|
5300-24-RCFIXED IND 82UH 580MA 600 MOHM TH |
952 | 0.29 |
|
Datasheet |
5300 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 580 mA | 330mA | Unshielded | 600mOhm Max | - | 4.1MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|

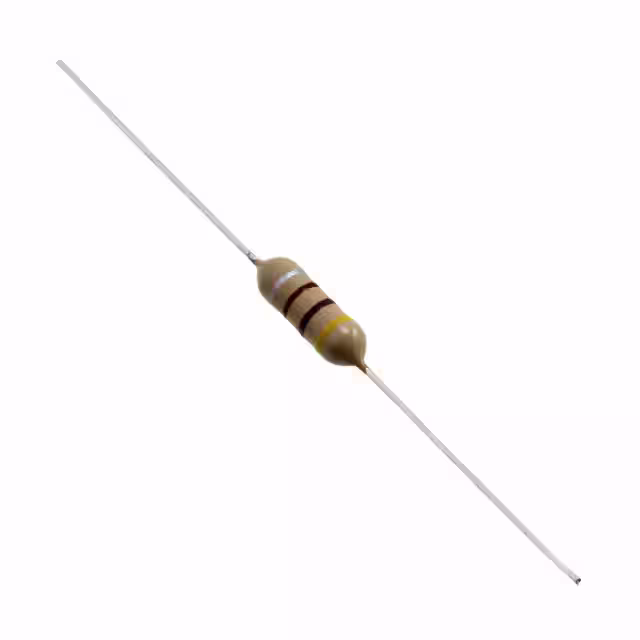

5300-33-RCFIXED IND 470UH 240MA 3.4 OHM TH |
945 | 0.29 |
|
Datasheet |
5300 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 240 mA | 140mA | Unshielded | 3.4Ohm Max | - | 1.4MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
5300-19-RCFIXED IND 33UH 910MA 240 MOHM TH |
902 | 0.29 |
|
Datasheet |
5300 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 910 mA | 530mA | Unshielded | 240mOhm Max | - | 7.6MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
|
SRP7050TA-R82MFIXED IND 820NH 16.5A 4.9MOHM SM |
890 | 0.30 |
|
Datasheet |
SRP7050TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 820 nH | ±20% | 16.5 A | 22A | Shielded | 4.9mOhm Max | 10 @ 100kHz | 70MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
5300-49-RCFIXED IND 10MH 52MA 75 OHM TH |
816 | 0.29 |
|
Datasheet |
5300 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 52 mA | 30mA | Unshielded | 75Ohm Max | - | 270kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
