Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP2020CZER1R0M5AFIXED IND 1UH 10.8A 12.1MOHM SMD |
1,567 | 0.29 |
|
Datasheet |
IHLP-2020CZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 10.8 A | 8A | Shielded | 12.1mOhm Max | - | 60.7MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.204" L x 0.204" W (5.18mm x 5.18mm) | 0.118" (3.00mm) |
|
IMC1812ER330KFIXED IND 33UH 160MA 4 OHM SMD |
1,404 | 0.28 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 33 µH | ±10% | 160 mA | - | Unshielded | 4Ohm Max | 50 @ 2.52MHz | 11MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IHLP2020CZERR22M01FIXED IND 220NH 15.5A 4.52 MOHM |
1,394 | 0.44 |
|
Datasheet |
IHLP-2020CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 15.5 A | 21A | Shielded | 4.52mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
SPM3012T-4R7M-LRFIXED IND 4.7UH 1.5A 266.3 MOHM |
815 | 0.28 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 1.5 A | 2.4A | Shielded | 266.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.047" (1.20mm) |
|
IHLP1212AEERR82M11FIXED IND 820NH 4.9A 26 MOHM SMD |
7,795 | 0.28 |
|
Datasheet |
IHLP-1212AE-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 820 nH | ±20% | 4.9 A | 5.5A | Shielded | 26mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.142" L x 0.118" W (3.60mm x 3.00mm) | 0.059" (1.50mm) |
|
SRR1260A-220MFIXED IND 22UH 4A 43 MOHM SMD |
5,749 | 0.29 |
|
Datasheet |
SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 4 A | 3.7A | Shielded | 43mOhm Max | 29 @ 2.52MHz | 13.4MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
SRR1260A-1R0YFIXED IND 1UH 9.4A 7.8 MOHM SMD |
4,894 | 0.29 |
|
Datasheet |
SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 9.4 A | 10A | Shielded | 7.8mOhm Max | 26 @ 7.96MHz | 100MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|

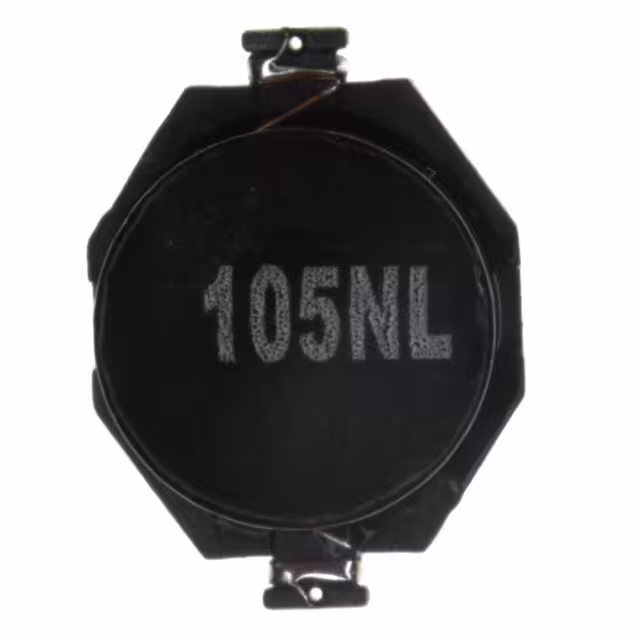

P0752.105NLTFIXED IND 1MH 300MA 3.3 OHM SMD |
4,411 | 0.29 |
|
Datasheet |
P0752NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 300 mA | 300mA | Unshielded | 3.3Ohm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
IHLP2525CZER5R6M8AFIXED IND 5.6UH 5.3A 45.6MOHM SM |
4,264 | 0.29 |
|
Datasheet |
IHLP-2525CZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±20% | 5.3 A | 4.8A | Shielded | 45.6mOhm Max | - | 23MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
SRR1260A-120MFIXED IND 12UH 5.2A 23 MOHM SMD |
4,170 | 0.26 |
|
Datasheet |
SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 5.2 A | 5A | Shielded | 23mOhm Max | 27 @ 2.52MHz | 19.4MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
SRR1260A-100MFIXED IND 10UH 5.5A 20 MOHM SMD |
4,101 | 0.29 |
|
Datasheet |
SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 5.5 A | 5.5A | Shielded | 20mOhm Max | 32 @ 2.52MHz | 21MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
SRR1260A-5R6YFIXED IND 5.6UH 6.7A 16.2MOHM SM |
3,748 | 0.29 |
|
Datasheet |
SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±30% | 6.7 A | 6.9A | Shielded | 16.2mOhm Max | 19 @ 7.96MHz | 33MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
SRR1260A-331KFIXED IND 330UH 1.15A 580MOHM SM |
3,081 | 0.29 |
|
Datasheet |
SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 1.15 A | 1.1A | Shielded | 580mOhm Max | 22 @ 796kHz | 3.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
IHLP2525BDER3R3M01FIXED IND 3.3UH 5A 51.6 MOHM SMD |
2,652 | 0.28 |
|
Datasheet |
IHLP-2525BD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 5 A | 13A | Shielded | 51.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.094" (2.40mm) |
|
MPEV1D0630L150FIXED IND 15UH 3.3A 130.2MOHM SM |
2,509 | 0.28 |
|
Datasheet |
METCOM MPEV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 15 µH | ±20% | 3.3 A | 4A | Shielded | 130.2mOhm Max | - | 13MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.118" (3.00mm) |
|
|
SRR1260A-6R8YFIXED IND 6.8UH 6.3A 18 MOHM SMD |
2,320 | 0.29 |
|
Datasheet |
SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 6.3 A | 6.5A | Shielded | 18mOhm Max | 20 @ 7.96MHz | 28.2MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
IHLP2525BDER8R2M01FIXED IND 8.2UH 3A 106 MOHM SMD |
2,220 | 0.28 |
|
Datasheet |
IHLP-2525BD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 3 A | 8A | Shielded | 106mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.094" (2.40mm) |
|
|
SRR1260A-8R2YFIXED IND 8.2UH 5.7A 19.5MOHM SM |
2,206 | 0.29 |
|
Datasheet |
SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 5.7 A | 5.8A | Shielded | 19.5mOhm Max | 18 @ 7.96MHz | 24MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
SRP7028A-R15YFIXED IND 150NH 27A 1.9 MOHM SMD |
2,088 | 0.29 |
|
Datasheet |
SRP7028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 150 nH | ±30% | 27 A | 45A | Shielded | 1.9mOhm Max | 5 @ 100kHz | 220MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
IHLP2525CZER6R8M51FIXED IND 6.8UH 4.4A 57.6MOHM SM |
2,066 | 0.27 |
|
Datasheet |
IHLP-2525CZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 4.4 A | 4.4A | Shielded | 57.6mOhm Max | - | 19.6MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
