Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR1260A-221KFIXED IND 220UH 1.38A 380MOHM SM |
2,018 | 0.29 |
|
Datasheet |
SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 1.38 A | 1.3A | Shielded | 380mOhm Max | 22 @ 796kHz | 4.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
IHLP2020CZER1R5MA1IHLP-2020CZ-A1 1.5 20% ER E3 |
1,974 | 0.28 |
|
Datasheet |
IHLP-2020CZ-A1 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1.5 µH | ±20% | 7.2 A | 11A | Shielded | 20.7mOhm Max | - | 42MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
SRP7028A-R33MFIXED IND 330NH 20A 3.9 MOHM SMD |
1,829 | 0.29 |
|
Datasheet |
SRP7028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 330 nH | ±20% | 20 A | 32A | Shielded | 3.9mOhm Max | 10 @ 100kHz | 140MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SRP7028A-2R5MFIXED IND 2.5UH 7A 22 MOHM SMD |
1,798 | 0.29 |
|
Datasheet |
SRP7028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 2.5 µH | ±20% | 7 A | 13A | Shielded | 22mOhm Max | 20 @ 100kHz | 30MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SRR1260A-150MFIXED IND 15UH 5A 27 MOHM SMD |
1,497 | 0.29 |
|
Datasheet |
SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 5 A | 4.6A | Shielded | 27mOhm Max | 25 @ 2.52MHz | 17.6MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
SRR1260A-151KFIXED IND 150UH 1.55A 260MOHM SM |
1,330 | 0.29 |
|
Datasheet |
SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 1.55 A | 1.55A | Shielded | 260mOhm Max | 20 @ 796kHz | 5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
SRP7028A-150MFIXED IND 15UH 3A 123 MOHM SMD |
1,213 | 0.29 |
|
Datasheet |
SRP7028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 15 µH | ±20% | 3 A | 4A | Shielded | 123mOhm Max | 20 @ 100kHz | 12MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
MPEV1D0630L220FIXED IND 22UH 2.7A 186.3MOHM SM |
1,020 | 0.28 |
|
Datasheet |
METCOM MPEV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 22 µH | ±20% | 2.7 A | 3.5A | Shielded | 186.3mOhm Max | - | 9.6MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.118" (3.00mm) |
|
|
SRR1260A-101MFIXED IND 100UH 1.7A 180MOHM SMD |
973 | 0.29 |
|
Datasheet |
SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.7 A | 1.7A | Shielded | 180mOhm Max | 26 @ 796kHz | 6.07MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
VCMT053T-2R2MN5FIXED IND 2.2UH 6.4A 23 MOHM SMD |
690 | 0.29 |
|
Datasheet |
VCMT053T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 2.2 µH | ±20% | 6.4 A | 4.7A | Unshielded | 23mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.215" L x 0.207" W (5.45mm x 5.25mm) | 0.118" (3.00mm) |
|
IHLP2525BDER1R5M01FIXED IND 1.5UH 7.5A 21.2MOHM SM |
641 | 0.28 |
|
Datasheet |
IHLP-2525BD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 7.5 A | 15A | Shielded | 21.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.094" (2.40mm) |
|
|
SRR1260A-2R2YFIXED IND 2.2UH 8.2A 10.5MOHM SM |
624 | 0.29 |
|
Datasheet |
SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 8.2 A | 8.5A | Shielded | 10.5mOhm Max | 22 @ 7.96MHz | 70MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
SRR1260A-471KFIXED IND 470UH 950MA 820MOHM SM |
539 | 0.29 |
|
Datasheet |
SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 950 mA | 900mA | Shielded | 820mOhm Max | 18 @ 796kHz | 2.6MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
SPM4030T-1R0MFIXED IND 1UH 8A 15.51 MOHM SMD |
423 | 0.30 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 8 A | 4.6A | Shielded | 15.51mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.165" L x 0.157" W (4.20mm x 4.00mm) | 0.118" (3.00mm) |
|

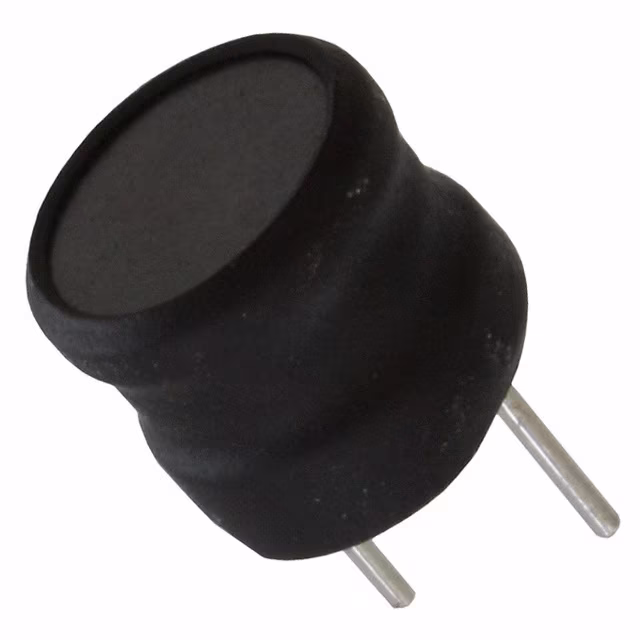

744732102FIXED IND 1MH 330MA 3.4 OHM TH |
233 | 0.28 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 330 mA | 600mA | Unshielded | 3.4Ohm Max | - | 1.8MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.295" (7.50mm) |
|
744732331FIXED IND 330UH 600MA 1.2 OHM TH |
230 | 0.28 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 600 mA | 1A | Unshielded | 1.2Ohm Max | - | 3.9MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
|
744732221FIXED IND 220UH 750MA 700MOHM TH |
145 | 0.28 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 750 mA | 1.2A | Unshielded | 700mOhm Max | - | 4.8MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
|
VCMT053T-150MN5FIXED IND 15UH 2A 196 MOHM SMD |
7,898 | 0.29 |
|
Datasheet |
VCMT053T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 15 µH | ±20% | 2 A | 1.9A | Unshielded | 196mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.215" L x 0.207" W (5.45mm x 5.25mm) | 0.118" (3.00mm) |
|
CDRH8D58/LDNP-680NCFIXED IND 68UH 1.7A 130 MOHM SMD |
7,052 | 0.30 |
|
Datasheet |
CDRH8D58/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±30% | 1.7 A | 1A | Shielded | 130mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.236" (6.00mm) |
|
PA5003.182NLTFIXED IND 1.8UH 10.1A 12.7 MOHM |
4,170 | 0.40 |
|
Datasheet |
PA5003.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 1.8 µH | ±20% | 10.1 A | 12.3A | Shielded | 12.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
