Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMLE063T-R15MS0R907FIXED IND 150NH 38A 0.9MOHM SMD |
1,504 | 0.30 |
|
Datasheet |
CMLE063T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 150 nH | ±20% | 38 A | 41A | Shielded | 0.9mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.260" W (7.25mm x 6.60mm) | 0.118" (3.00mm) |
|
78404054470WE-LQSA SMT SEMI-SHIELDED POWER |
1,500 | - |
|
Datasheet |
WE-LQSA | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 1.19 A | 1.2A | Shielded | 348mOhm Max | - | 10MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
78404054100WE-LQSA SMT SEMI-SHIELDED POWER |
1,445 | - |
|
Datasheet |
WE-LQSA | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 2.45 A | 2.5A | Shielded | 82mOhm Max | - | 26MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
78404064330WE-LQSA SMT SEMI-SHIELDED POWER |
1,422 | - |
|
Datasheet |
WE-LQSA | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 1.7 A | 2A | Shielded | 168mOhm Max | - | 12MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.181" (4.60mm) |
|
|
78404054101WE-LQSA SMT SEMI-SHIELDED POWER |
1,329 | - |
|
Datasheet |
WE-LQSA | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 820 mA | 820mA | Shielded | 720mOhm Max | - | 7MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
78404054068WE-LQSA SMT SEMI-SHIELDED POWER |
1,328 | - |
|
Datasheet |
WE-LQSA | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 3.01 A | 3.2A | Shielded | 52mOhm Max | - | 35MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
B82477G4223M000FIXED IND 22UH 3.6A 38 MOHM SMD |
1,299 | 0.32 |
|
Datasheet |
B82477G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.6 A | 4.25A | Shielded | 38mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.484" L x 0.484" W (12.30mm x 12.30mm) | 0.236" (6.00mm) |
|
|
78404064470WE-LQSA SMT SEMI-SHIELDED POWER |
1,295 | - |
|
Datasheet |
WE-LQSA | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 1.4 A | 1.6A | Shielded | 252mOhm Max | - | 10MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.181" (4.60mm) |
|
VCMT063T-6R8MN5TFIXED IND 6.8UH 5.5A 46.8MOHM SM |
1,279 | 0.30 |
|
Datasheet |
VCMT063T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 6.8 µH | ±20% | 5.5 A | 4.5A | Unshielded | 46.8mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.274" L x 0.260" W (6.95mm x 6.60mm) | 0.118" (3.00mm) |
|
|
78404054047WE-LQSA SMT SEMI-SHIELDED POWER |
1,239 | - |
|
Datasheet |
WE-LQSA | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 3.64 A | 3.8A | Shielded | 36mOhm Max | - | 43MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
78404064100WE-LQSA SMT SEMI-SHIELDED POWER |
1,229 | - |
|
Datasheet |
WE-LQSA | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 2.8 A | 3.5A | Shielded | 58mOhm Max | - | 22MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.181" (4.60mm) |
|
9230-94-RCFIXED IND 100NH 1.1A 70 MOHM TH |
1,213 | 0.30 |
|
Datasheet |
9230 | Axial | Bulk | Active | Molded | Phenolic | 100 nH | ±10% | 1.1 A | - | Unshielded | 70mOhm Max | 40 @ 25MHz | 690MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
.jpg)
|
ASPI-5050LR-100M-TIND 10UH 5A 43.0M |
1,190 | 0.34 |
|
Datasheet |
ASPI-5050LR | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 10 µH | ±20% | 5 A | 5.4A | Shielded | 43mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.197" (5.00mm) |
|
|
78404054033WE-LQSA SMT SEMI-SHIELDED POWER |
1,169 | - |
|
Datasheet |
WE-LQSA | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 4.06 A | 4.3A | Shielded | 29mOhm Max | - | 48MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
78404064022WE-LQSA SMT SEMI-SHIELDED POWER |
1,166 | - |
|
Datasheet |
WE-LQSA | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 5.3 A | 8.1A | Shielded | 17mOhm Max | - | 60MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.181" (4.60mm) |
|
B82462A4682M000FIXED IND 6.8UH 1.4A 100MOHM SMD |
1,136 | 0.32 |
|
Datasheet |
B82462-A4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.4 A | 2.3A | Unshielded | 100mOhm Max | - | 40MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
SLF12555T-100M3R4-PFFIXED IND 10UH 4.3A 25.8MOHM SMD |
1,078 | 0.29 |
|
Datasheet |
SLF | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4.3 A | 3.4A | Shielded | 25.8mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.228" (5.80mm) |
|

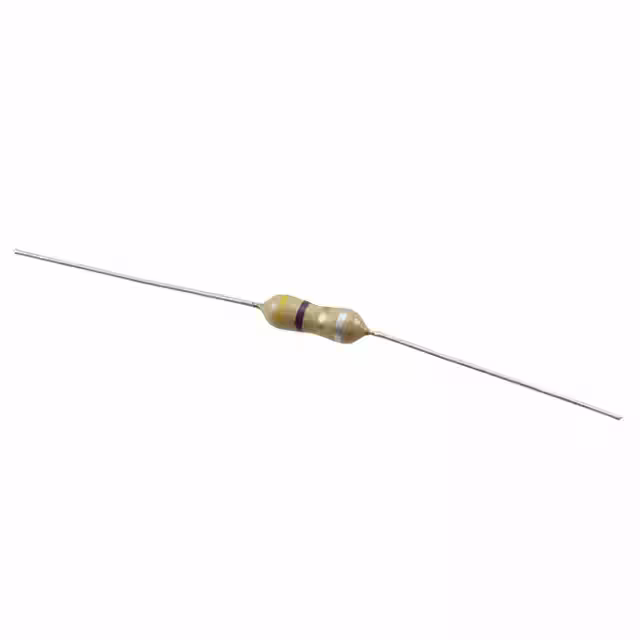

5300-09-RCFIXED IND 4.7UH 1.7A 68 MOHM TH |
1,041 | 0.29 |
|
Datasheet |
5300 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 1.7 A | 1.4A | Unshielded | 68mOhm Max | - | 86MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
|
9230-52-RCFIXED IND 22UH 190MA 3.3 OHM TH |
1,027 | 0.30 |
|
Datasheet |
9230 | Axial | Bulk | Active | Molded | Ferrite | 22 µH | ±10% | 190 mA | - | Unshielded | 3.3Ohm Max | 50 @ 2.5MHz | 25MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
CLF10040T-4R7N-HFIXED IND 4.7UH 5.4A 14.5MOHM SM |
904 | 0.29 |
|
Datasheet |
CLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 5.4 A | 4.2A | Shielded | 14.5mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.161" (4.10mm) |
