Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TYA2520122R2M-10FIXED IND 2.2UH 1.9A 120MOHM SMD Laird-Signal Integrity Products |
9,318 | 0.30 |
|
Datasheet |
TYA252012 | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 1.9 A | 2.6A | Shielded | 120mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1007 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.053" (1.35mm) |
|
|
TYA30154R7M-10FIXED IND 4.7UH 1.7A 185MOHM SMD Laird-Signal Integrity Products |
13,289 | 0.33 |
|
Datasheet |
TYA3015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 1.7 A | 2.5A | Shielded | 185mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.065" (1.65mm) |
|
|
TYA2520104R7M-10FIXED IND 4.7UH 1A 290 MOHM SMD Laird-Signal Integrity Products |
29,293 | 0.30 |
|
Datasheet |
TYA252010 | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 1 A | 1.3A | Shielded | 290mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1007 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.045" (1.15mm) |
-MGV-Series.jpg)
|

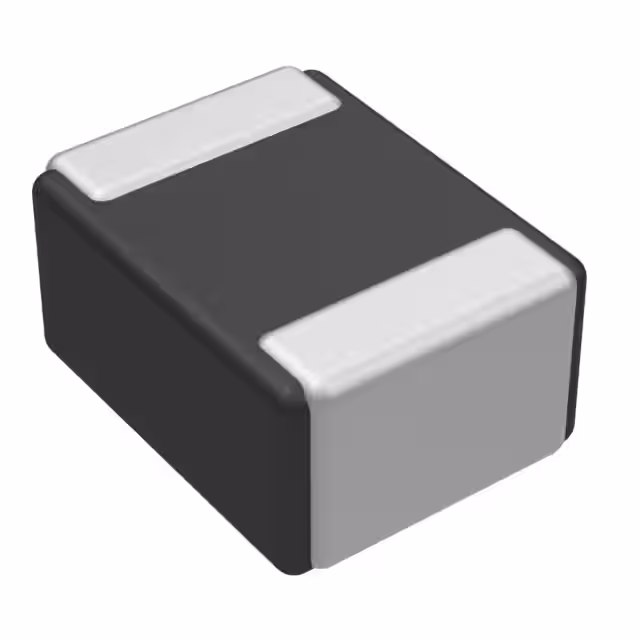

MGV2016102R2M-10FIXED IND 2.2UH 1.7A 150MOHM SMD Laird-Signal Integrity Products |
17,504 | 0.29 |
|
Datasheet |
MGV | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 1.7 A | 1.9A | Shielded | 150mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
TYA2016102R2M-10FIXED IND 2.2UH 1.4A 180MOHM SMD Laird-Signal Integrity Products |
13,084 | 0.30 |
|
Datasheet |
TYA201610 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 1.4 A | 1.9A | Shielded | 180mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.045" (1.15mm) |
|
|
TYA2016104R7M-10FIXED IND 4.7UH 900MA 425MOHM SM Laird-Signal Integrity Products |
12,497 | 0.30 |
|
Datasheet |
TYA201610 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 900 mA | 1.1A | Shielded | 425mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.045" (1.15mm) |
|
|
TYA2520126R8M-10FIXED IND 6.8UH 950MA 366MOHM SM Laird-Signal Integrity Products |
9,193 | 0.30 |
|
Datasheet |
TYA252012 | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 950 mA | 1.2A | Shielded | 366mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1007 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.053" (1.35mm) |
|
|
TYA2520124R7M-10FIXED IND 4.7UH 1.25A 260MOHM SM Laird-Signal Integrity Products |
7,678 | 0.30 |
|
Datasheet |
TYA252012 | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 1.25 A | 1.6A | Shielded | 260mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1007 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.053" (1.35mm) |
|
|
TYA201610100M-10FIXED IND 10UH 600MA 875MOHM SMD Laird-Signal Integrity Products |
6,306 | 0.30 |
|
Datasheet |
TYA201610 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 600 mA | 800mA | Shielded | 875mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.045" (1.15mm) |
|
|
TYA30153R3M-10FIXED IND 3.3UH 2A 150 MOHM SMD Laird-Signal Integrity Products |
5,033 | 0.33 |
|
Datasheet |
TYA3015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 2 A | 3.4A | Shielded | 150mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.065" (1.65mm) |
