Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TYS5040150M-10FIXED IND 15UH 2A 86 MOHM SMD Laird-Signal Integrity Products |
20,993 | 0.39 |
|
Datasheet |
TYS5040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 2 A | 2A | Shielded | 86mOhm Max | - | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.165" (4.20mm) |
|
TYA3015150M-10FIXED IND 15UH 1.1A 610 MOHM SMD Laird-Signal Integrity Products |
12,384 | 0.33 |
|
Datasheet |
TYA3015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 15 µH | ±20% | 1.1 A | 1.45A | Shielded | 610mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.065" (1.65mm) |
-Top-MGV-Series.jpg)
|

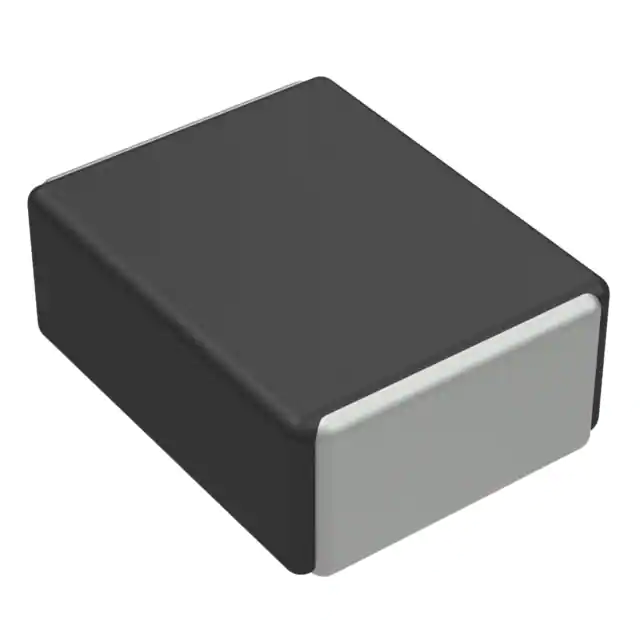

MGV252012S2R2M-10FIXED IND 2.2UH 2.5A 89MOHM SMD Laird-Signal Integrity Products |
15,650 | 0.13 |
|
Datasheet |
MGV | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 2.5 A | 3.5A | Shielded | 89mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|

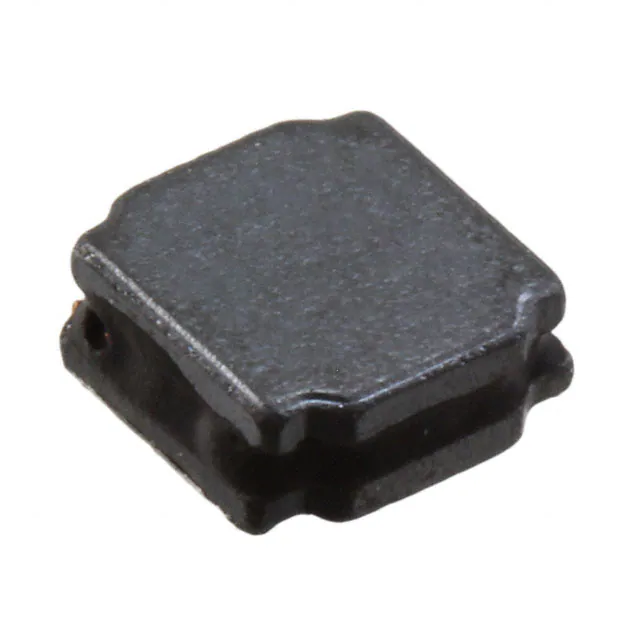

TYS40181R0N-10FIXED IND 1UH 2A 25 MOHM SMD Laird-Signal Integrity Products |
54,271 | 0.33 |
|
Datasheet |
TYS4018 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±30% | 2 A | 4.8A | Shielded | 25mOhm Max | - | 80MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
TYA40206R8M-10FIXED IND 6.8UH 2.4A 160MOHM SMD Laird-Signal Integrity Products |
14,529 | 0.36 |
|
Datasheet |
TYA4020 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 2.4 A | 3A | Shielded | 160mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" (2.10mm) |
|
|
TYA40202R2M-10FIXED IND 2.2UH 4A 56 MOHM SMD Laird-Signal Integrity Products |
13,409 | 0.36 |
|
Datasheet |
TYA4020 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 4 A | 6A | Shielded | 56mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" (2.10mm) |
|

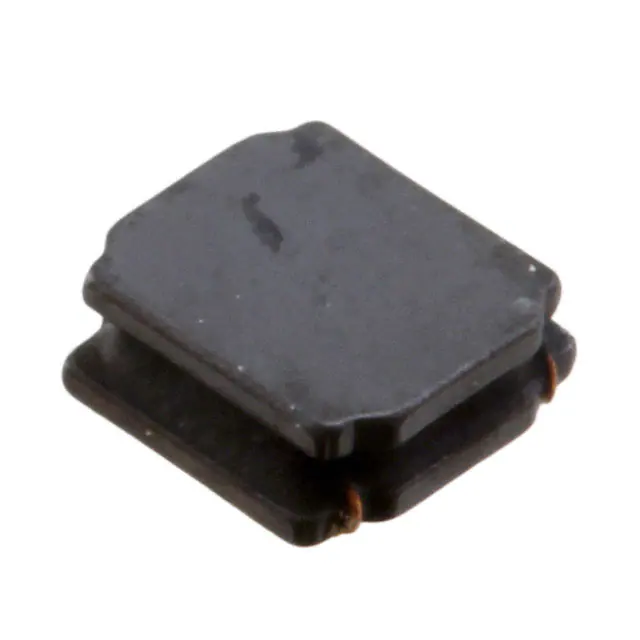

TYS3012101M-10FIXED IND 100UH 250MA 2.86OHM SM Laird-Signal Integrity Products |
10,329 | 0.13 |
|
Datasheet |
TYS3012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 250 mA | 210mA | Shielded | 3.718Ohm Max | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.055" (1.40mm) |
|
|
TYA40204R7M-10FIXED IND 4.7UH 2.85A 115MOHM SM Laird-Signal Integrity Products |
29,610 | 0.36 |
|
Datasheet |
TYA4020 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 2.85 A | 4A | Shielded | 115mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" (2.10mm) |
|
|
TYA4020100M-10FIXED IND 10UH 2A 220 MOHM SMD Laird-Signal Integrity Products |
22,462 | 0.36 |
|
Datasheet |
TYA4020 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 2 A | 2.8A | Shielded | 220mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" (2.10mm) |
|

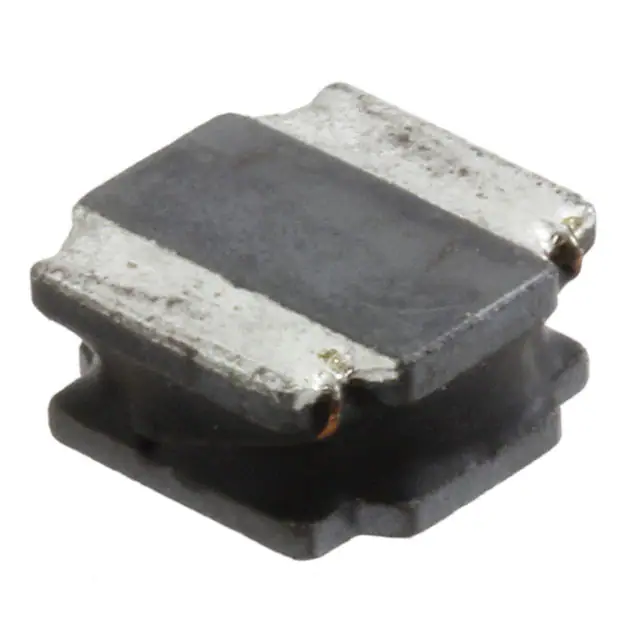

TYS8040100M-10FIXED IND 10UH 3.3A 29 MOHM SMD Laird-Signal Integrity Products |
11,626 | 0.56 |
|
Datasheet |
TYS8040 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 3.3 A | 3.6A | Shielded | 29mOhm Max | - | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
