Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

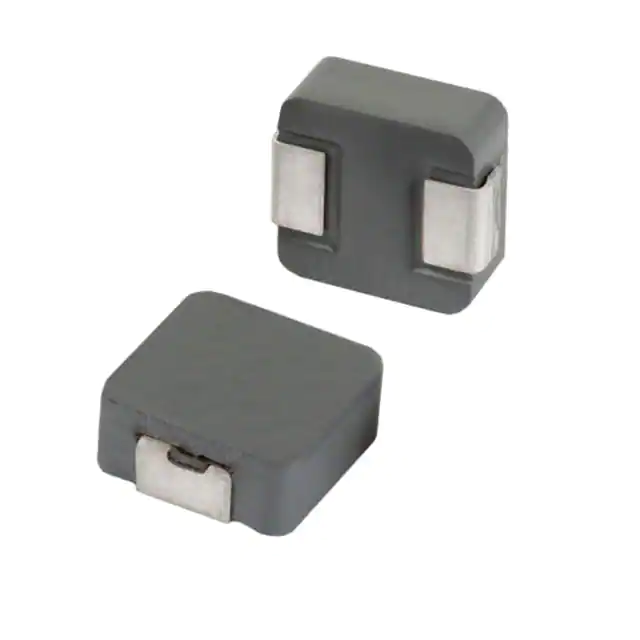

MGV1707220M-10FIXED IND 22UH 12A 26.5MOHM SMD Laird-Signal Integrity Products |
4,628 | 3.08 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 12 A | 23A | Shielded | 26.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | 0.276" (7.00mm) |
|
|
MGV1707330M-10FIXED IND 33UH 10.7A 44MOHM SMD Laird-Signal Integrity Products |
4,279 | 3.08 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 10.7 A | 20A | Shielded | 44mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | 0.276" (7.00mm) |
|
|
MGV1707470M-10FIXED IND 47UH 8.7A 55 MOHM SMD Laird-Signal Integrity Products |
2,511 | 3.08 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 47 µH | ±20% | 8.7 A | 16A | Shielded | 55mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | 0.276" (7.00mm) |
|
|
MGV1707560M-10FIXED IND 56UH 7.8A 62 MOHM SMD Laird-Signal Integrity Products |
2,720 | 3.08 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 56 µH | ±20% | 7.8 A | 15A | Shielded | 62mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | 0.276" (7.00mm) |
|
|
MGV1707680M-10FIXED IND 68UH 7A 80 MOHM SMD Laird-Signal Integrity Products |
1,065 | 3.08 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 68 µH | ±20% | 7 A | 13A | Shielded | 80mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | 0.276" (7.00mm) |
|
|
MGV1707820M-10FIXED IND 82UH 5.7A 100MOHM SMD Laird-Signal Integrity Products |
4,166 | 3.08 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 82 µH | ±20% | 5.7 A | 12A | Shielded | 100mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | 0.276" (7.00mm) |
|
IC1206B221R-10FIXED IND 220NH SMD Laird-Signal Integrity Products |
3,030 | - |
|
Datasheet |
IC | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 220 nH | ±10% | - | - | Unshielded | - | - | - | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.055" (1.40mm) |
|
|
TYS60451R3N-10FIXED IND 1.3UH 5.4A 10 MOHM SMD Laird-Signal Integrity Products |
1,549 | 0.16 |
|
Datasheet |
TYS6045 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.3 µH | ±30% | 5.4 A | 8.35A | Shielded | 10mOhm | - | 100MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
|
|
TYS60451R8N-10FIXED IND 1.8UH 4.95A 12MOHM SMD Laird-Signal Integrity Products |
1,653 | 0.16 |
|
Datasheet |
TYS6045 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.8 µH | ±30% | 4.95 A | 7.6A | Shielded | 12mOhm | - | 74MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
