Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1XC0394-2T0-10FIXED IND 6UH 19A 4 MOHM TH Laird-Signal Integrity Products |
2,963 | 2.66 |
|
Datasheet |
- | Radial, Horizontal Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6 µH | ±25% | 19 A | - | Unshielded | 4mOhm | - | - | - | -40°C ~ 150°C | 10 kHz | - | Through Hole | - | 0.630" Dia x 1.181" L (16.00mm x 30.00mm) | - |
|

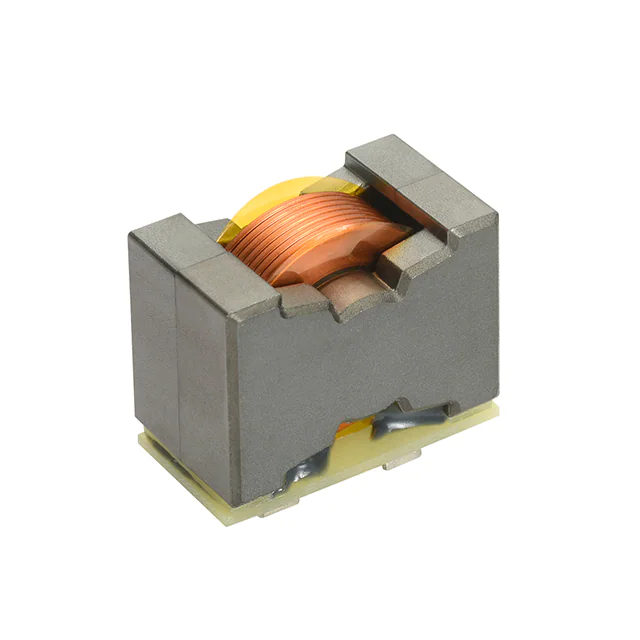

LDZ2817220K-10FIXED IND 22UH 26A 3 MOHM TH Laird-Signal Integrity Products |
1,815 | - |
|
Datasheet |
LDZ2817 | Radial, Vertical, 4 Leads (Open) | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 26 A | 16.4A | Shielded | 3mOhm Max | - | - | - | -40°C ~ 125°C | 300 kHz | - | Through Hole | - | 1.063" L x 0.669" W (27.00mm x 17.00mm) | 0.906" (23.00mm) |
|
|
LDZ2817330K-10FIXED IND 33UH 26A 3 MOHM TH Laird-Signal Integrity Products |
4,958 | - |
|
Datasheet |
LDZ2817 | Radial, Vertical, 4 Leads (Open) | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 26 A | 10.3A | Shielded | 3mOhm Max | - | - | - | -40°C ~ 125°C | 300 kHz | - | Through Hole | - | 1.063" L x 0.669" W (27.00mm x 17.00mm) | 0.906" (23.00mm) |
|
|
LDZ28176R8K-10FIXED IND 6.8UH 26A 3 MOHM TH Laird-Signal Integrity Products |
4,199 | - |
|
Datasheet |
LDZ2817 | Radial, Vertical, 4 Leads (Open) | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 26 A | 56A | Shielded | 3mOhm Max | - | - | - | -40°C ~ 125°C | 300 kHz | - | Through Hole | - | 1.063" L x 0.669" W (27.00mm x 17.00mm) | 0.906" (23.00mm) |
|
MGV17071R5M-10FIXED IND 1.5UH 47A 2.5MOHM SMD Laird-Signal Integrity Products |
4,234 | 3.08 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 47 A | 65A | Shielded | 2.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | 0.276" (7.00mm) |
|
|
MGV17072R2M-10FIXED IND 2.2UH 43.5A 2.7MOHM SM Laird-Signal Integrity Products |
1,697 | 3.08 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 43.5 A | 62A | Shielded | 2.7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | 0.276" (7.00mm) |
|
|
MGV17074R7M-10FIXED IND 4.7UH 25A 5.5MOHM SMD Laird-Signal Integrity Products |
2,785 | 3.08 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 25 A | 50A | Shielded | 5.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | 0.276" (7.00mm) |
|
|
MGV17076R8M-10FIXED IND 6.8UH 19A 9.2MOHM SMD Laird-Signal Integrity Products |
3,836 | 3.08 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 19 A | 39A | Shielded | 9.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | 0.276" (7.00mm) |
|
|
MGV1707100M-10FIXED IND 10UH 16.5A 13MOHM SMD Laird-Signal Integrity Products |
1,826 | 3.08 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 16.5 A | 29A | Shielded | 13mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | 0.276" (7.00mm) |
|
|
MGV1707150M-10FIXED IND 15UH 12.5A 20.5MOHM SM Laird-Signal Integrity Products |
4,621 | 3.08 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 12.5 A | 27A | Shielded | 20.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | 0.276" (7.00mm) |
