Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

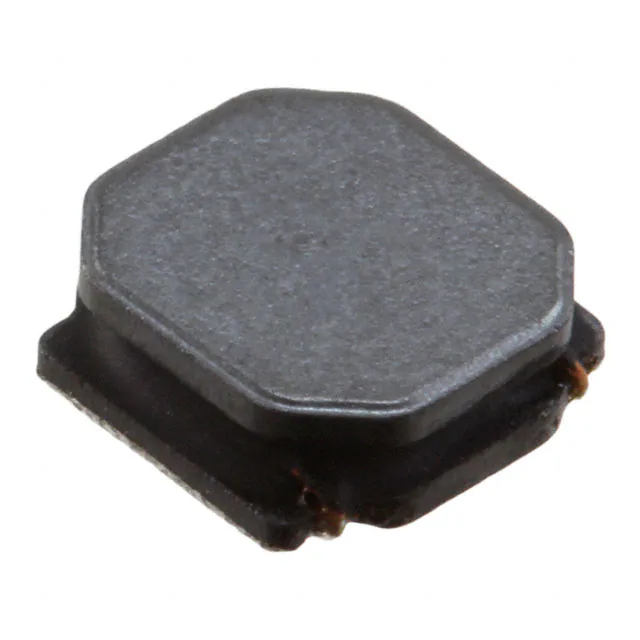

TYS5020220M-10FIXED IND 22UH 1.1A 226 MOHM SMD Laird-Signal Integrity Products |
202,032 | 0.39 |
|
Datasheet |
TYS5020 | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 1.1 A | 1.15A | Shielded | 226mOhm Max | - | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|

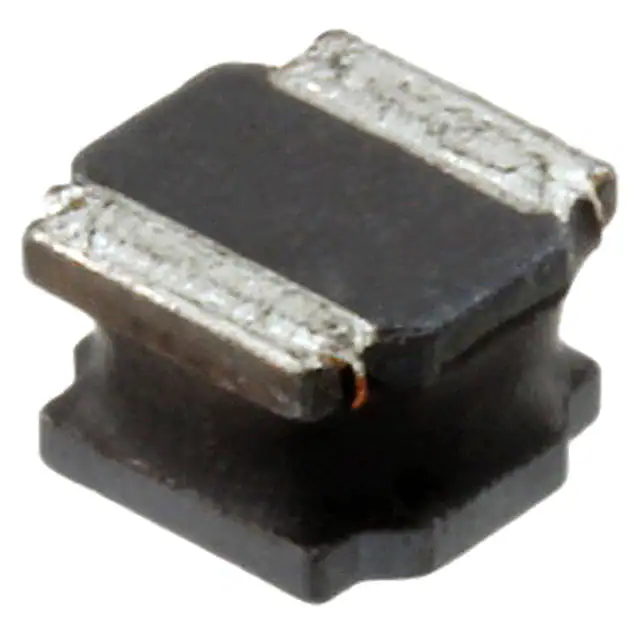

TYS4030101M-10FIXED IND 100UH 450MA 1.495 OHM Laird-Signal Integrity Products |
39,541 | 0.38 |
|
Datasheet |
TYS4030 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 450 mA | 600mA | Shielded | 1.495Ohm Max | - | 5.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
TYS5040470M-10FIXED IND 47UH 1A 272 MOHM SMD Laird-Signal Integrity Products |
26,187 | 0.39 |
|
Datasheet |
TYS5040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 1 A | 1.1A | Shielded | 272mOhm Max | - | 6.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.165" (4.20mm) |
|

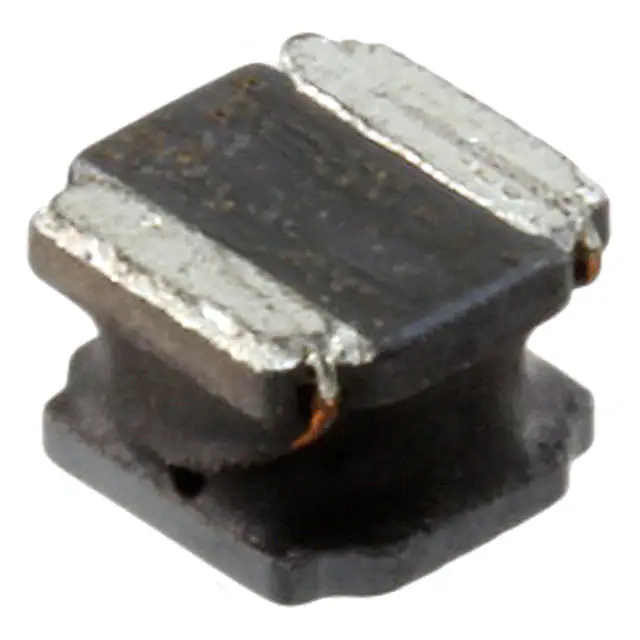

TYS4030100M-10FIXED IND 10UH 1.5A 130 MOHM SMD Laird-Signal Integrity Products |
23,793 | 0.15 |
|
Datasheet |
TYS4030 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 1.5 A | 1.95A | Shielded | 130mOhm Max | - | 21MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
|
TYS50406R8M-10FIXED IND 6.8UH 2.5A 43 MOHM SMD Laird-Signal Integrity Products |
21,472 | 0.39 |
|
Datasheet |
TYS5040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 2.5 A | 2.9A | Shielded | 43mOhm Max | - | 21MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.165" (4.20mm) |
|

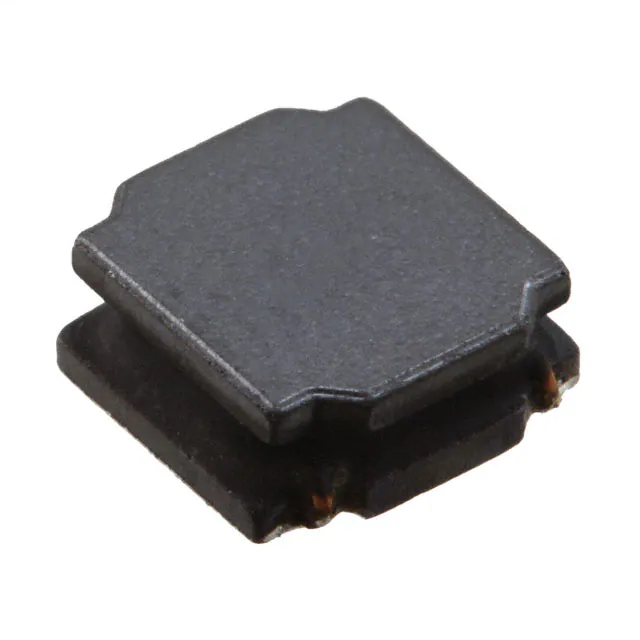

TYS60286R8M-10FIXED IND 6.8UH 2.4A 47 MOHM SMD Laird-Signal Integrity Products |
12,989 | 0.40 |
|
Datasheet |
TYS6028 | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 2.4 A | 2.6A | Shielded | 47mOhm | - | 27MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|

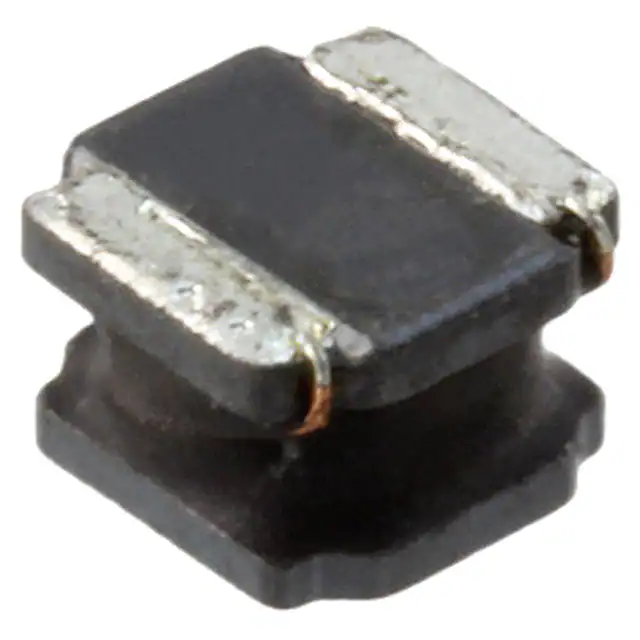

TYS4030220M-10FIXED IND 22UH 1A 292.5 MOHM SMD Laird-Signal Integrity Products |
8,684 | 0.38 |
|
Datasheet |
TYS4030 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 1 A | 1.3A | Shielded | 292.5mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
|
TYS50404R7N-10FIXED IND 4.7UH 3A 30 MOHM SMD Laird-Signal Integrity Products |
6,817 | 0.39 |
|
Datasheet |
TYS5040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±30% | 3 A | 3.5A | Shielded | 30mOhm Max | - | 28MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.165" (4.20mm) |
|
|
TYS5040101M-10FIXED IND 100UH 700MA 560MOHM SM Laird-Signal Integrity Products |
5,822 | 0.39 |
|
Datasheet |
TYS5040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 700 mA | 750mA | Shielded | 560mOhm Max | - | 4.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.165" (4.20mm) |
|
TYS6045331M-10FIXED IND 330UH 570MA 1.27OHM SM Laird-Signal Integrity Products |
23,776 | 0.42 |
|
Datasheet |
TYS6045 | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 µH | ±20% | 570 mA | 570mA | Shielded | 1.27Ohm | - | 2.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
