DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KD1209PTB2 (2) HFAN AXIAL 92X25MM 12VDC WIRE Sunon Fans |
4,370 | - |
|
Datasheet |
KD | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 48.5 CFM (1.36m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | 2.4 W | 2600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.238 lb (107.95 g) |
.H.jpg)
|

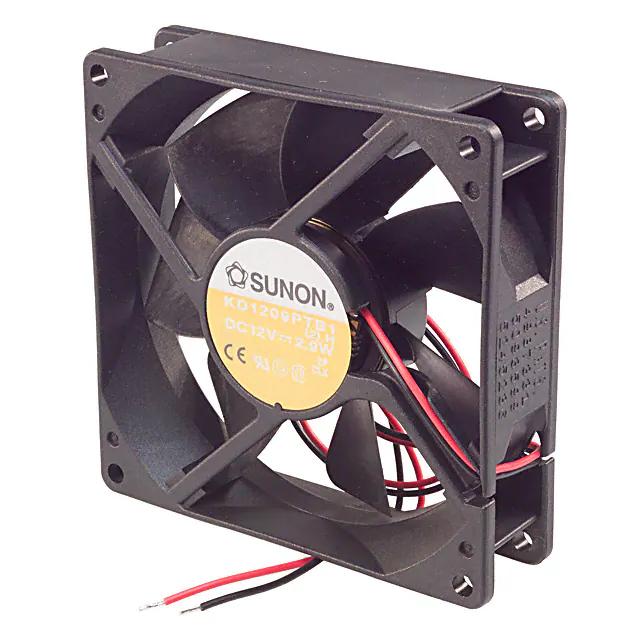

KD1209PTB1(2) HFAN AXIAL 92X25MM 12VDC WIRE Sunon Fans |
3,494 | - |
|
Datasheet |
KD | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 49.5 CFM (1.39m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | - | 34.5dB(A) | 2.5 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.238 lb (107.95 g) |
|
|
EE40101S1-0000-999FAN AXIAL 40X10MM 12VDC WIRE Sunon Fans |
3,511 | 0.77 |
|
Datasheet |
EE | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 8.0 CFM (0.224m³/min) | 0.190 in H2O (47.3 Pa) | Sleeve | Tubeaxial | - | 32.0dB(A) | 1.2 W | 7000 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.03 lb (13.61 g) |
|
|
KD1204PFB1FAN AXIAL 40X10.5MM 12VDC WIRE Sunon Fans |
4,600 | - |
|
Datasheet |
KD | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.50mm | 8.3 CFM (0.232m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | - | 34.4dB(A) | 1.4 W | 8400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.034 lb (15.42 g) |
|
KDE1204PFV1.11.MS.AF.GNFAN AXIAL 40X10MM 12VDC WIRE Sunon Fans |
4,951 | - |
|
Datasheet |
MagLev® KDE | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 8.0 CFM (0.224m³/min) | 0.190 in H2O (47.3 Pa) | Vapo-Bearing™ | Tubeaxial | Speed Sensor (Tach) | 32.0dB(A) | 1.1 W | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.037 lb (16.78 g) |
|

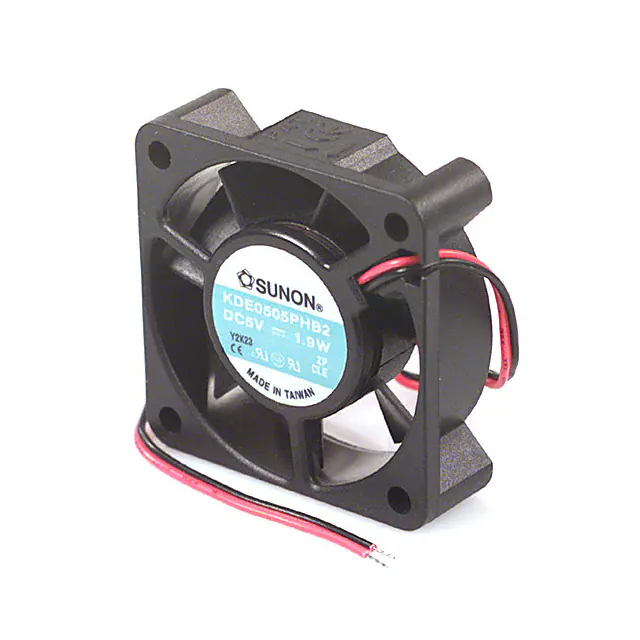

KDE0505PHB2FAN AXIAL 52X15.5MM 5VDC WIRE Sunon Fans |
3,186 | - |
|
Datasheet |
KDE | - | Obsolete | 5VDC | Square - 52mm L x 52mm H | 15.50mm | 12.7 CFM (0.356m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | - | 27.8dB(A) | 1.9 W | 5300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.081 lb (36.74 g) |
|
KDE1204PFB1 ( MS.M )FAN AXIAL 40X10MM 12VDC WIRE Sunon Fans |
3,943 | - |
|
Datasheet |
KDE | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 7.3 CFM (0.204m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 31.0dB(A) | 1 W | 7400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.035 lb (15.88 g) |
|
|
KDE0504PFB1 MS.MFAN AXIAL 40X10MM BALL 5VDC WIRE Sunon Fans |
1,159 | - |
|
Datasheet |
KDE | - | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 7.3 CFM (0.204m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 31.0dB(A) | 800 mW | 7400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.035 lb (15.88 g) |
|
|
KD2404PFSX.11.GNFAN AXIAL 40X10MM 24VDC WIRE Sunon Fans |
4,966 | 0.79 |
|
Datasheet |
KD | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.00mm | - | - | Sleeve | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
EB40101S2-000U-999FAN AXIAL 40X10MM 12VDC WIRE Sunon Fans |
1,715 | - |
|
Datasheet |
EB | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 7.0 CFM (0.196m³/min) | 0.130 in H2O (32.4 Pa) | Sleeve | Tubeaxial | - | 27.0dB(A) | 1.08 W | 5800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.038 lb (17.24 g) |
