DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

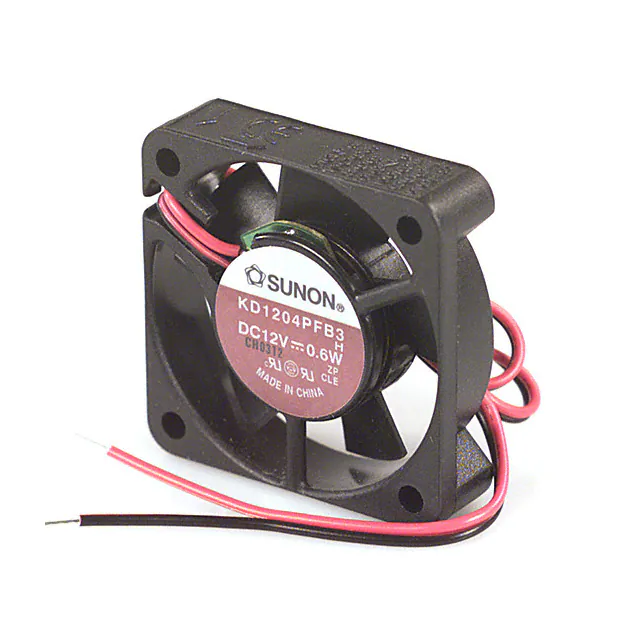

KD1204PFB3 HFAN AXIAL 40X10.5MM 12VDC WIRE Sunon Fans |
4,428 | - |
|
Datasheet |
KD | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.50mm | 4.7 CFM (0.132m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | - | 24.0dB(A) | 600 mW | 5200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.034 lb (15.42 g) |
|

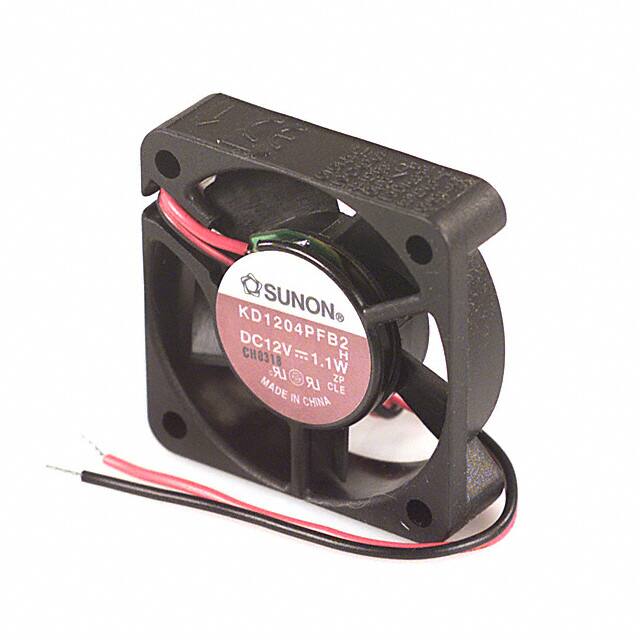

KD1204PFB2 HFAN AXIAL 40X10.5MM 12VDC WIRE Sunon Fans |
4,818 | - |
|
Datasheet |
KD | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.50mm | 6.5 CFM (0.182m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | - | 27.0dB(A) | 1.1 W | 6600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.034 lb (15.42 g) |
|
EB45101S2-000U-999FAN Sunon Fans |
1,808 | - |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EE45101S1-000U-999FAN Sunon Fans |
1,586 | - |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

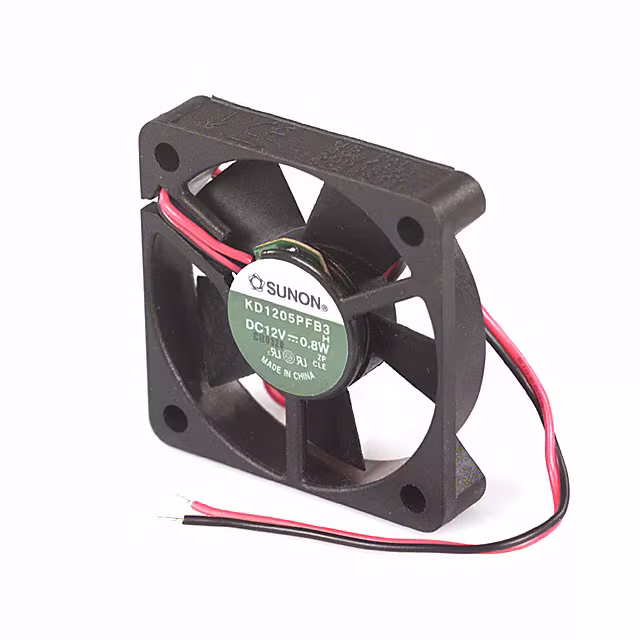

KD1205PFB3 HFAN AXIAL 50X10.5MM 12VDC WIRE Sunon Fans |
1,508 | - |
|
Datasheet |
KD | - | Obsolete | 12VDC | Square - 50mm L x 50mm H | 10.50mm | 8.0 CFM (0.224m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | - | 24.3dB(A) | 800 mW | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.051 lb (23.13 g) |
|

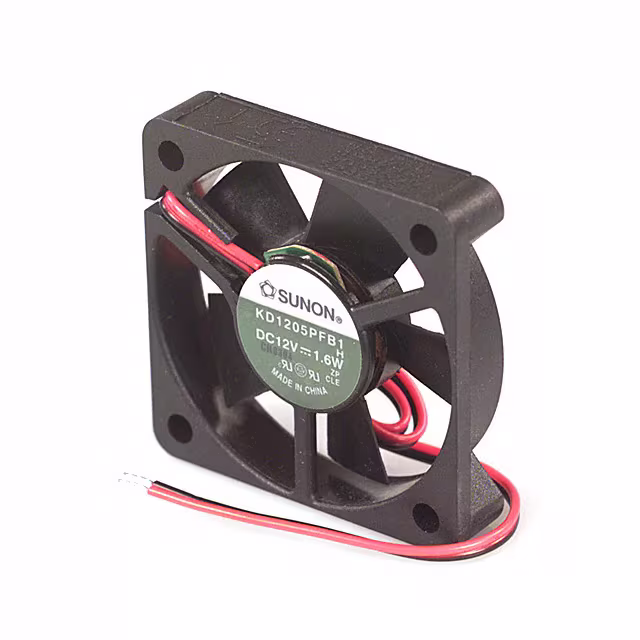

KD1205PFB1 HFAN AXIAL 50X10.5MM 12VDC WIRE Sunon Fans |
1,781 | - |
|
Datasheet |
KD | - | Obsolete | 12VDC | Square - 50mm L x 50mm H | 10.50mm | 11.4 CFM (0.319m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | - | 34.7dB(A) | 1.6 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.051 lb (23.13 g) |
|
KD1205PFB2 HFAN AXIAL 50X10.5MM 12VDC WIRE Sunon Fans |
3,380 | - |
|
Datasheet |
KD | - | Obsolete | 12VDC | Square - 50mm L x 50mm H | 10.50mm | 9.5 CFM (0.266m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | - | 28.9dB(A) | 1.2 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.051 lb (23.13 g) |
|

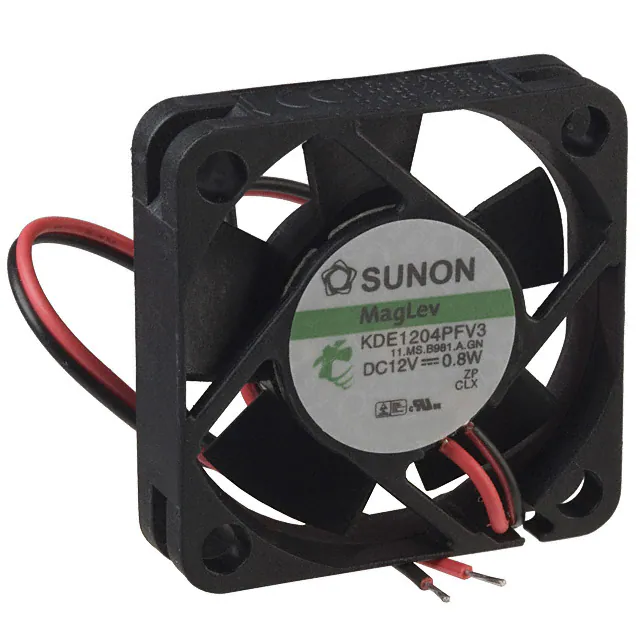

KDE1204PFV3 11.MS.B981.A.GNFAN AXIAL 40X10MM 12VDC WIRE Sunon Fans |
2,557 | - |
|
Datasheet |
MagLev® KDE | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 4.9 CFM (0.137m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | Tubeaxial | - | 20.0dB(A) | 600 mW | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.04 lb (18.14 g) |
|
EE80251B2-000U-999FAN AXIAL 80X25MM 12VDC WIRE Sunon Fans |
1,648 | - |
|
Datasheet |
EE | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 37.0 CFM (1.04m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | - | 30.0dB(A) | 1.4 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.165 lb (74.84 g) |
|
HAC0251S4-000U-999FAN AXIAL 120X25MM 12VDC WIRE Sunon Fans |
3,571 | - |
|
Datasheet |
HAC | Bulk | Obsolete | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 55.0 CFM (1.54m³/min) | 0.060 in H2O (14.9 Pa) | Sleeve | Tubeaxial | - | 29.6dB(A) | 1.9 W | 1600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.218 lb (98.88 g) |
