DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KDE1245PFV1.11.MS.A.GNFAN AXIAL 45X10MM 12VDC WIRE Sunon Fans |
3,908 | - |
|
Datasheet |
MagLev® KDE | Bulk | Obsolete | 12VDC | Square - 45mm L x 45mm H | 10.00mm | 11.0 CFM (0.308m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | - | 32.0dB(A) | 1.2 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.041 lb (18.6 g) |
|

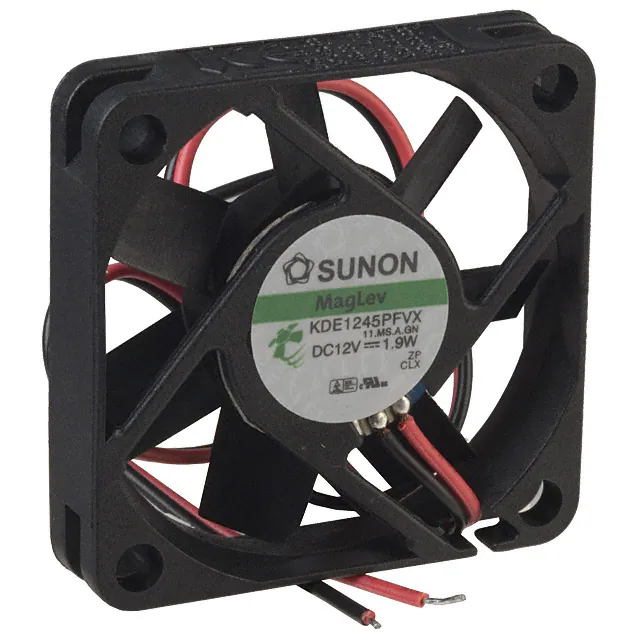

KDE1245PFVX.11.MS.A.GNFAN AXIAL 45X10MM 12VDC WIRE Sunon Fans |
3,830 | - |
|
Datasheet |
MagLev® KDE | Bulk | Obsolete | 12VDC | Square - 45mm L x 45mm H | 10.00mm | 12.5 CFM (0.350m³/min) | 0.220 in H2O (54.8 Pa) | Vapo-Bearing™ | Tubeaxial | - | 35.0dB(A) | 1.9 W | 7100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.041 lb (18.6 g) |
|
KDE0504PKV2.MS.A.GNFAN AXIAL 40X20MM VAPO 5VDC WIRE Sunon Fans |
2,427 | - |
|
Datasheet |
KDE | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.160 in H2O (39.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 21.0dB(A) | 600 mW | 3200 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | - | CE, cURus, TUV | - |
|
EF80252S1-1000U-A99FAN AXIAL 80X25MM 24VDC WIRE Sunon Fans |
3,646 | 0.87 |
|
Datasheet |
EF | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 41.0 CFM (1.15m³/min) | 0.180 in H2O (45.0 Pa) | Sleeve | Tubeaxial | Auto Restart | 33.0dB(A) | 1.32 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.167 lb (75.75 g) |
|
EE50101S2-1000U-999FAN AXIAL 50X10MM 12VDC WIRE Sunon Fans |
1,950 | 0.54 |
|
Datasheet |
EE | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 11.0 CFM (0.308m³/min) | 0.110 in H2O (27.4 Pa) | Sleeve | Tubeaxial | - | 25.6dB(A) | 900 mW | 4700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.043 lb (19.5 g) |
|
|
EE50101S1-1000U-999FAN AXIAL Sunon Fans |
1,814 | - |
|
Datasheet |
EE | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 13.0 CFM (0.364m³/min) | 0.140 in H2O (34.9 Pa) | Sleeve | Tubeaxial | - | 30.7dB(A) | 1.08 W | 5700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|

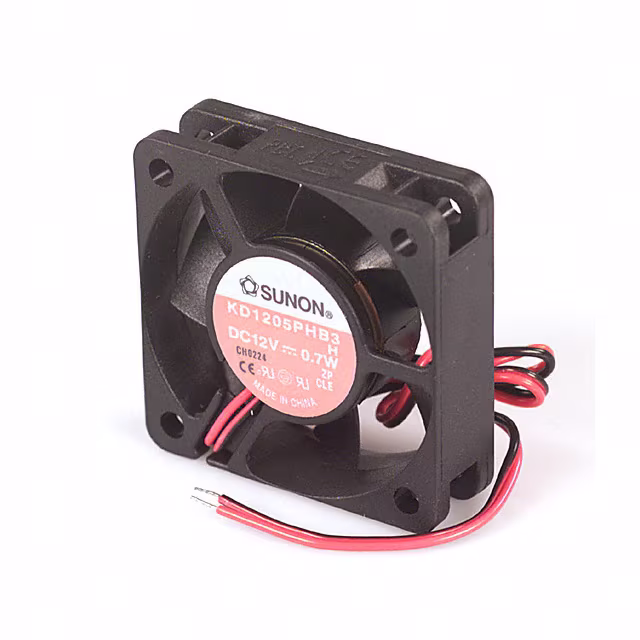

KD1205PHB3 HFAN AXIAL 50X15MM 12VDC WIRE Sunon Fans |
2,217 | - |
|
Datasheet |
KD | - | Obsolete | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 10.2 CFM (0.286m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | - | 22.5dB(A) | 700 mW | 3700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.081 lb (36.74 g) |
|

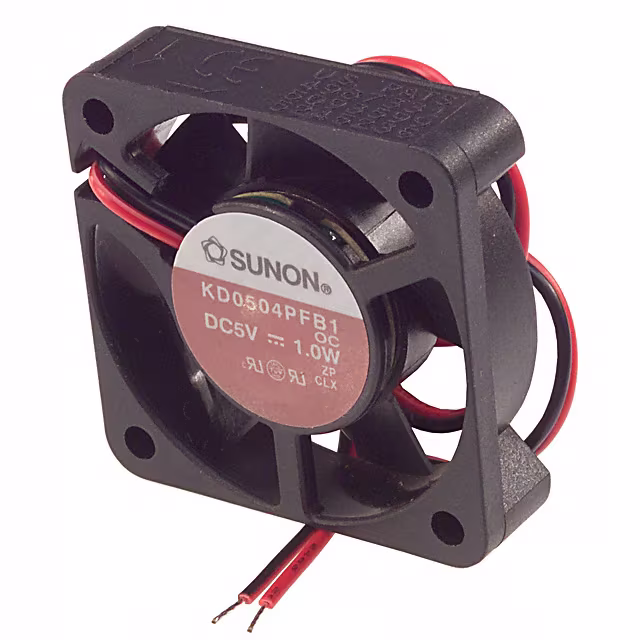

KD0504PFB1-OCFAN AXIAL 40X10.5MM 5VDC WIRE Sunon Fans |
4,643 | - |
|
Datasheet |
KD | - | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.50mm | 7.5 CFM (0.210m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | - | 28.0dB(A) | 1 W | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.035 lb (15.88 g) |
|
|
EE40100S2-1000U-999FAN AXIAL Sunon Fans |
3,567 | - |
|
Datasheet |
EE | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 7.1 CFM (0.199m³/min) | 0.120 in H2O (29.9 Pa) | Sleeve | Tubeaxial | - | 23.0dB(A) | 600 mW | 6100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
EE40100S1-1000U-999FAN AXIAL Sunon Fans |
2,905 | - |
|
Datasheet |
EE | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 8.2 CFM (0.230m³/min) | 0.190 in H2O (47.3 Pa) | Sleeve | Tubeaxial | - | 28.2dB(A) | 860 mW | 7300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
