DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KDE0504PFB2-8 A MS.FAN AXIAL 40X10MM BALL 5VDC WIRE Sunon Fans |
3,461 | - |
|
Datasheet |
KDE | - | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 5.1 CFM (0.143m³/min) | - | Ball | Tubeaxial | - | - | 350 mW | - | 2 Wire Leads | - | - | - | - |
|
KDE1205PHV2 MS.A.GNFAN AXIAL 50X15MM 12VDC WIRE Sunon Fans |
1,437 | - |
|
Datasheet |
MagLev® KDE | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 13.0 CFM (0.364m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | - | 29.0dB(A) | 800 mW | 4700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.084 lb (38.1 g) |
|
ME92251V3-000U-999FAN AXIAL 92X25MM 12VDC WIRE Sunon Fans |
3,800 | - |
|
Datasheet |
MagLev® ME | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 39.5 CFM (1.11m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | Tubeaxial | - | 28.0dB(A) | 1.3 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.212 lb (96.16 g) |
|
|
KDE2408PTS1-6FAN AXIAL 80X25.5MM 24VDC WIRE Sunon Fans |
4,784 | - |
|
Datasheet |
KDE | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.50mm | 41.7 CFM (1.17m³/min) | 0.180 in H2O (44.8 Pa) | Sleeve | Tubeaxial | - | 34.0dB(A) | 3.6 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cUR, UL | 0.265 lb (120.2 g) |
|
|
KDE2408PTS2-6FAN AXIAL 80X25MM 24VDC WIRE Sunon Fans |
2,416 | - |
|
Datasheet |
KDE | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 34.4 CFM (0.963m³/min) | 0.160 in H2O (39.8 Pa) | Sleeve | Tubeaxial | - | 30.0dB(A) | 1.9 W | 2650 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | - |
|
|
KDE2408PTS3-6FAN AXIAL 80X25.5MM 24VDC WIRE Sunon Fans |
4,731 | - |
|
Datasheet |
KDE | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.50mm | 29.4 CFM (0.823m³/min) | 0.110 in H2O (27.4 Pa) | Sleeve | Tubeaxial | - | 24.5dB(A) | 2.4 W | 2200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cUR, UL | 0.265 lb (120.2 g) |
|

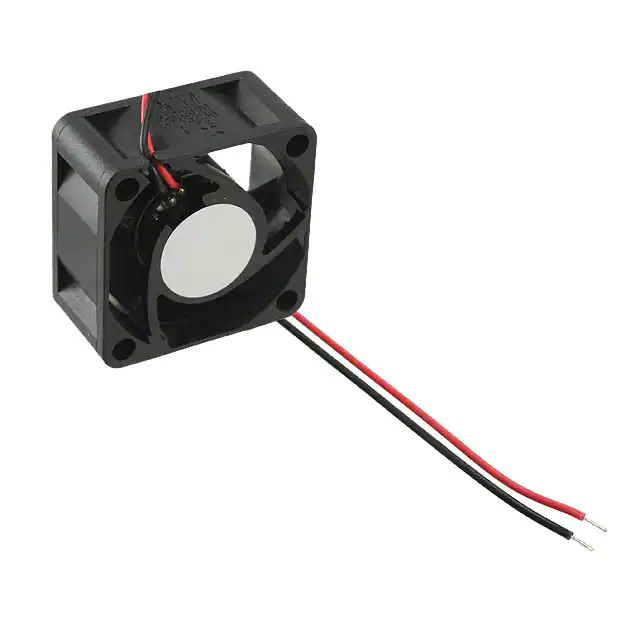

KDE1204PKV2 MS.A.GNFAN AXIAL 40X20MM 12VDC WIRE Sunon Fans |
1,833 | - |
|
Datasheet |
MagLev® KDE | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.160 in H2O (39.8 Pa) | Vapo-Bearing™ | Tubeaxial | - | 21.0dB(A) | 600 mW | 6200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.068 lb (30.84 g) |
|

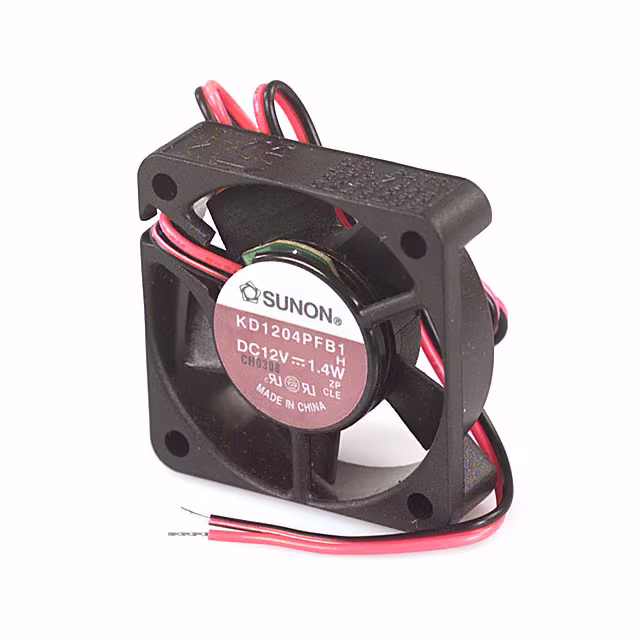

KD1204PFB1 ( H )FAN AXIAL 40X10.5MM 12VDC WIRE Sunon Fans |
1,952 | - |
|
Datasheet |
KD | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.50mm | 8.3 CFM (0.232m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | - | 34.4dB(A) | 1.4 W | 8400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.034 lb (15.42 g) |
|

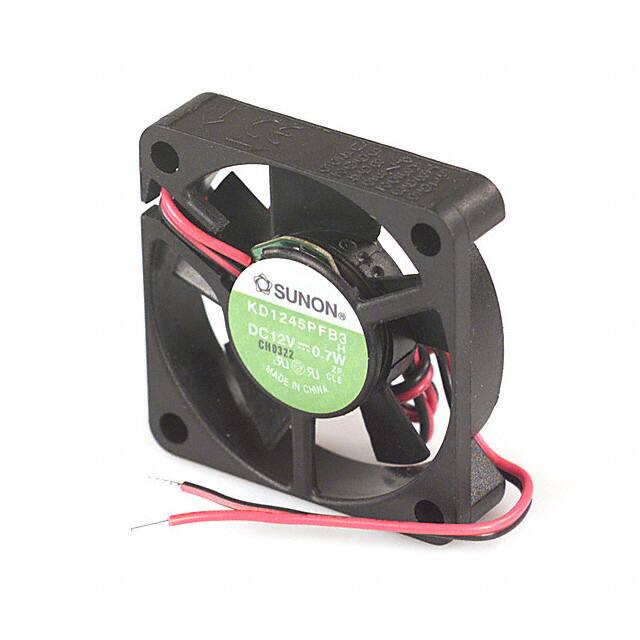

KD1245PFB3 HFAN AXIAL 45X10.5MM 12VDC WIRE Sunon Fans |
3,259 | - |
|
Datasheet |
KD | - | Obsolete | 12VDC | Square - 45mm L x 45mm H | 10.50mm | 6.1 CFM (0.171m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | - | 23.0dB(A) | 700 mW | 4400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.044 lb (19.96 g) |
|

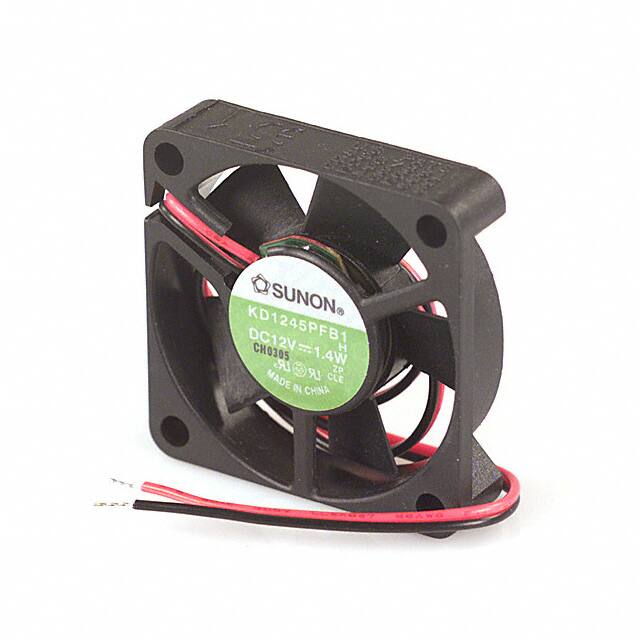

KD1245PFB1 HFAN AXIAL 45X10.5MM 12VDC WIRE Sunon Fans |
1,441 | - |
|
Datasheet |
KD | - | Obsolete | 12VDC | Square - 45mm L x 45mm H | 10.50mm | 9.5 CFM (0.266m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | - | 33.8dB(A) | 1.4 W | 7100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.044 lb (19.96 g) |
