DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EE92251S2-1000U-999FAN AXIAL 92X25MM 12VDC WIRE Sunon Fans |
1,568 | 0.80 |
|
Datasheet |
EE | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 45.0 CFM (1.26m³/min) | 0.130 in H2O (32.4 Pa) | Sleeve | Tubeaxial | - | 32.0dB(A) | 1.59 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.203 lb (92.08 g) |
|

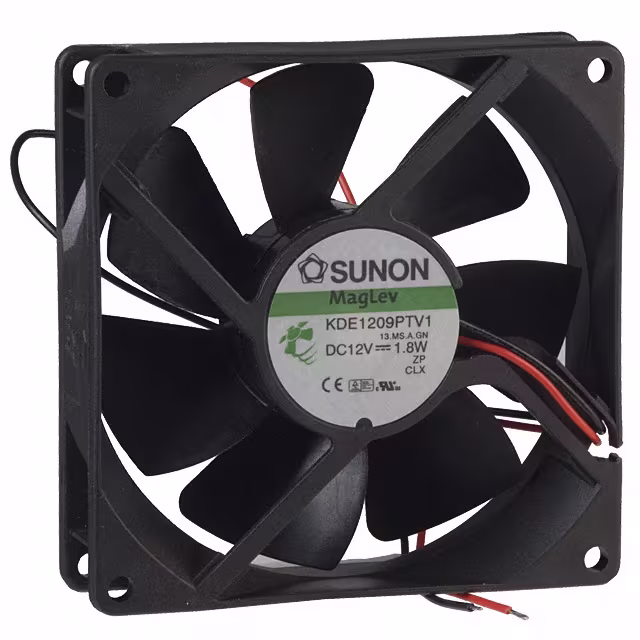

KDE1209PTV1.13.MS.A.GNFAN AXIAL 92X25MM 12VDC WIRE Sunon Fans |
2,987 | - |
|
Datasheet |
MagLev® KDE | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 49.0 CFM (1.37m³/min) | 0.160 in H2O (39.8 Pa) | Vapo-Bearing™ | Tubeaxial | - | 34.0dB(A) | 1.9 W | 2800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.209 lb (94.8 g) |
|
KD1206PHB1 H.MFAN AXIAL 60X15MM 12VDC WIRE Sunon Fans |
3,703 | - |
|
Datasheet |
KD | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 21.0 CFM (0.588m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 37.5dB(A) | 1.8 W | 4300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.086 lb (39.01 g) |
|
EE60201S3-1000U-999FAN AXIAL 60X20MM 12VDC WIRE Sunon Fans |
3,598 | - |
|
Datasheet |
EE | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 16.8 CFM (0.470m³/min) | 0.100 in H2O (24.9 Pa) | Sleeve | Tubeaxial | Auto Restart | 22.0dB(A) | 700 mW | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
EE60201S2-1000U-999FAN AXIAL Sunon Fans |
1,088 | - |
|
Datasheet |
EE | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 18.5 CFM (0.518m³/min) | 0.140 in H2O (34.9 Pa) | Sleeve | Tubeaxial | - | 26.3dB(A) | 990 mW | 3900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
EE60201S1-1000U-999FAN AXIAL Sunon Fans |
1,648 | - |
|
Datasheet |
EE | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 22.6 CFM (0.633m³/min) | 0.180 in H2O (44.8 Pa) | Sleeve | Tubeaxial | - | 32.5dB(A) | 1.38 W | 4700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
KDE1205PHV1 MS.A.GN.C1500FAN AXIAL 50X15MM 12VDC Sunon Fans |
1,915 | - |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KDE1205PHV2 MS.A.GN.C1500FAN AXIAL 50X15MM 12VDC WIRE Sunon Fans |
4,477 | - |
|
Datasheet |
MagLev® KDE | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 13.0 CFM (0.364m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 29.0dB(A) | 700 mW | 4700 RPM | 2 Wire Leads | - | - | - | - |
|
|
KDE1205PHV3.MS.A.GN.C1500FAN AXIAL 50X15MM 12VDC WIRE Sunon Fans |
3,641 | - |
|
Datasheet |
MagLev® KDE | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 10.2 CFM (0.286m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 22.0dB(A) | 500 mW | 3700 RPM | 2 Wire Leads | - | - | - | - |
|
EB60251S1-000U-999FAN AXIAL 60X25MM 12VDC WIRE Sunon Fans |
3,775 | - |
|
Datasheet |
EB | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | Sleeve | Tubeaxial | - | 33.5dB(A) | 1.62 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.126 lb (57.15 g) |
