HONG KONG HAOCHIP TRADING CO., LIMITED

    Vishay Semiconductor Opto Division VO3023

    Part No.:
    VO3023
    Manufacturer:
    Vishay Semiconductor Opto Division
    Category:
    Triac, SCR Output Optoisolators
    Package:
    6-DIP (0.300", 7.62mm)
    Datasheet:
    HONG KONG HAOCHIP TRADING CO., LIMITEDVO3023.pdf
    Description:
    OPTOISOLATOR 5K TRIAC 1CH 6DIP
    Quantity:

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Vishay Semiconductor Opto Division
    Series:
    -
    Package/Case:
    6-DIP (0.300", 7.62mm)
    Packaging:
    Tube
    Product Status:
    Active
    Output Type:
    Triac
    Zero Crossing Circuit:
    No
    Number of Channels:
    1
    Voltage - Isolation:
    5000Vrms
    Voltage - Off State:
    400 V
    Static dV/dt (Min):
    100V/µs
    Current - LED Trigger (Ift) (Max):
    5mA
    Current - On State (It (RMS)) (Max):
    1 A
    Current - Hold (Ih):
    200µA (Typ)
    Turn On Time:
    -
    Voltage - Forward (Vf) (Typ):
    1.3V
    Current - DC Forward (If) (Max):
    50 mA
    Operating Temperature:
    -40°C ~ 100°C
    Mounting Type:
    Through Hole
    Supplier Device Package:
    6-DIP
    Approval Agency:
    CQC, CSA, cUL, FIMKO, UL
    Datasheet:
    HONG KONG HAOCHIP TRADING CO., LIMITEDVO3023.pdf

    1. How to order VO3023 on HONG KONG HAOCHIP TRADING CO., LIMITED?

    Currently, HONG KONG HAOCHIP TRADING CO., LIMITED only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does HONG KONG HAOCHIP TRADING CO., LIMITED guarantee that VO3023 is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the VO3023. All suppliers must pass our qualification reviews before they can publish their products including VO3023 on HONG KONG HAOCHIP TRADING CO., LIMITED; we pay more attention to the channels and quality of VO3023 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

    3. Are the VO3023 price and inventory displayed accurate?

    The price and inventory of VO3023 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of VO3023?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the VO3023 we delivered, we will accept the replacement or return of the VO3023 only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of VO3023.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as VO3023 pin diagram, VO3023 datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

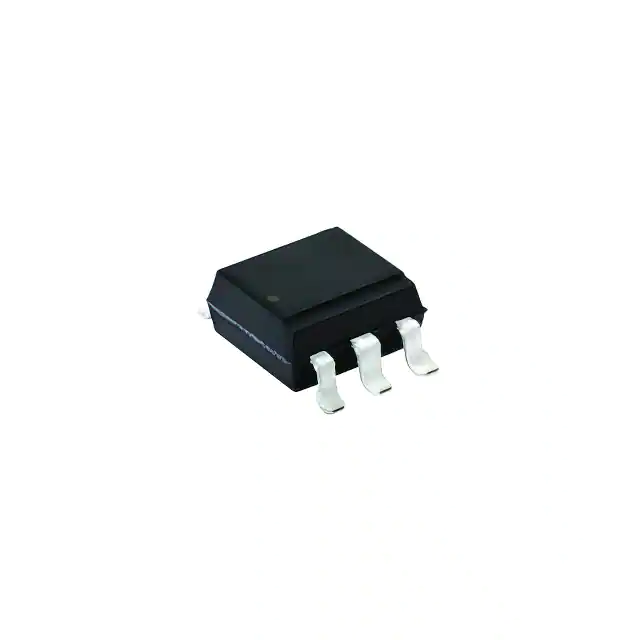

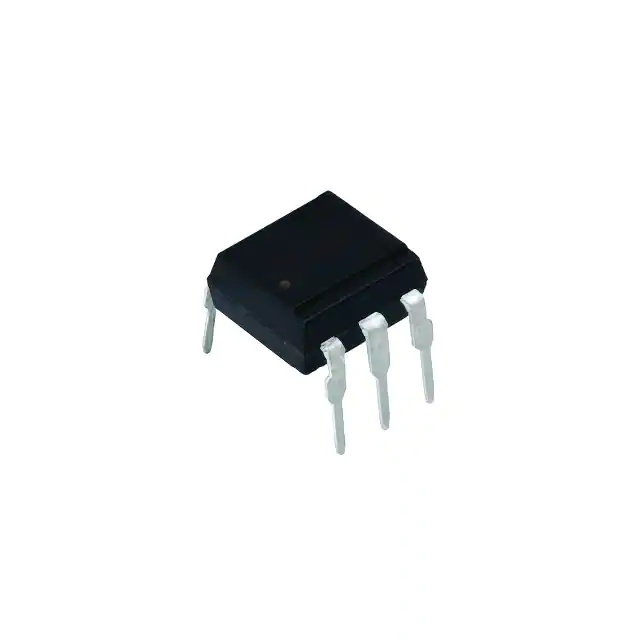

    Image VO3023 VO3023-X001 VO3023-X017T VO3023-X007T
    Part Number VO3023 VO3023-X001 VO3023-X017T VO3023-X007T
    Manufacturer Vishay Semiconductor Opto Division Vishay Semiconductor Opto Division Vishay Semiconductor Opto Division Vishay Semiconductor Opto Division
    Series - VO3023 VO3023 -
    Package/Case 6-DIP (0.300", 7.62mm) 6-DIP (0.300", 7.62mm) 6-SMD, Gull Wing 6-SMD, Gull Wing
    Packaging Tube Tape & Reel (TR) Tape & Reel (TR) Bulk
    Product Status Active Active Active Obsolete
    Output Type Triac Triac Triac Triac
    Zero Crossing Circuit No No No No
    Number of Channels 1 1 1 1
    Voltage - Isolation 5000Vrms 5000Vrms 5000Vrms 5000Vrms
    Voltage - Off State 400 V 400 V 400 V 400 V
    Static dV/dt (Min) 100V/µs 100V/µs 100V/µs 100V/µs
    Current - LED Trigger (Ift) (Max) 5mA 5mA 5mA 5mA
    Current - On State (It (RMS)) (Max) 1 A 100 mA 100 mA 100 mA
    Current - Hold (Ih) 200µA (Typ) 200µA (Typ) 200µA (Typ) 200µA (Typ)
    Turn On Time - - - -
    Voltage - Forward (Vf) (Typ) 1.3V 1.3V 1.3V 1.3V
    Current - DC Forward (If) (Max) 50 mA 50 mA 50 mA 50 mA
    Operating Temperature -40°C ~ 100°C -40°C ~ 100°C -40°C ~ 100°C -40°C ~ 100°C
    Mounting Type Through Hole Through Hole Surface Mount Surface Mount
    Supplier Device Package 6-DIP 6-DIP 6-SMD 6-SMD
    Approval Agency CQC, CSA, cUL, FIMKO, UL CQC, CSA, cUL, FIMKO, UL, VDE CQC, CSA, cUL, FIMKO, UL, VDE CQC, CSA, cUL, FIMKO, UL, VDE
