Triac, SCR Output Optoisolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Type | Zero Crossing Circuit | Number of Channels | Voltage - Isolation | Voltage - Off State | Static dV/dt (Min) | Current - LED Trigger (Ift) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) | Turn On Time | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

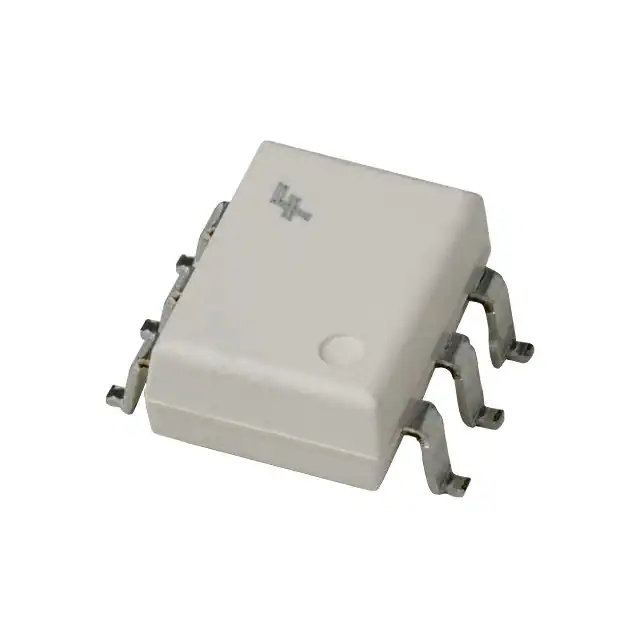

MOC3023S-TA1OPTOISOLATOR 5KV TRIAC 6SMD |
13,720 | 0.50 |
|
Datasheet |
MOC302x | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5000Vrms | 400 V | 1kV/µs | 5mA | - | 250µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-SMD | CQC, CSA, TUV, UL, VDE |
|

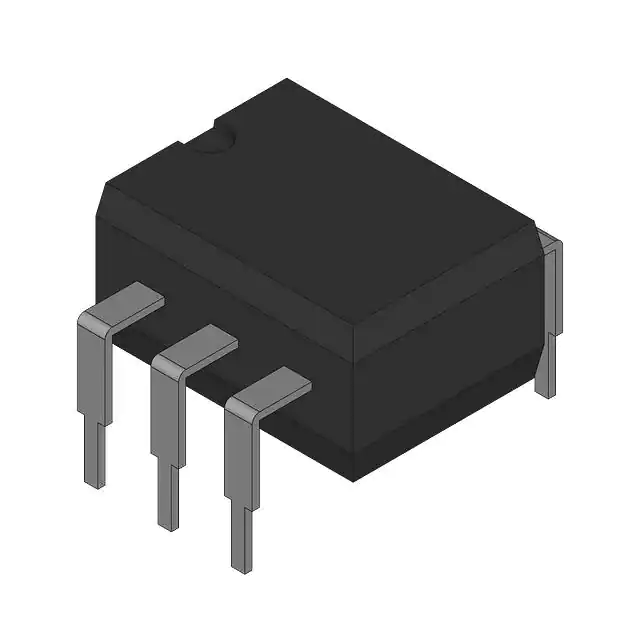

MOC3063OPTOISOLATOR 5KV TRIAC 6DIP |
42,920 | 0.55 |
|
Datasheet |
MOC306x | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 5mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP | CSA, FIMKO, UL |
|
|
MOC3063S-TA1OPTOISOLATOR 5KV TRIAC 6SMD |
243,852 | 0.58 |
|
Datasheet |
MOC306x | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 5mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-SMD | CSA, FIMKO, UL |
|
MOC3023SR2MOPTOISOLATOR 4.17KV TRIAC 6SMD |
26,060 | 0.70 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 4170Vrms | 400 V | - | 5mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|

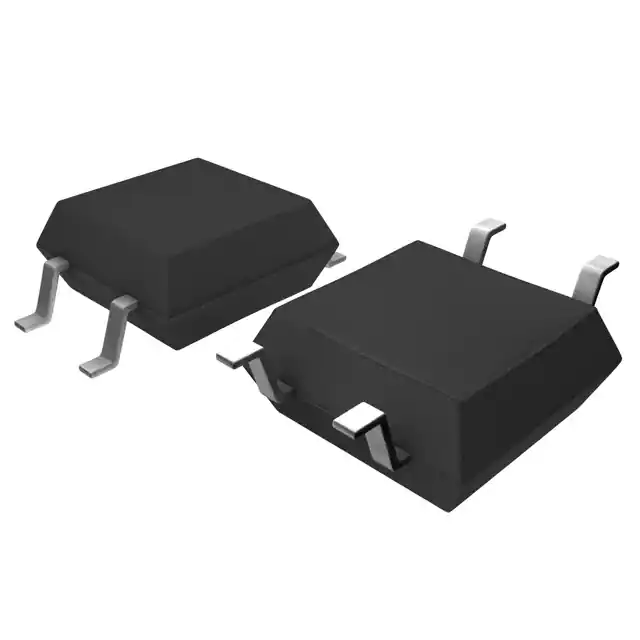

TLP266J(TPR,EX36 PB-F TRIAC COUPLER ZC SO6 RI |
6,642 | 0.22 |
|
Datasheet |
TLP | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | Triac | Yes | 1 | 3750Vrms | 600 V | 200V/µs | 10mA | 70 mA | 600µA (Typ) | 30µs | 1.27V | 30 mA | -40°C ~ 100°C | Surface Mount | 6-SOP | - |
|
MOC3012SR2MOPTOISOLATOR 4.17KV TRIAC 6SMD |
826 | 0.23 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 4170Vrms | 250 V | - | 5mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
|
TLP268J(TPR,EX36 PB-F TRIAC COUPLER LOW TRIGG |
24,294 | 0.26 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | Triac | Yes | 1 | 3750Vrms | 600 V | 500V/µs (Typ) | 3mA | 70 mA | 200µA (Typ) | 100µs | 1.27V | 30 mA | -40°C ~ 100°C | Surface Mount | 6-SOP | CQC, cUR, UR |
|
|
MOC3052SMOPTOISOLATOR 4.17KV TRIAC 6SMD |
1,850 | 1.23 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tube | Active | Triac | No | 1 | 4170Vrms | 600 V | 1kV/µs | 10mA | - | 220µA (Typ) | - | 1.18V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UR |
|
|
MOC3063SMOPTOISOLATOR 4.17KV TRIAC 6SMD |
791 | 0.88 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 4170Vrms | 600 V | 600V/µs | 5mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
|
MOC3043SR2MOPTOISOLATOR 4.17KV TRIAC 6SMD |
9,368 | 0.94 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 4170Vrms | 400 V | 1kV/µs | 5mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
|
MOC3041SR2VMOPTOISOLATOR 4.17KV TRIAC 6SMD |
8,860 | 0.98 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 4170Vrms | 400 V | 1kV/µs | 15mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | IEC/EN/DIN, UL |
|

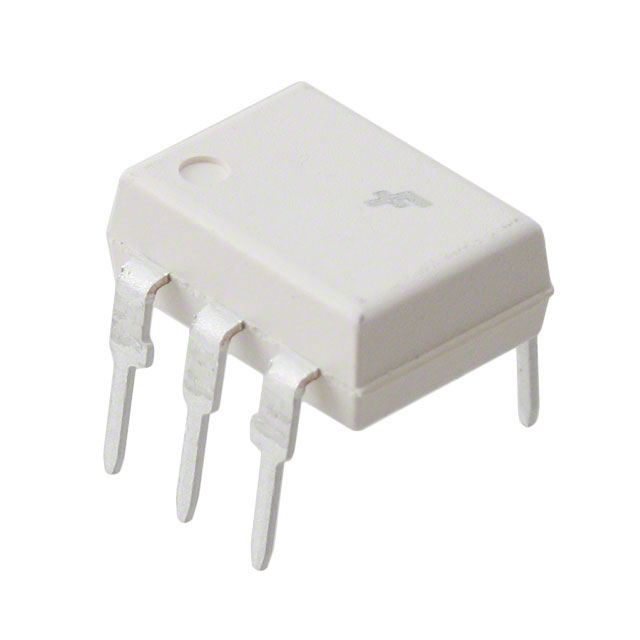

MOC3052MOPTOISOLATOR 4.17KV TRIAC 6DIP |
7,986 | 0.91 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 4170Vrms | 600 V | 1kV/µs | 10mA | - | 220µA (Typ) | - | 1.18V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | UR |
|
|
MOC3063SR2MOPTOISOLATOR 4.17KV TRIAC 6SMD |
11,989 | 0.94 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 4170Vrms | 600 V | 600V/µs | 5mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
MOC3041TVMOPTOISOLATOR 4.17KV TRIAC 6DIP |
10,572 | 1.08 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | Yes | 1 | 4170Vrms | 400 V | 1kV/µs | 15mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | IEC/EN/DIN, UL |
|
|
MOC3083SR2MOPTOISOLATOR 4.17KV TRIAC 6SMD |
17,083 | 1.05 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 4170Vrms | 800 V | 600V/µs | 5mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
S2S3LA0FOPTOISOLATOR 3.75KV TRIAC 4SMD |
13,415 | 1.31 |
|
Datasheet |
- | 4-SMD | Tape & Reel (TR) | Active | Triac | No | 1 | 3750Vrms | 600 V | 100V/µs | 5mA | 50 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 4-SMD | CSA, UR |
|
|
FODM3052R2-NF098OPTOISOLATOR 3.75KV TRIAC 4SMD |
8,405 | 1.33 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 3750Vrms | 600 V | 1kV/µs | 10mA | 70 mA | 300µA (Typ) | - | 1.2V | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | cUR, UR |
|
|
S2S4A00FOPTOISOLATOR 3.75KV TRIAC 4SMD |
819 | 1.31 |
|
Datasheet |
- | 4-SMD | Tape & Reel (TR) | Active | Triac | Yes | 1 | 3750Vrms | 600 V | 100V/µs | 10mA | 50 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 4-SMD | CSA, UR |
|
|
FODM3053R2-NF098OPTOISOLATOR 3.75KV TRIAC 4SMD |
5,223 | 1.50 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 3750Vrms | 600 V | 1kV/µs | 5mA | 70 mA | 300µA (Typ) | - | 1.2V | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | cUR, UR |
|
|
TLP748J(F)OPTOISOLATOR 4KV SCR 6DIP |
4,168 | 1.49 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Tube | Last Time Buy | SCR | No | 1 | 4000Vrms | 600 V | 5V/µs | 10mA | 150 mA | 1mA | 15µs | 1.15V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP | BSI, SEMKO, UR |
