Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
200MSP1T1B1M7RESWITCH TOGGLE SPDT 0.4VA 20V |
3,521 | 0.68 |
|
Datasheet |
200 | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 9.40mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MSP1T1B2M7RESWITCH TOGGLE SPDT 0.4VA 20V |
3,627 | 0.60 |
|
Datasheet |
200 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MSP3T21B3M6QESWITCH TOGGLE SPDT 3A 120V |
2,572 | - |
|
Datasheet |
200 | Bulk | Active | Panel Mount, Right Angle | SPDT | On-Off-On | 3A (AC/DC) | 120 V | 28 V | - | - | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP1T6B15M2QEHSWITCH TOGGLE DPDT 5A 120V |
4,980 | 0.62 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP1T7B13M51QESWITCH TOGGLE SPDT 5A 120V |
4,187 | - |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.98mm | Non-Illuminated | - | - | Wire Wrap | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200AWMSP3T3A1M6QESWITCH TOGGLE SPDT 3A 120V |
4,992 | - |
|
Datasheet |
200A | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP2T1B1M7QESWITCH TOGGLE SPDT 5A 120V |
3,403 | 0.60 |
|
Datasheet |
100 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP2T6B11M2RESWITCH TOGGLE DPDT 0.4VA 20V |
1,037 | 0.60 |
|
Datasheet |
100 | Bulk | Active | Through Hole | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MSP4T1B1M2QESWITCH TOGGLE SPDT 3A 120V |
1,976 | 0.60 |
|
Datasheet |
200 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 3A (AC/DC) | 120 V | 28 V | Standard Round | 9.40mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MSP4T2B1M1QESWITCH TOGGLE SPDT 3A 120V |
1,772 | 0.60 |
|
Datasheet |
200 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 3A (AC/DC) | 120 V | 28 V | Standard Round | 5.33mm | Non-Illuminated | - | - | Solder Lug | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP5T1B5M2QESWITCH TOGGLE DPDT 5A 120V |
1,930 | 0.60 |
|
Datasheet |
100 | Bulk | Active | Through Hole | DPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP1T1B1VS2QEHSWITCH TOGGLE DPDT 5A 120V |
3,334 | 0.72 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200AWMDP1T2A1M61KQESWITCH TOGGLE DPDT 3A 120V |
1,882 | - |
|
Datasheet |
200A | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 6.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP4T1B4M6QESWITCH TOGGLE SPDT 5A 120V |
2,406 | 0.69 |
|
Datasheet |
100 | Bulk | Active | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200AWMDP2T4A1M61RESWITCH TOGGLE DPDT 0.4VA 20V |
1,388 | 0.60 |
|
Datasheet |
200A | Bulk | Active | Through Hole, Right Angle | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200AWSP4T2A1M2QESWITCH TOGGLE SPDT 3A 120V |
2,721 | 0.60 |
|
Datasheet |
200A | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 3A (AC/DC) | 120 V | 28 V | Standard Round | 6.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100SP5T6B11M1QEHSWITCH TOGGLE SPDT 5A 120V |
4,443 | 0.72 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP5T6B11M2QEHSWITCH TOGGLE SPDT 5A 120V |
1,050 | 0.72 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

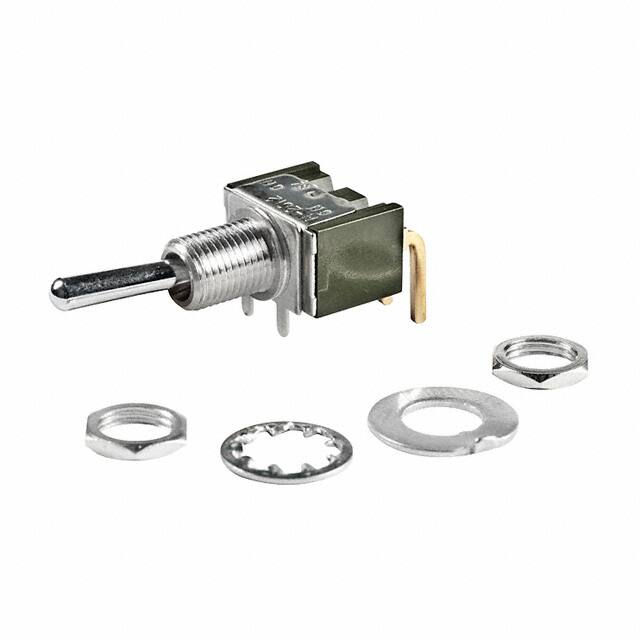

M2012SS1G30SWITCH TOGGLE SPDT 0.4VA 28V |
2,924 | 0.60 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP1T2B1M51REHSWITCH TOGGLE DPDT 0.4VA 20V |
2,469 | 0.72 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
