Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
100AWSP3T2B1M2REHSWITCH TOGGLE 3PST 0.4VA 20V |
4,307 | 0.60 |
|
Datasheet |
100A | Bulk | Active | Through Hole, Right Angle | 3PST | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.46mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
100SP2T6B1M1QESWITCH TOGGLE SPDT 5A 120V |
1,167 | 0.57 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP2T1B5VS2RESwitches |
3,915 | - |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
200MSP3T21B3M6QEHSWITCH TOGGLE SPDT 3A 120V |
3,075 | - |
|
Datasheet |
200 | Bulk | Active | Panel Mount, Right Angle | SPDT | On-Off-On | 3A (AC/DC) | 120 V | 28 V | - | - | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100AWDP2T1B1M1QEHSWITCH TOGGLE DPDT 5A 120V |
2,631 | 0.68 |
|
Datasheet |
100A | Bulk | Active | Panel Mount | DPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.55mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

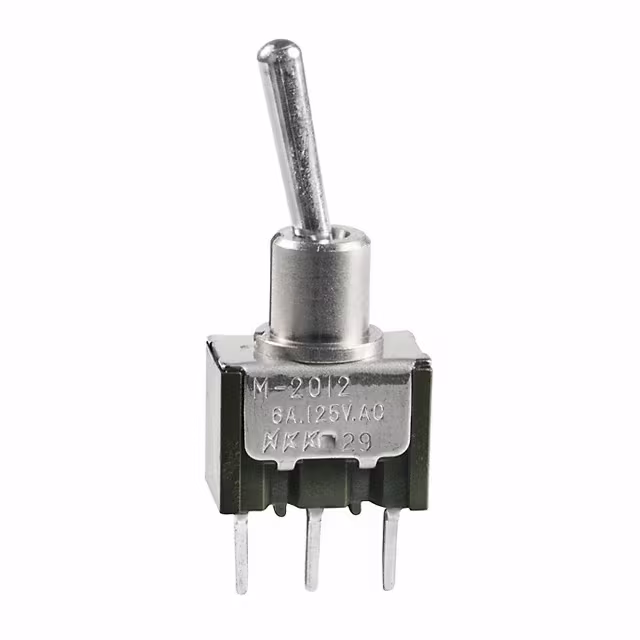

M2012SA2W03SWITCH TOGGLE SPDT 6A 125V |
2,930 | 0.58 |
|
Datasheet |
M | Tray | Obsolete | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 12.28mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
ST12DD00SWITCH TOGGLE SPDT 20A 125V |
1,758 | 0.37 |
|
Datasheet |
ST1 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 20A (AC) | 125 V | - | Standard Round | 19.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | M12 x 1 | - | - | 0°C ~ 85°C |
|
|
100DP1T1B4M2QESWITCH TOGGLE DPDT 5A 120V |
3,001 | 0.58 |
|
Datasheet |
100 | Bulk | Active | Through Hole | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100AWDP3T2B1M2QEHSWITCH TOGGLE DPDT 5A 120V |
4,729 | 0.69 |
|
Datasheet |
100A | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP2T1B1M2REHSWITCH TOGGLE DPDT 0.4VA 20V |
1,643 | - |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP2T1B1M1REHSWITCH TOGGLE DPDT 0.4VA 20V |
1,029 | - |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP1T1B1VS3QEHSWITCH TOGGLE SPDT 5A 120V |
3,218 | 0.70 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP2T6B11M2QESWITCH TOGGLE DPDT 5A 120V |
4,004 | 0.58 |
|
Datasheet |
100 | Bulk | Active | Through Hole | DPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP3T1B3VS2QESWITCH TOGGLE SPDT 5A 120V |
1,366 | - |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.19mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP2T1B1M3RESWITCH TOGGLE SPDT 0.4VA 20V |
1,817 | - |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MSP1T1B1M6QESWITCH TOGGLE SPDT 3A 120V |
3,988 | 0.58 |
|
Datasheet |
200 | Bulk | Active | Panel Mount, Right Angle | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 9.40mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MSP1T2B4M6QESWITCH TOGGLE SPDT 3A 120V |
1,490 | 0.58 |
|
Datasheet |
200 | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

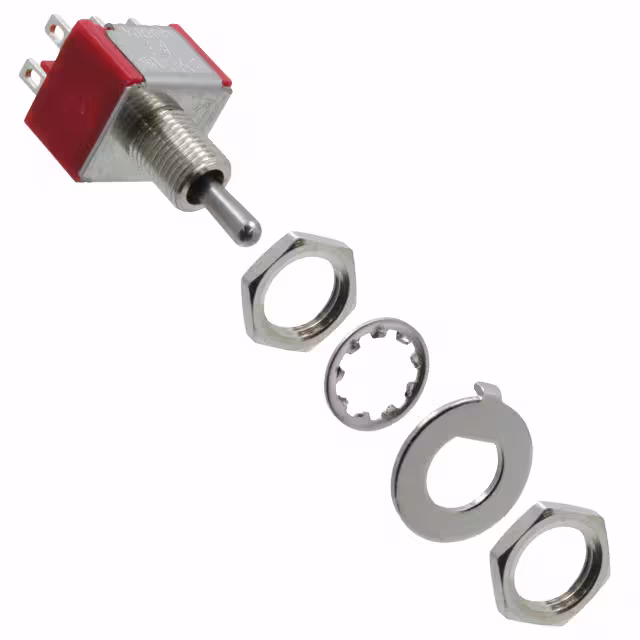

100DP4T2B3M1QEHSWITCH TOGGLE DPDT 5A 120V |
2,486 | 0.70 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP1T6B12M2RESWITCH TOGGLE SPDT 0.4VA 20V |
2,960 | - |
|
Datasheet |
100 | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 12.29mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MSP1T2B3M6QESWITCH TOGGLE SPDT 3A 120V |
2,342 | 0.58 |
|
Datasheet |
200 | Tray | Active | Panel Mount, Right Angle | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
