Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
100DP3T5B5M2QESWITCH TOGGLE DPDT 5A 120V |
1,295 | 0.61 |
|
Datasheet |
100 | Bulk | Active | Through Hole | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 21.34mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP5T1B1VS2QESWITCH TOGGLE SPDT 5A 120V |
2,703 | 0.61 |
|
Datasheet |
100 | Bulk | Active | Through Hole | SPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MSP2T2B7M1QEHSWITCH TOGGLE SPDT 3A 120V |
4,632 | 0.73 |
|
Datasheet |
200 | Bulk | Active | Panel Mount | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Standard Round | 5.33mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
6-1825136-4SWITCH TOGGLE SPDT 5A 120V |
2,049 | 0.60 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | SPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
4-1825136-0SWITCH TOGGLE SPDT 5A 120V |
3,350 | 0.60 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP4T1B4M2QESWITCH TOGGLE DPDT 5A 120V |
1,603 | 0.70 |
|
Datasheet |
100 | Bulk | Active | Through Hole | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MSP1T1B3M6QESWITCH TOGGLE SPDT 3A 120V |
4,964 | 0.61 |
|
Datasheet |
200 | Bulk | Active | Panel Mount, Right Angle | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 9.40mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MSP1T3B4M6QESWITCH TOGGLE SPDT 3A 120V |
3,014 | 0.61 |
|
Datasheet |
200 | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 7.37mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MSP3T2B4M6QESWITCH TOGGLE SPDT 3A 120V |
3,179 | 0.61 |
|
Datasheet |
200 | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1-1825138-8SWITCH TOGGLE DPDT 5A 120V |
1,854 | 0.60 |
|
Datasheet |
Gemini A | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.19mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1825138-9SWITCH TOGGLE DPDT 5A 120V |
2,732 | 0.60 |
|
Datasheet |
Gemini A | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2-1825138-3SWITCH TOGGLE DPDT 5A 120V |
3,100 | 0.63 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount, Right Angle | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MDP3T1B1M6QEHSWITCH TOGGLE DPDT 3A 120V |
2,302 | - |
|
Datasheet |
200 | Bulk | Active | Panel Mount, Right Angle | DPDT | On-Off-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 9.40mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP5T1B1M2QESWITCH TOGGLE DPDT 5A 120V |
1,213 | 0.59 |
|
Datasheet |
100 | Bulk | Active | Through Hole | DPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP2T1B2VS2QESWITCH TOGGLE SPDT 5A 120V |
2,159 | 0.61 |
|
Datasheet |
100 | Tray | Active | Through Hole | SPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

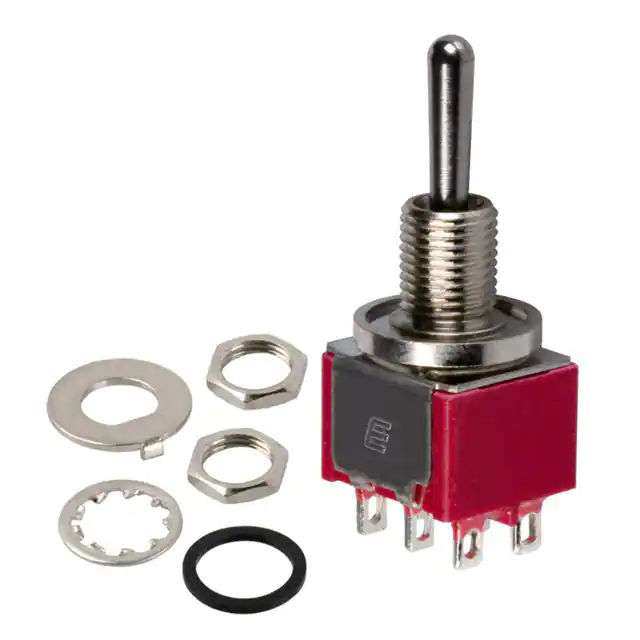

100DP3T1B9M1QEHSWITCH TOGGLE DPDT 5A 120V |
2,154 | 0.74 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MSP5T2B1M6QEHSWITCH TOGGLE SPDT 3A 120V |
3,296 | 0.74 |
|
Datasheet |
200 | Bulk | Active | Panel Mount, Right Angle | SPDT | On-Off-Mom | 3A (AC/DC) | 120 V | 28 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP1T64B11M2QEHSWITCH TOGGLE DPDT 5A 120V |
1,017 | - |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100AWSP1T2B4M2RESWITCH TOGGLE SPDT 0.4VA 20V |
2,196 | 0.62 |
|
Datasheet |
100A | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MSP3T1B1M2RESWITCH TOGGLE SPDT 0.4VA 20V |
2,931 | 0.62 |
|
Datasheet |
200 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 9.40mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
