Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1-6437630-0SWITCH TOGGLE DPDT 20A 125V |
4,663 | 11.06 |
|
Datasheet |
AW | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Sealed | -20°C ~ 70°C |
|

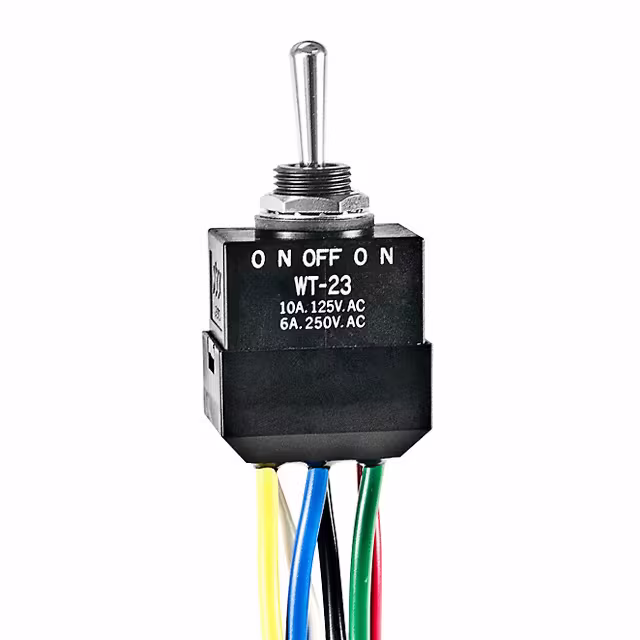

WT23LSWITCH TOGGLE DPDT 10A 125V |
4,868 | 8.63 |
|
Datasheet |
WT | Bulk | Active | Panel Mount | DPDT | On-Off-On | 10A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Wire Leads | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 70°C |
|
2TL1-10NSWITCH TOGGLE SP3T 15A 125V |
1,985 | 15.30 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SP3T | On-On-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | Jumper needed to achieve triple throw | -65°C ~ 71°C |
|
|
1825143-8SWITCH TOGGLE DPDT 5A 120V |
1,531 | 1.09 |
|
Datasheet |
Gemini AE | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Process Sealed | -30°C ~ 85°C |
|
TMS1T3B1M5RESWITCH TOGGLE SPDT 0.4VA 20V |
1,121 | 1.05 |
|
Datasheet |
- | Bulk | Obsolete | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.37mm | Non-Illuminated | - | - | Wire Wrap | Circular - 4.95mm Dia | 10-48 | - | Process Sealed | -30°C ~ 85°C |
|
|
34ASP57T7M2QTSWITCH TOGGLE SPDT 5A 125V |
4,703 | 0.98 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Standard Round | 12.37mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | - | -30°C ~ 85°C |
|
TBS1TBA1MTRESSWITCH TOGGLE SPDT 0.4VA 20V |
4,779 | 1.20 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Surface Mount, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | SMD (SMT) Tab | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
TBS2TBA1MZRESSWITCH TOGGLE SPDT 0.4VA 20V |
1,396 | 1.25 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Surface Mount, Right Angle | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | SMD (SMT) Tab | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
2-1825143-5SWITCH TOGGLE DPDT 0.4VA 20V |
1,923 | 1.02 |
|
Datasheet |
Gemini AE | Bulk | Active | Through Hole | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.70mm | Non-Illuminated | - | - | Wire Wrap | - | Unthreaded | IP67 - Dust Tight, Waterproof | Process Sealed | -30°C ~ 85°C |
|
TBS2T2A1MTRESSWITCH TOGGLE SPDT 0.4VA 20V |
3,726 | 1.25 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Surface Mount, Right Angle | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | SMD (SMT) Tab | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
2M1-SP1-T1-B2-M2QESWITCH TOGGLE SPDT 5A 125V |
1,667 | 0.95 |
|
Datasheet |
2M | Bulk | Active | Through Hole | SPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 10.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2015SS2G13SWITCH TOGGLE SPDT 0.4VA 28V |
2,504 | 1.22 |
|
Datasheet |
M | Tray | Obsolete | Through Hole | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1-1825136-8SWITCH TOGGLE SPDT 0.4VA 20V |
1,753 | 0.97 |
|
Datasheet |
Gemini A | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TA1-1F-DC-1SWITCH TOGGLE SPDT 20A 12V |
2,112 | 0.82 |
|
Datasheet |
TA1 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 20A (DC) | - | 12 V | Standard Round | 16.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | 0°C ~ 65°C |
|
TB2-1A-DC-4SWITCH TOGGLE SPST 20A 12V |
1,575 | 0.84 |
|
Datasheet |
TB2 | Bulk | Active | Panel Mount | SPST | On-Off | 20A (DC) | - | 12 V | Standard Round | 17.70mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | M12 x 0.75 | - | - | 0°C ~ 55°C |
|
M2011S2S1W01SWITCH TOGGLE SPST 6A 125V |
2,392 | 0.91 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2012SS1W15SWITCH TOGGLE SPDT 6A 125V |
1,041 | 0.88 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2013BB1G01SWITCH TOGGLE SPDT 0.4VA 28V |
3,585 | 1.35 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

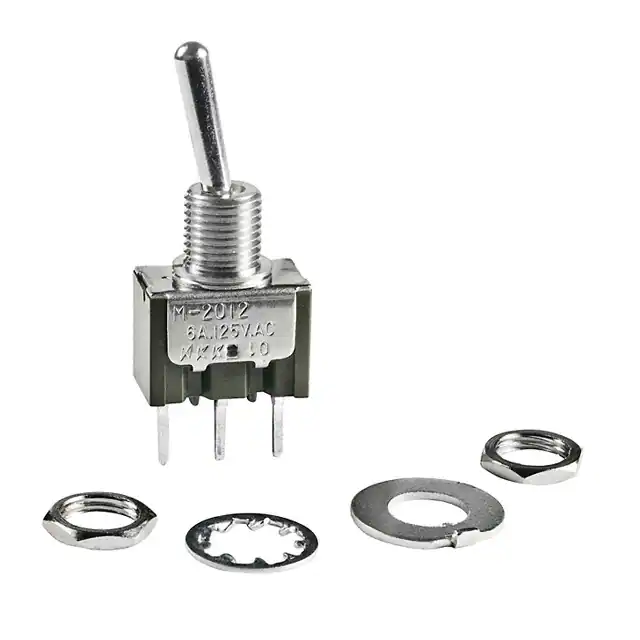

M2012SA1W03SWITCH TOGGLE SPDT 6A 125V |
4,253 | 0.97 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 12.28mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34DWMSP52B4M6RTSWITCH TOGGLE SPDT 0.4VA 20V |
3,008 | 1.05 |
|
Datasheet |
34D | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
