Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
M2011SS1W01/CUL-N983-WLSWITCH TOGGLE |
1,457 | - |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
A223S1CWZQSWITCH TOGGLE DPDT 6A 125V |
2,901 | 3.20 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | Splash Proof | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
MN13LL2G30ANGLE PC MOUNT MINIATURE TOGGLE |
3,701 | - |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MN33BB1W01SWITCH TOGGLE |
4,413 | - |
|
Datasheet |
M | Bulk | Active | Panel Mount | 3PDT | On-Off-On | 4A (AC), 2A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
5543SWITCH TOGGLE SPST 10A 12V |
3,836 | 3.99 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPST | On-Off | 10A (DC) | - | 12 V | Standard Round | 17.46mm | Non-Illuminated | - | - | Screw Terminal | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
ET28MD1ABESWITCH TOGGLE DPDT 0.4VA 20V |
1,432 | 2.67 |
|
Datasheet |
ET | Tray | Active | Through Hole, Right Angle | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
55025-05SW.TOGGLE,SPST, OFF-ON, PANEL SE |
100 | 3.23 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | 15.32mm | - | - | - | - | - | - | - | - | - |
|
S423SWITCH TOGGLE DPDT 25A 125V |
4,316 | 3.76 |
|
Datasheet |
S400 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 25A (AC) | 125 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
MN42BB1W01BUSHING MOUNT MINIATURE TOGGLE |
3,550 | - |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MN42LL1W01SWITCH TOGGLE |
3,589 | - |
|
Datasheet |
M | Bulk | Active | Panel Mount | 4PDT | On-On | 4A (AC), 3A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
MNL12TCW01SWITCH TOGGLE |
3,106 | - |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Red | 2.2 VDC | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -10°C ~ 55°C |
|
|
A232S1DAV2BSWITCH TOGGLE SP3T 0.5VA 28V |
4,760 | 3.68 |
|
Datasheet |
A | Bulk | Active | Panel Mount, Right Angle, Vertical | SP3T | On-On-On | 0.5VA (AC/DC) | 28 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 90°C |
|
55093SWITCH TOGGLE DPDT 25A 12V |
4,424 | 3.76 |
|
Datasheet |
- | Bulk | Active | Panel Mount | DPDT | On-On-Off | 25A (DC) | - | 12 V | Standard Round | 17.46mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
WT15TSWITCH TOGGLE SPDT 10A 125V |
3,389 | 3.42 |
|
Datasheet |
WT | Bulk | Active | Panel Mount | SPDT | On-Mom | 10A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 70°C |
|
|
MN32SS1G03SWITCH TOGGLE |
2,285 | - |
|
Datasheet |
M | Bulk | Active | Panel Mount | 3PDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|

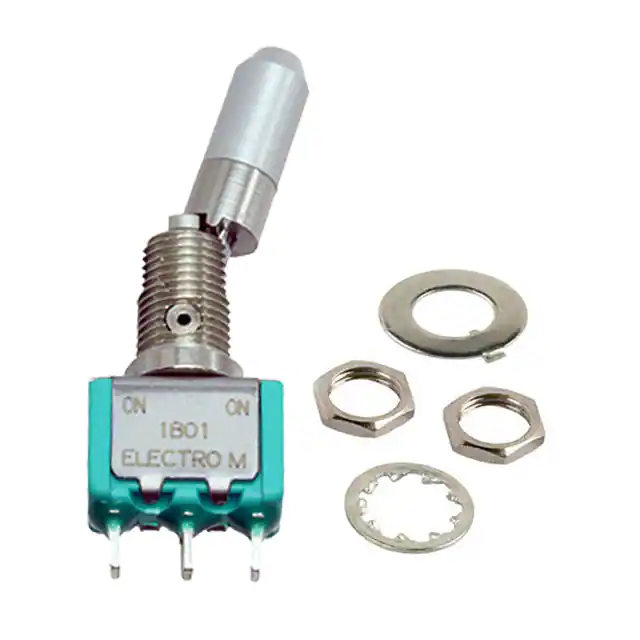

A123K12KZQSWITCH TOGGLE SPDT 6A 125V |
2,535 | 3.72 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Locking Lever | 15.47mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
MN32S2A2G40SWITCH TOGGLE |
3,214 | - |
|
Datasheet |
M | Bulk | Active | Through Hole, Right Angle, Vertical | 3PDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
55025-03SWITCH TOGGLE SPDT 15A 24V |
2,619 | 3.90 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPDT | On-On | 15A (DC) | - | 24 V | Standard Round | 15.30mm | Non-Illuminated | - | - | Wire Leads | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
|
MTA206SSWITCH TOGGLE DPDT 6A 125V |
4,935 | 3.64 |
|
Datasheet |
MTA Green | Bulk | Active | Panel Mount | DPDT | Mom-On-Mom | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
MN13WBW01SWITCH TOGGLE 6A 125V |
4,345 | - |
|
- |
M | Bulk | Active | Panel Mount | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 20.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP68 - Dust Tight, Waterproof | - | - |
