Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
55016-06-BPSWITCH TOGGLE SPDT 15A 24V |
2,547 | 3.61 |
|
- |
- | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (DC) | - | 24 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | - | 15/32-32 | - | - | - |
|
|
ETW115D12SWITCH TOGGLE SPDT 15A 127VAC |
1,449 | - |
|
Datasheet |
ETW | Box | Active | Panel Mount | SPDT | On-On | 15A (AC) | 127 V | - | Standard Round | 16.40mm | Non-Illuminated | - | - | Solder Lug | - | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -10°C ~ 70°C |
|
|
A223S1YZQSWITCH TOGGLE DPDT 6A 125V |
4,081 | 2.80 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
ET225P12-ZSWITCH TOGGLE DPDT 25A 125V |
2,524 | 1.97 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | DPDT | On-Off-On | 25A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
55088SWITCH TOGGLE SPDT 15A 24V |
2,650 | 2.82 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPDT | Mom-Off-On | 15A (DC) | - | 24 V | Standard Round | 17.46mm | Non-Illuminated | - | - | Screw Terminal | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
|
MN32BB1W01SWITCH TOGGLE |
1,846 | - |
|
Datasheet |
M | Bulk | Active | Panel Mount | 3PDT | On-On | 4A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
MN22LL3W01-CSWITCH TOGGLE |
3,163 | - |
|
Datasheet |
M | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
MN32SS4W03SWITCH TOGGLE |
2,736 | - |
|
Datasheet |
M | Bulk | Active | Panel Mount | 3PDT | On-On | 4A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | M6 x 0.75 | - | - | -30°C ~ 85°C |
|
|
2GK721-D-3B-B/272-06747SWITCH TOGGLE DPST 20A 125V |
1,130 | 2.59 |
|
- |
G | Bulk | Active | Panel Mount | DPST | On-Off | 20A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|

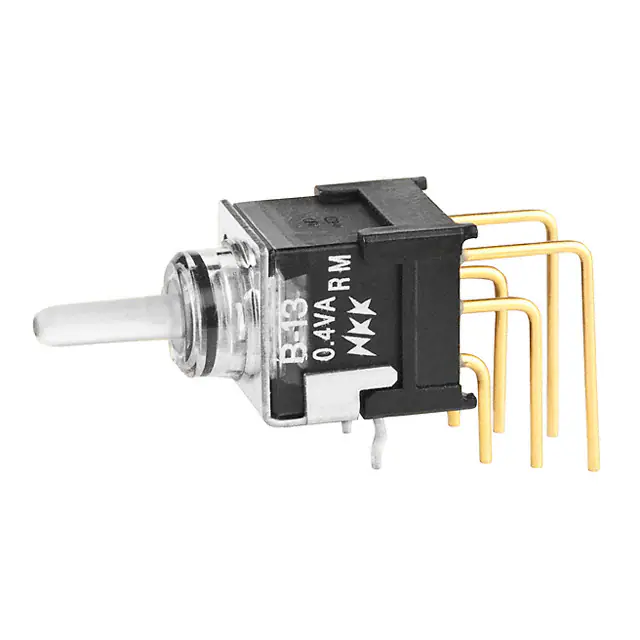

B13JJVCFSWITCH TOGGLE SPDT 0.4VA 28V |
3,071 | 2.51 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Illuminated | LED, Green/Red | 1.95, 3.3 VDC | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -25°C ~ 55°C |
|
|
MN28B2B1W03SWITCH TOGGLE |
2,666 | - |
|
Datasheet |
M | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 4A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
ETW115E12SWITCH TOGGLE SPDT 15A 127VAC |
3,381 | - |
|
Datasheet |
ETW | Box | Active | Panel Mount | SPDT | On-Off-On | 15A (AC) | 127 V | - | Standard Round | 16.40mm | Non-Illuminated | - | - | Solder Lug | - | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -10°C ~ 70°C |
|
|
MN24SS1G03SWITCH TOGGLE |
2,120 | - |
|
Datasheet |
M | Bulk | Active | Panel Mount | SP3T | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
MN12LL2G30SWITCH TOGGLE |
1,181 | - |
|
Datasheet |
M | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
MN32SS2W30SWITCH TOGGLE |
1,363 | - |
|
Datasheet |
M | Bulk | Active | Through Hole, Right Angle | 3PDT | On-On | 4A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
55055-01SWITCH TOGGLE SPST 15A 24V |
1,391 | 2.88 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPST | On-Off | 15A (DC) | - | 24 V | Standard Round | 38.48mm | Non-Illuminated | - | - | Screw Terminal | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
|
MN42SS1W03SWITCH TOGGLE |
4,161 | - |
|
Datasheet |
M | Bulk | Active | Panel Mount | 4PDT | On-On | 4A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
ETW115G12SWITCH TOGGLE SPDT 15A 127VAC |
3,557 | - |
|
Datasheet |
ETW | Box | Active | Panel Mount | SPDT | Mom-Off-Mom | 15A (AC) | 127 V | - | Standard Round | 16.40mm | Non-Illuminated | - | - | Solder Lug | - | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -10°C ~ 70°C |
|
ATLE44D-6M3-ZSWITCH TOGGLE 4PDT 50MA 48V |
3,789 | 2.40 |
|
Datasheet |
ATLE4 | Tray | Active | Through Hole, Right Angle | 4PDT | On-On | 50mA (AC/DC) | 48 V | 48 V | Locking Lever | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -20°C ~ 85°C |
|
|
MTA206RSWITCH TOGGLE DPDT 6A 125V |
100 | 3.50 |
|
Datasheet |
MTA Green | Bulk | Active | Panel Mount | DPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
