Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TX2SA-24V-ZRELAY TELECOM DPDT 2A 24V |
22,914 | 1.98 |
|
Datasheet |
TX | Tape & Reel (TR) | Active | Surface Mount | 24VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 5.8 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 18 VDC | 2.4 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
G6SK-2 DC3RELAY TELECOM DPDT 2A 3V |
2,438 | 3.70 |
|
Datasheet |
G6S | Tube | Active | Through Hole | 3VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 66.7 mA | Latching, Dual Coil | - | PC Pin | - | - | 2.25 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|

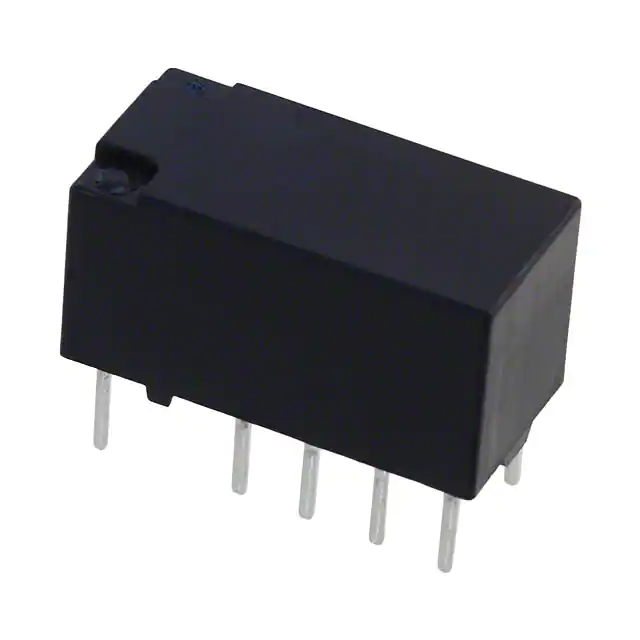

TX2-L2-5VRELAY TELECOM DPDT 2A 5V |
3,977 | 3.21 |
|
Datasheet |
TX | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 40 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 3.75 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
TQ2-5VRELAY TELECOM DPDT 1A 5V |
7,594 | 1.50 |
|
Datasheet |
TQ | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 28.1 mA | Non Latching | - | PC Pin | - | - | 3.75 VDC | 0.5 VDC | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
|
G6SK-2 DC12RELAY TELECOM DPDT 2A 12V |
1,895 | 3.89 |
|
Datasheet |
G6S | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 16.7 mA | Latching, Dual Coil | - | PC Pin | - | - | 9 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
G6S-2 DC3RELAY TELECOM DPDT 2A 3V |
2,470 | 3.32 |
|
Datasheet |
G6S | Tube | Active | Through Hole | 3VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 46.7 mA | Non Latching | - | PC Pin | - | - | 2.25 VDC | 0.3 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
2-1462038-1RELAY TELECOM DPDT 2A 5V |
2,002 | 3.02 |
|
Datasheet |
IM, AXICOM | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 20 mA | Latching, Single Coil | - | PC Pin | Sealed - Hermetically | - | 3.75 VDC | - | 3 ms | 3 ms | -40°C ~ 85°C | Palladium (Pd), Ruthenium (Ru), Gold (Au) | Telecom | - | - |
|
AGN210S03ZRELAY TELECOM DPDT 1A 3V |
1,840 | 1.70 |
|
Datasheet |
AGN | Tape & Reel (TR) | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 33.3 mA | Latching, Single Coil | - | Gull Wing | Sealed - Fully | - | 2.25 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|

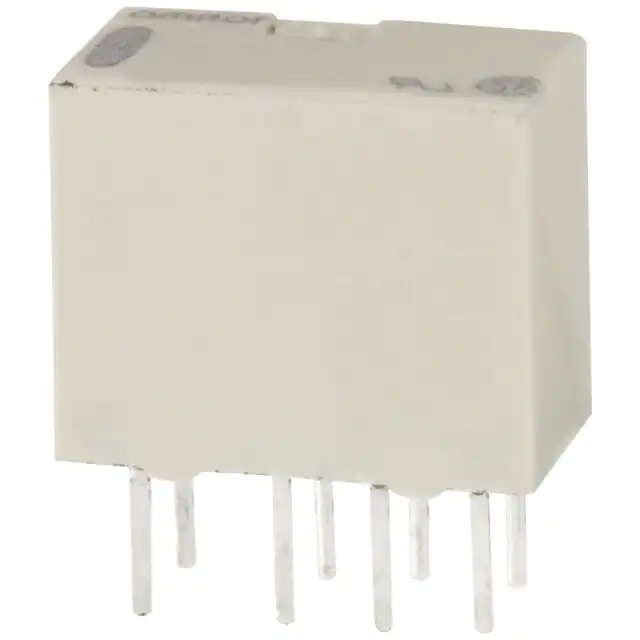

G6J-2P-Y DC12RELAY TELECOM DPDT 1A 12V |
15,917 | 3.98 |
|
Datasheet |
G6J-Y | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 12.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 3 ms | 3 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
G6L-1F-TR DC24RELAY TELECOM SPST 1A 24V |
259 | - |
|
Datasheet |
G6L | Tape & Reel (TR) | Active | Surface Mount | 24VDC | SPST-NO (1 Form A) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 9.6 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 18 VDC | 2.4 VDC | 5 ms | 5 ms | -40°C ~ 70°C | - | Telecom | - | - |
|
|
G6S-2-Y DC5RELAY TELECOM DPDT 2A 5V |
7,727 | 3.13 |
|
Datasheet |
G6S | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 40 mA | Non Latching | - | PC Pin | - | - | 3.75 VDC | 0.5 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
|
TX2SA-12VRELAY TELECOM DPDT 2A 12V |
3,004 | 2.30 |
|
Datasheet |
TX | Tube | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 11.7 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 9 VDC | 1.2 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
|
G6S-2-Y DC12RELAY TELECOM DPDT 2A 12V |
11,036 | 3.16 |
|
Datasheet |
G6S | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 16.7 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 1.2 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
|
G5V-2 DC48RELAY GEN PURPOSE DPDT 2A 48V |
4,156 | - |
|
Datasheet |
G5V-2 | Tube | Active | Through Hole | 48VDC | DPDT (2 Form C) | 2 A | 125VAC, 125VDC - Max | - | 12 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 36 VDC | 2.4 VDC | 7 ms | 3 ms | -25°C ~ 65°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
V23079A2001B301RELAY GENERAL PURPOSE DPDT 2A 5V |
3,175 | 3.05 |
|
Datasheet |
V23079, AXICOM | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 28 mA | Non Latching | - | PC Pin | - | - | 3.75 VDC | 0.5 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
TXS2SA-4.5V-ZRELAY GEN PURPOSE DPDT 1A 4.5V |
5,409 | 2.15 |
|
Datasheet |
TX-S | Tape & Reel (TR) | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 1 A | 110VDC - Max | 110W | 11.1 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 3.6 VDC | 0.45 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
TQ2SA-L2-5V-ZRELAY TELECOM DPDT 2A 5V |
1,691 | 2.12 |
|
Datasheet |
TQ-SMD | Tape & Reel (TR) | Active | Surface Mount | 5VDC | DPDT (2 Form C) | 2 A | 125VAC, 220VDC - Max | 250VA, 440W | 28.1 mA | Latching, Dual Coil | - | Gull Wing | - | - | 3.75 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|
|
G6S-2 DC12RELAY TELECOM DPDT 2A 12V |
5,327 | - |
|
Datasheet |
G6S | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 11.7 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 1.2 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
|
TQ2SA-L2-3VRELAY TELECOM DPDT 2A 3V |
3,261 | 3.46 |
|
Datasheet |
TQ-SMD | Tube | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 2 A | 125VAC, 220VDC - Max | 250VA, 440W | 46.7 mA | Latching, Dual Coil | - | Gull Wing | - | - | 2.25 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|

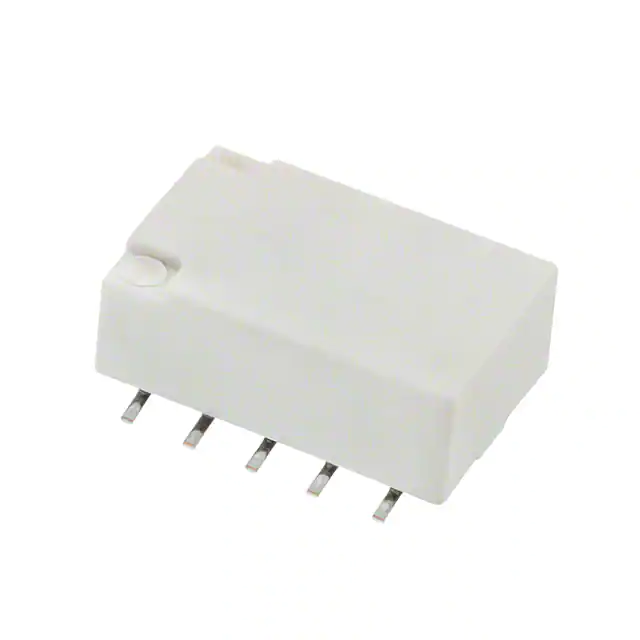

TQ2SA-5V-ZRELAY TELECOM DPDT 2A 5V |
1,998 | 1.10 |
|
Datasheet |
TQ-SMD | Tape & Reel (TR) | Active | Surface Mount | 5VDC | DPDT (2 Form C) | 2 A | 125VAC, 220VDC - Max | 250VA, 440W | 28.1 mA | Non Latching | - | Gull Wing | - | - | 3.75 VDC | 0.5 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
