Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

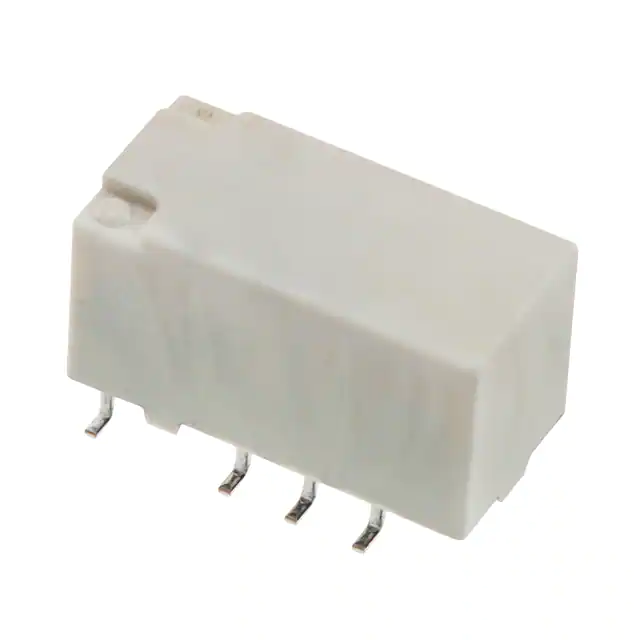

TX2SA-5V-ZRELAY TELECOM DPDT 2A 5V |
9,054 | 1.22 |
|
Datasheet |
TX | Tape & Reel (TR) | Active | Surface Mount | 5VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 28.1 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
G5V-1 DC5RELAY GENERAL PURPOSE SPDT 1A 5V |
7,956 | - |
|
Datasheet |
G5V-1 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4 VDC | 0.5 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G5V-1 DC12RELAY GEN PURPOSE SPDT 1A 12V |
7,385 | - |
|
Datasheet |
G5V-1 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 12.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9.6 VDC | 1.2 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G5V-1 DC9RELAY GENERAL PURPOSE SPDT 1A 9V |
6,838 | - |
|
Datasheet |
G5V-1 | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 7.2 VDC | 0.9 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
EB2-5NURELAY GENERAL PURPOSE DPDT 1A 5V |
2,969 | 2.01 |
|
Datasheet |
EB2 | Tube | Active | Surface Mount | 5VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 28 mA | Non Latching | - | Gull Wing | - | - | 3.75 VDC | 0.5 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
EE2-12NU-LRELAY GEN PURPOSE DPDT 2A 12V |
2,746 | 1.94 |
|
Datasheet |
EE2 | Tape & Reel (TR) | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 11.7 mA | Non Latching | - | Gull Wing | - | - | 9 VDC | 1.2 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
EC2-12NURELAY GEN PURPOSE DPDT 2A 12V |
4,764 | 1.96 |
|
Datasheet |
EC2 | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 11.7 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 1.2 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|

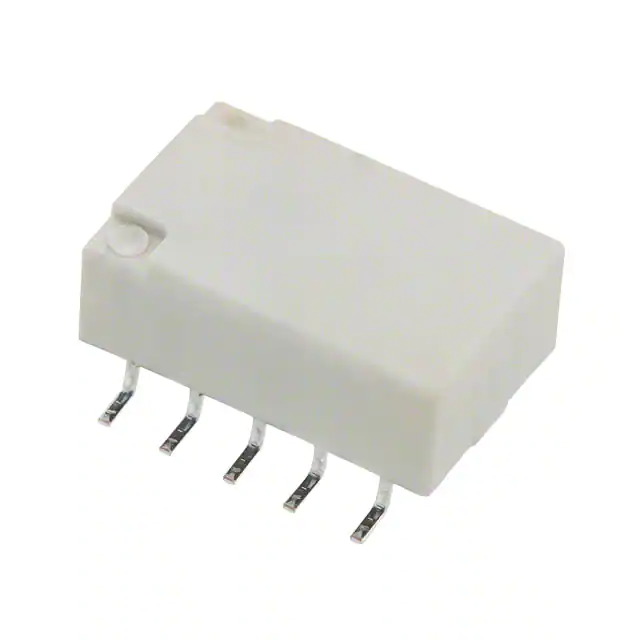

TQ2SA-12V-ZRELAY TELECOM DPDT 2A 12V |
2,335 | 1.33 |
|
Datasheet |
TQ-SMD | Tape & Reel (TR) | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 2 A | 125VAC, 220VDC - Max | 250VA, 440W | 11.7 mA | Non Latching | - | Gull Wing | - | - | 9 VDC | 1.2 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|
|
TQ2SA-12VRELAY TELECOM DPDT 2A 12V |
1,498 | 2.13 |
|
Datasheet |
TQ-SMD | Tube | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 2 A | 125VAC, 220VDC - Max | 250VA, 440W | 11.7 mA | Non Latching | - | Gull Wing | - | - | 9 VDC | 1.2 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|
|
TX2SA-12V-XRELAY TELECOM DPDT 2A 12V |
8,393 | 2.30 |
|
Datasheet |
TX | Tape & Reel (TR) | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 11.7 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 9 VDC | 1.2 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
|
EC2-12SNURELAY GEN PURPOSE DPDT 2A 12V |
6,720 | 2.01 |
|
Datasheet |
EC2 | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 8.3 mA | Latching, Single Coil | - | PC Pin | - | - | 9 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
EA2-5NURELAY GENERAL PURPOSE DPDT 1A 5V |
3,458 | 2.01 |
|
Datasheet |
EA2 | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 28 mA | Non Latching | - | PC Pin | - | - | 3.75 VDC | 0.5 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
UB2-5NURELAY GENERAL PURPOSE DPDT 1A 5V |
7,318 | 2.03 |
|
Datasheet |
UB2 | Tube | Active | Surface Mount | 5VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 28 mA | Non Latching | - | Gull Wing | - | - | 3.75 VDC | 0.5 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
TQ2SA-24VRELAY TELECOM DPDT 2A 24V |
6,178 | 2.17 |
|
Datasheet |
TQ-SMD | Tube | Active | Surface Mount | 24VDC | DPDT (2 Form C) | 2 A | 125VAC, 220VDC - Max | 250VA, 440W | 8.3 mA | Non Latching | - | Gull Wing | - | - | 18 VDC | 2.4 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|
|
TX2SA-5VRELAY TELECOM DPDT 2A 5V |
8,457 | 2.19 |
|
Datasheet |
TX | Tube | Active | Surface Mount | 5VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 28.1 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
EC2-24NURELAY GEN PURPOSE DPDT 2A 24V |
15,952 | 2.06 |
|
Datasheet |
EC2 | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 8.3 mA | Non Latching | - | PC Pin | - | - | 18 VDC | 2.4 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
UB2-5NUNRELAY GENERAL PURPOSE DPDT 1A 5V |
3,761 | 2.06 |
|
Datasheet |
UB2 | Tube | Active | Surface Mount | 5VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 28 mA | Non Latching | - | Gull Wing | - | - | 3.75 VDC | 0.5 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|

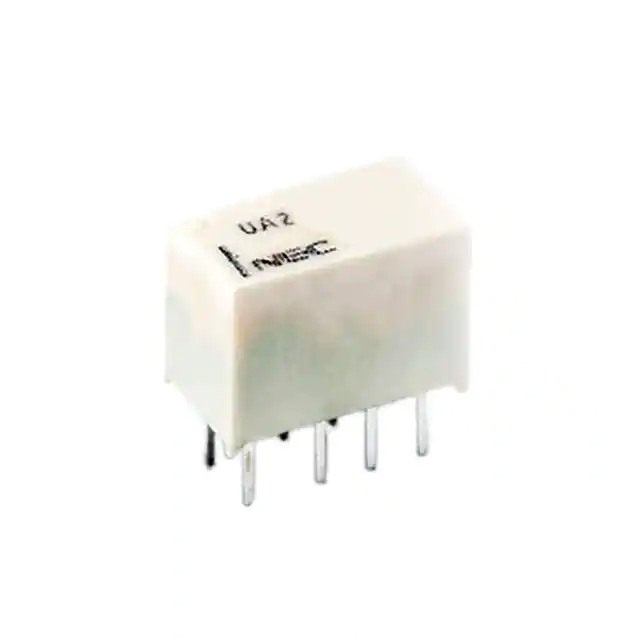

UA2-5NURELAY GENERAL PURPOSE DPDT 1A 5V |
9,054 | 2.08 |
|
Datasheet |
UA2 | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 28 mA | Non Latching | - | PC Pin | - | - | 3.75 VDC | 0.5 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|

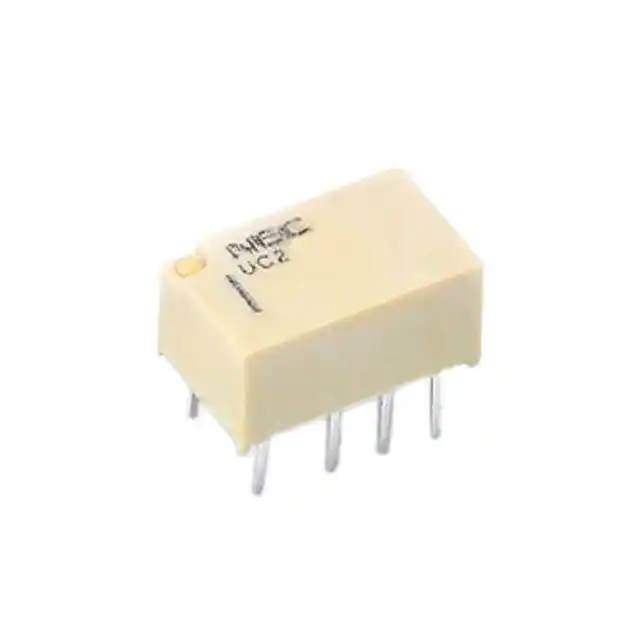

UC2-5NURELAY GENERAL PURPOSE DPDT 1A 5V |
5,594 | 2.08 |
|
Datasheet |
UC2 | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 28 mA | Non Latching | - | PC Pin | - | - | 3.75 VDC | 0.5 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
G5V-2 DC12RELAY GEN PURPOSE DPDT 2A 12V |
64,844 | - |
|
Datasheet |
G5V-2 | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 125VAC, 125VDC - Max | - | 41.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 0.6 VDC | 7 ms | 3 ms | -25°C ~ 65°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
