Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EE2-5TNURELAY GENERAL PURPOSE DPDT 2A 5V |
7,949 | 2.66 |
|
Datasheet |
EE2 | Tube | Active | Surface Mount | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 28 mA | Latching, Dual Coil | - | Gull Wing | - | - | 3.75 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
TX2-24VRELAY TELECOM DPDT 2A 24V |
4,999 | 2.84 |
|
Datasheet |
TX | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 5.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
IM01TSRELAY TELECOM DPDT 2A 3V |
2,240 | 2.56 |
|
Datasheet |
IM, AXICOM | Tube | Active | Through Hole | 3VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 46.7 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.25 VDC | 0.3 VDC | 3 ms | 3 ms | -40°C ~ 85°C | Palladium (Pd), Ruthenium (Ru), Gold (Au) | Telecom | - | - |
|
TXS2-L-3VRELAY GENERAL PURPOSE DPDT 1A 3V |
892 | 4.24 |
|
Datasheet |
TX-S | Tube | Active | Through Hole | 3VDC | DPDT (2 Form C) | 1 A | 110VDC - Max | 110W | 11.7 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 2.4 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|

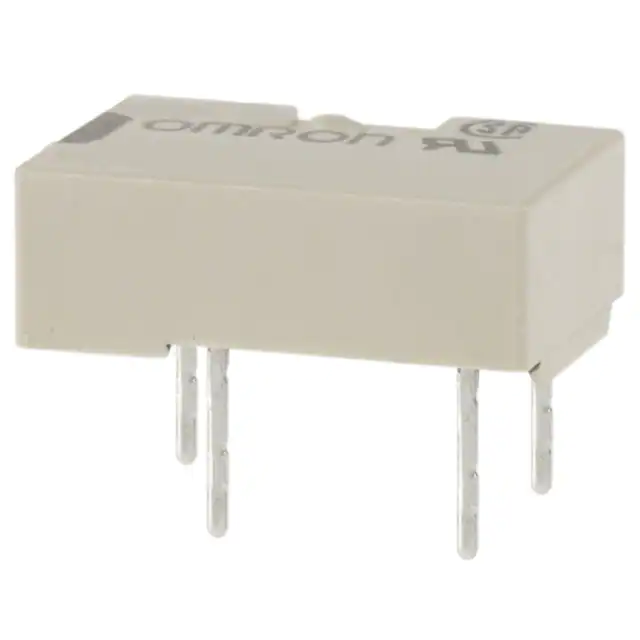

G6L-1P DC12RELAY TELECOM SPST 1A 12V |
3,241 | 2.67 |
|
Datasheet |
G6L | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 5 ms | 5 ms | -40°C ~ 70°C | - | Telecom | - | - |
|

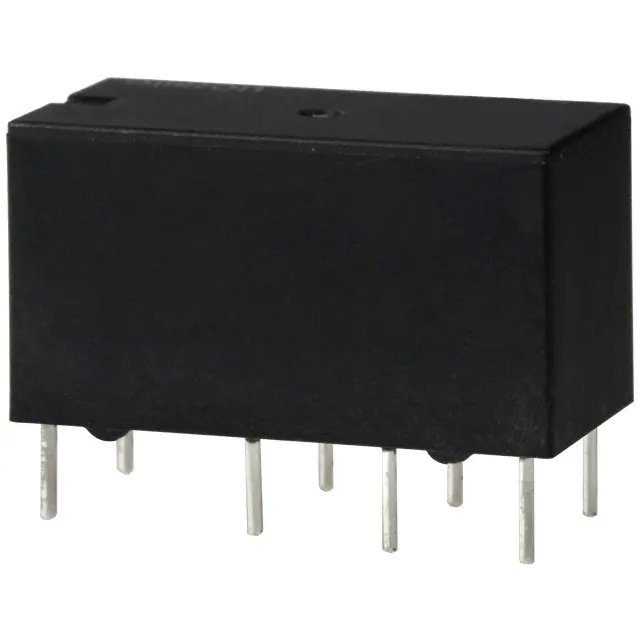

G5V-2 DC24RELAY GEN PURPOSE DPDT 2A 24V |
2,385 | - |
|
Datasheet |
G5V-2 | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 125VAC, 125VDC - Max | - | 20.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 1.2 VDC | 7 ms | 3 ms | -25°C ~ 65°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|

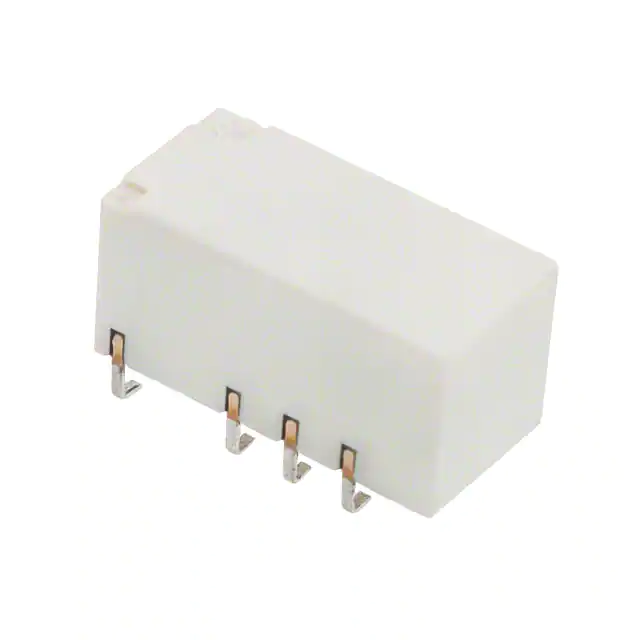

G6S-2G DC5RELAY TELECOM DPDT 2A 5V |
5,393 | 3.42 |
|
Datasheet |
G6S | Tube | Active | Surface Mount | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 28.1 mA | Non Latching | - | J Lead | - | - | 3.75 VDC | 0.5 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|

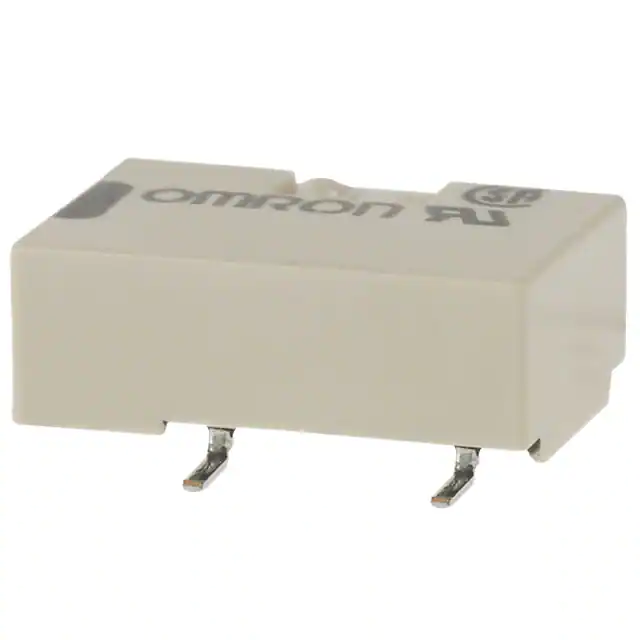

G6L-1F DC5RELAY TELECOM SPST 1A 5V |
1,057 | 2.70 |
|
Datasheet |
G6L | Tube | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 36 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 4 VDC | 0.5 VDC | 5 ms | 5 ms | -40°C ~ 70°C | - | Telecom | - | - |
|
TXS2-4.5VRELAY GEN PURPOSE DPDT 1A 4.5V |
15,428 | 3.70 |
|
Datasheet |
TX-S | Tube | Active | Through Hole | 4.5VDC | DPDT (2 Form C) | 1 A | 110VDC - Max | 110W | 11.1 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.6 VDC | 0.45 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G6L-1P DC24RELAY TELECOM SPST 1A 24V |
869 | - |
|
Datasheet |
G6L | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 9.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 5 ms | 5 ms | -40°C ~ 70°C | - | Telecom | - | - |
|
TXS2SA-12VRELAY GEN PURPOSE DPDT 1A 12V |
2,164 | 3.86 |
|
Datasheet |
TX-S | Tube | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 1 A | 110VDC - Max | 110W | 4.2 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 9.6 VDC | 1.2 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
5-1462037-9RELAY TELECOM DPDT 2A 5V |
8,127 | 2.68 |
|
Datasheet |
IM, AXICOM | Tape & Reel (TR) | Active | Surface Mount | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 20 mA | Latching, Single Coil | - | Gull Wing | Sealed - Hermetically | - | 3.75 VDC | - | 3 ms | 3 ms | -40°C ~ 85°C | Palladium (Pd), Ruthenium (Ru), Gold (Au) | Telecom | - | - |
, G6E-134P-ST-US-DC(3,5,9,12,24).jpg)
|

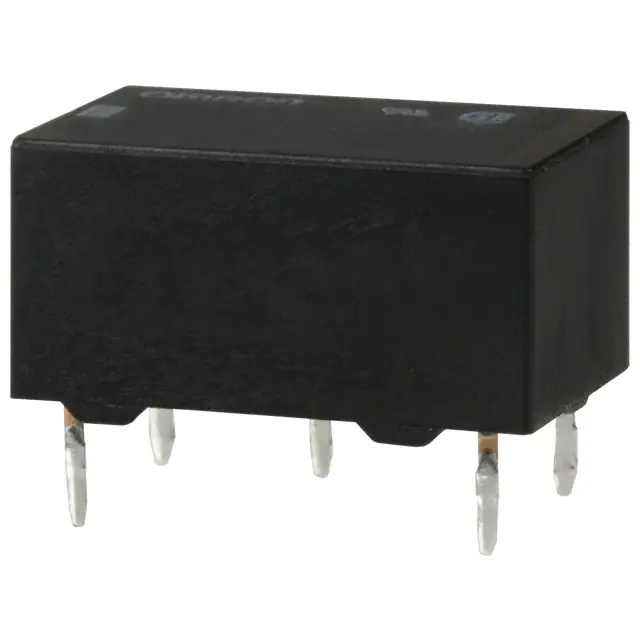

G6E-134P-US DC5RELAY GENERAL PURPOSE SPDT 2A 5V |
2,591 | 4.51 |
|
Datasheet |
G6E | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G5V-2-H DC12RELAY GEN PURPOSE DPDT 2A 12V |
2,809 | - |
|
Datasheet |
G5V-2 | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 125VAC, 125VDC - Max | - | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 0.6 VDC | 7 ms | 3 ms | -25°C ~ 65°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
DS1E-S-DC12VRELAY GEN PURPOSE SPDT 2A 12V |
1,054 | 3.06 |
|
Datasheet |
DS | Box | Active | Through Hole | 12VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9.6 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G5V-2-H DC5RELAY GENERAL PURPOSE DPDT 2A 5V |
144 | - |
|
Datasheet |
G5V-2 | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 125VAC, 125VDC - Max | - | 72 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.25 VDC | 7 ms | 3 ms | -25°C ~ 65°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G6L-1F DC24RELAY TELECOM SPST 1A 24V |
12,954 | - |
|
Datasheet |
G6L | Tube | Active | Surface Mount | 24VDC | SPST-NO (1 Form A) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 9.6 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 18 VDC | 2.4 VDC | 5 ms | 5 ms | -40°C ~ 70°C | - | Telecom | - | - |
|
G5V-2-H1 DC12RELAY GEN PURPOSE DPDT 1A 12V |
10,639 | 2.94 |
|
Datasheet |
G5V-2 | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 125VDC - Max | - | 12.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 0.6 VDC | 7 ms | 3 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|

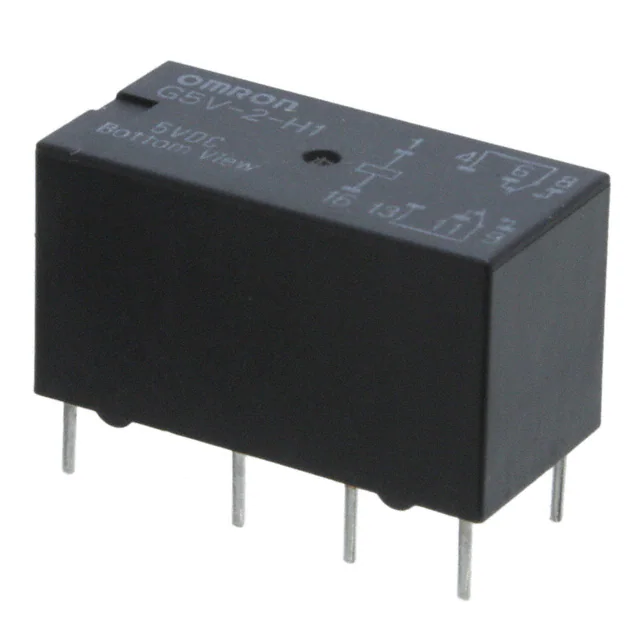

G5V-2-H1 DC5RELAY GENERAL PURPOSE DPDT 1A 5V |
6,427 | 2.94 |
|
Datasheet |
G5V-2 | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 125VDC - Max | - | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.25 VDC | 7 ms | 3 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G5V-2-H1 DC24RELAY GEN PURPOSE DPDT 1A 24V |
6,159 | 2.94 |
|
Datasheet |
G5V-2 | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 1 A | 125VAC, 125VDC - Max | - | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 1.2 VDC | 7 ms | 3 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
