Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PH9499.951CNLTINDUCTOR 0.95UH 3.5A ER11 SMD |
400 | 0.81 |
|
Datasheet |
PH9499.XXXCNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 950 nH | ±6% | 3.5 A | 28A | Unshielded | 22mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.441" L x 0.384" W (11.20mm x 9.75mm) | 0.299" (7.60mm) |
|
|
PH9499.122CNLTINDUCTOR 1.25UH 3.5A ER11 SMD |
400 | 0.81 |
|
Datasheet |
PH9499.XXXCNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.25 µH | ±6% | 3.5 A | 22A | Unshielded | 22mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.441" L x 0.384" W (11.20mm x 9.75mm) | 0.299" (7.60mm) |
|
WTX0420TR33MTR01FIXED IND 0.3320%UH 0.003OHM 181 |
1,093 | - |
|
Datasheet |
WT | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 330 nH | ±20% | 19.9 A | 15.7A | Unshielded | 3.2mOhm Max | - | 79MHz | - | -55°C ~ 155°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" (2.10mm) |
|
UP4B-220-RFIXED IND 22UH 4.5A 34 MOHM SMD |
105 | 0.76 |
|
Datasheet |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 4.5 A | 7.6A | Unshielded | 34mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.870" L x 0.591" W (22.10mm x 15.00mm) | 0.310" (7.87mm) |
|
ATCA-06-301M-VFIXED IND 300UH 5A 64 MOHM TH |
2,014 | 1.20 |
|
Datasheet |
ATCA | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 300 µH | ±20% | 5 A | - | Unshielded | 64mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.260" L x 0.630" W (32.00mm x 16.00mm) | - |
|
IHLP6767DZER6R8M01FIXED IND 6.8UH 13.2A 16MOHM SMD |
163 | 0.79 |
|
Datasheet |
IHLP-6767DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 13.2 A | 21A | Shielded | 16mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.157" (4.00mm) |
|

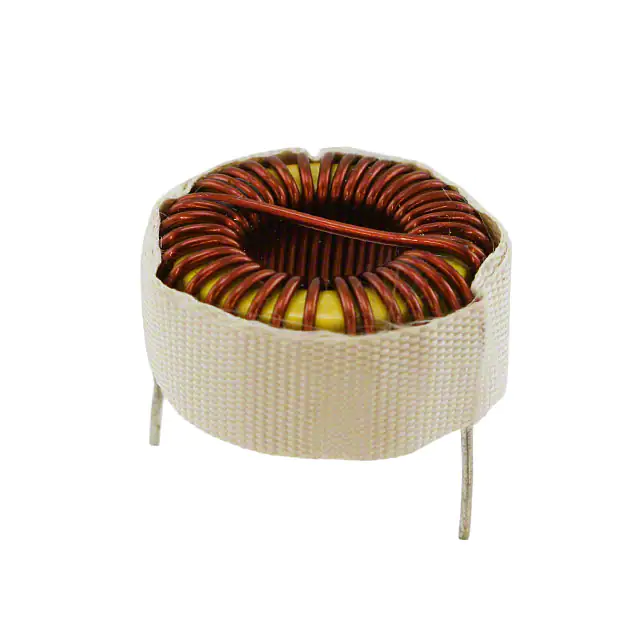

PE-92408NLFIXED IND 67UH 3.6A 45 MOHM TH |
548 | 0.79 |
|
Datasheet |
- | Radial, Horizontal (Open) | Tray | Active | Toroidal | - | 67 µH | ±20% | 3.6 A | - | Unshielded | 45mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.050" Dia (26.67mm) | 0.550" (13.97mm) |
|
|
78433291500WE-CHSA PERFORMANCE SMD HIGH CUR |
297 | - |
|
Datasheet |
WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 15 µH | ±20% | 5.4 A | 9.8A | Shielded | 43.1mOhm Max | - | 23MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
|
|
78433290820WE-CHSA PERFORMANCE SMD HIGH CUR |
199 | - |
|
Datasheet |
WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 8.2 µH | ±20% | 7.1 A | 13.7A | Shielded | 21.5mOhm Max | - | 32MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
|
|
78433290750WE-CHSA PERFORMANCE SMD HIGH CUR |
192 | - |
|
Datasheet |
WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 7.5 µH | ±20% | 7.8 A | 14.6A | Shielded | 20.35mOhm Max | - | 34MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
|
|
78433290510WE-CHSA PERFORMANCE SMD HIGH CUR |
190 | - |
|
Datasheet |
WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 5.1 µH | ±20% | 9.8 A | 17A | Shielded | 11.9mOhm Max | - | 40MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
|
|
78433290620WE-CHSA PERFORMANCE SMD HIGH CUR |
188 | - |
|
Datasheet |
WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 6.2 µH | ±20% | 8.8 A | 16A | Shielded | 15mOhm Max | - | 37MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
|
|
78433290240WE-CHSA PERFORMANCE SMD HIGH CUR |
185 | - |
|
Datasheet |
WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 2.4 µH | ±20% | 13.8 A | 24.8A | Shielded | 6.4mOhm Max | - | 60MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
|
|
78433290200WE-CHSA PERFORMANCE SMD HIGH CUR |
184 | - |
|
Datasheet |
WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 2 µH | ±20% | 16.2 A | 29A | Shielded | 4.7mOhm Max | - | 64MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
|
IHSM7832ER101LFIXED IND 100UH 1.7A 226MOHM SMD |
2,260 | 1.12 |
|
Datasheet |
IHSM-7832 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±15% | 1.7 A | 680mA | Unshielded | 226mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.285" (7.24mm) |
|
DRA125-821-RFIXED IND 820UH 632MA 1.36OHM SM |
1,190 | 0.64 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 820 µH | ±20% | 632 mA | 758mA | Shielded | 1.36Ohm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|

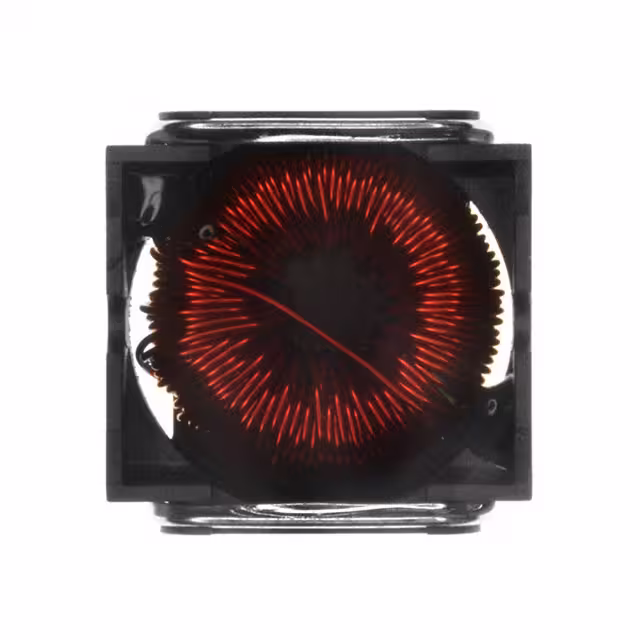

PE-53935SNLFIXED IND 250UH 1.5A 230MOHM SMD |
417 | 0.74 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 250 µH | ±20% | 1.5 A | - | Shielded | 230mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|

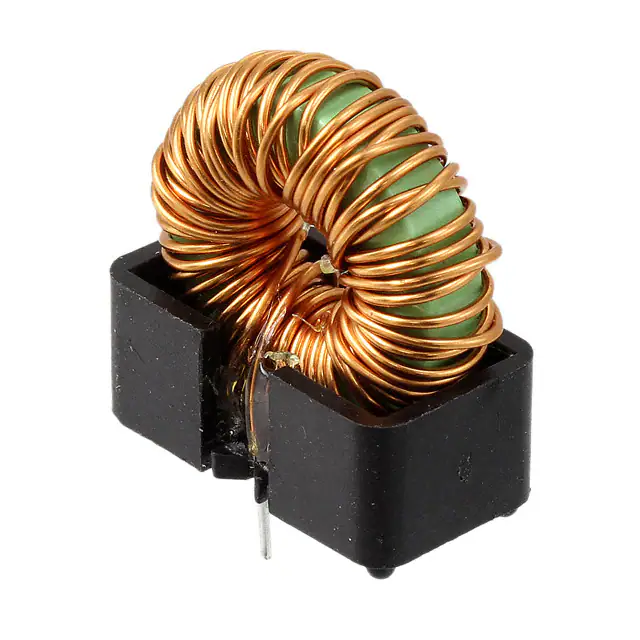

PE-54044NLFIXED IND 77UH 3A 80 MOHM TH |
1,101 | 0.80 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 77 µH | ±20% | 3 A | - | Shielded | 80mOhm | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | 0.950" (24.13mm) |
|
2201-H-RCFIXED IND 10UH 12.5A 7 MOHM TH |
1,015 | 0.80 |
|
Datasheet |
2200 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±15% | 12.5 A | - | Shielded | 7mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
MGDQ6-00006-PFIXED IND 4.7UH 16 MOHM SMD |
900 | 0.76 |
|
Datasheet |
MGDQ6, Coev | Nonstandard | Bulk | Active | - | - | 4.7 µH | ±20% | - | 13.5A | Unshielded | 16mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
