Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2200HT-561-V-RCFIXED IND 560UH 2.7A 230 MOHM TH |
127 | 0.84 |
|
Datasheet |
2200HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 560 µH | ±15% | 2.7 A | - | Shielded | 230mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
SHBC10-0R8A0038VCMC 38UH 3A 2LN TH |
181 | 0.64 |
|
Datasheet |
SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 38 µH | ±20% | 3 A | - | Unshielded | 31.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 0.846" Dia (21.50mm) | 0.846" (21.50mm) |
|
4590R-395KFIXED IND 3.9MH 480MA 2.84OHM TH |
747 | 1.13 |
|
Datasheet |
4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.9 mH | ±10% | 480 mA | 290mA | Unshielded | 2.84Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
2217-H-RCFIXED IND 270UH 3.4A 92 MOHM TH |
384 | 0.85 |
|
Datasheet |
2200 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 270 µH | ±15% | 3.4 A | - | Shielded | 92mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
AMDLA1707Q-3R3MTFIXED IND 3.3UH 30A 3.3 MOHM SMD |
169 | 1.04 |
|
Datasheet |
AMDLA1707Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 30 A | 32A | Shielded | 3.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
7843250072WE-HCIA SMT FLAT WIRE HIGH CURRE |
667 | 0.84 |
|
Datasheet |
WE-HCIA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 720 nH | ±20% | 22 A | 36.1A | Shielded | 1.38mOhm Max | - | 103MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.394" W (10.50mm x 10.00mm) | 0.182" (4.63mm) |
|
|
784325024WE-HCIA SMT FLAT WIRE HIGH CURRE |
339 | 0.84 |
|
Datasheet |
WE-HCIA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.4 µH | ±20% | 14 A | 20.7A | Shielded | 5.4mOhm Max | - | 55MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.394" W (10.50mm x 10.00mm) | 0.182" (4.63mm) |
|
IHA102BAFIXED IND 100UH 2.1A 160 MOHM TH |
329 | 0.84 |
|
Datasheet |
IHA | Axial | - | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 2.1 A | - | Unshielded | 160mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.475" Dia x 0.800" L (12.07mm x 20.32mm) | - |
|
IHLE5050FHER2R2M5AIHLE-5050FH-5A 2.2 20% ER E3 |
734 | 0.88 |
|
Datasheet |
IHLE-5050FH-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 2.2 µH | ±20% | 25.5 A | 21.5A | Shielded | 3.67mOhm Max | - | 23.3MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.535" W (13.97mm x 13.59mm) | 0.268" (6.80mm) |
|
|
IHLE5050FHER6R8M5AIHLE-5050FH-5A 6.8 20% ER E3 |
680 | 0.88 |
|
Datasheet |
IHLE-5050FH-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 6.8 µH | ±20% | 14.9 A | 14.1A | Shielded | 12.09mOhm Max | - | 13.3MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.535" W (13.97mm x 13.59mm) | 0.268" (6.80mm) |
|
177CDMCCDS-1R0MCFIXED IND 1UH 44.6A 1.38MOHM SMD |
342 | 0.90 |
|
Datasheet |
177CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 44.6 A | 60.8A | Shielded | 1.38mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
PA4344.102NLTFIXED IND 1UH 52A 2 MOHM SMD |
1,052 | 0.91 |
|
Datasheet |
PA4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | - | 52 A | 60A | Shielded | 2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|

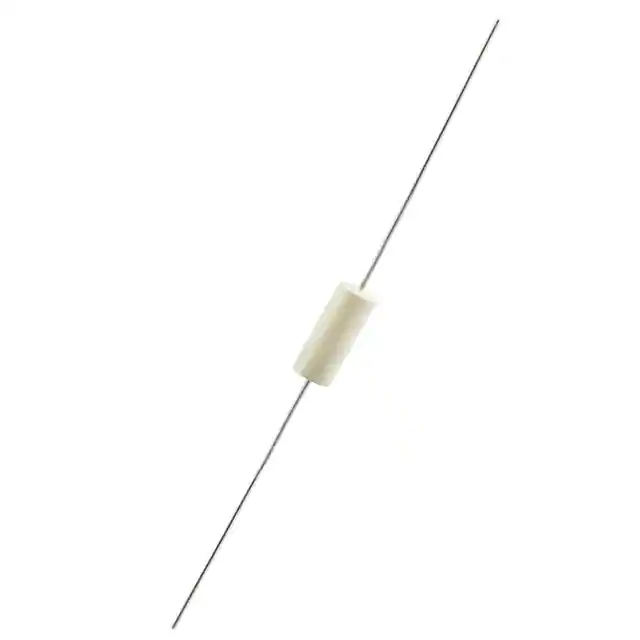

1840-26KFIXED IND 6.8UH 580MA 375MOHM TH |
964 | 0.65 |
|
Datasheet |
Military, MIL-PRF-M15305, MS75101 | Axial | Tape & Reel (TR) | Active | - | Iron | 6.8 µH | ±10% | 580 mA | - | Unshielded | 375mOhm Max | 35 @ 7.9MHz | 50MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
PQ2617BHA-3R3KFIXED IND 3.3UH 28A 2.5 MOHM SMD |
470 | 0.91 |
|
Datasheet |
PQ2617BHA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 28 A | 92.5A | Shielded | 2.5mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.748" (19.00mm) |
|
PE-53820SNLFIXED IND 115UH 670MA 400MOHM SM |
222 | 0.83 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 115 µH | ±20% | 670 mA | - | Shielded | 400mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
744313120FIXED IND 1.2UH 17A 2.85MOHM SMD |
167 | 0.85 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.2 µH | ±20% | 17 A | 28A | Shielded | 2.85mOhm | - | 58MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 1335 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.138" (3.50mm) |
|
WTX0614H2R2LTFIXED IND 2.215%UH 0.030OHM 6600 |
1,970 | - |
|
Datasheet |
WT | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±15% | - | - | Unshielded | - | - | - | - | -55°C ~ 155°C | 1 MHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.055" (1.40mm) |
|
|
WTX0614H3R3KTFIXED IND 3.310%UH 0.050OHM 5500 |
1,898 | - |
|
Datasheet |
WT | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±10% | - | - | Unshielded | - | - | - | - | -55°C ~ 155°C | 1 MHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.055" (1.40mm) |
|
CTX20-2-52M-RFIXED IND 20UH 3.2A 39.2 MOHM TH |
1,382 | 0.96 |
|
Datasheet |
CTX | Radial, Horizontal, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 20 µH | ±20% | 3.2 A | 3.2A | Unshielded | 39.2mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.535" L x 0.449" W (13.60mm x 11.40mm) | 0.449" (11.40mm) |
|
|
2100HT-331-V-RCFIXED IND 330UH 2.7A 160 MOHM TH |
308 | 0.88 |
|
Datasheet |
2100HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 330 µH | ±15% | 2.7 A | - | Shielded | 160mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
