Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

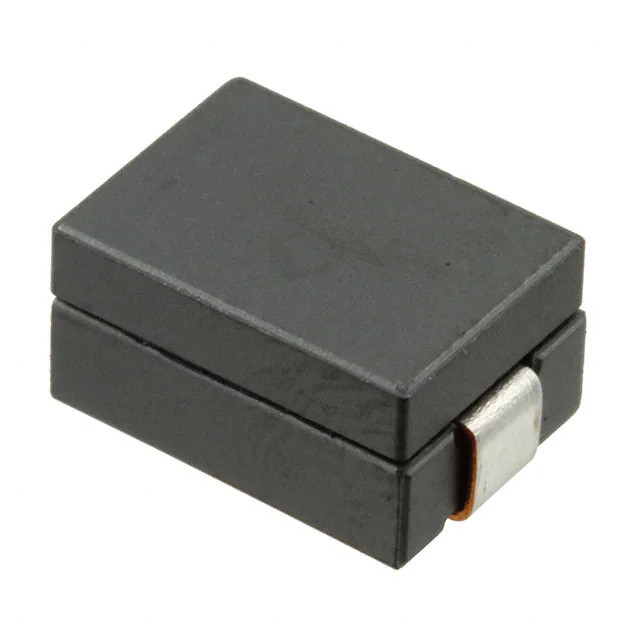

VLB10050HT-R12MFIXED IND 120NH 31A 0.35MOHM SMD |
8,609 | 0.75 |
|
Datasheet |
VLB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±20% | 31 A | 68A | Unshielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.386" L x 0.264" W (9.80mm x 6.70mm) | 0.197" (5.00mm) |
|
MPLCV1054L100FIXED IND 10UH 7.1A 25 MOHM SMD |
2,320 | 0.73 |
|
Datasheet |
MPLCV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 10 µH | ±20% | 7.1 A | 12A | Shielded | 25mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.213" (5.40mm) |
|
MPCV1260L1R5FIXED IND 1.5UH 28A 2.31MOHM SMD |
274 | 0.72 |
|
Datasheet |
MPCV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1.5 µH | ±20% | 28 A | 35A | Shielded | 2.31mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.492" W (14.50mm x 12.50mm) | 0.236" (6.00mm) |
|
PE-53821SNLTFIXED IND 78UH 820MA 300MOHM SMD |
2,021 | 0.40 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 78 µH | ±20% | 820 mA | - | Shielded | 300mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
PE-53828SNLFIXED IND 168UH 1.02A 400MOHM SM |
1,199 | 0.64 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 168 µH | ±20% | 1.02 A | - | Shielded | 400mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
PE-53683NLTFIXED IND 9.4UH 10.9A 12.3 MOHM |
1,103 | 0.67 |
|
Datasheet |
SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 9.4 µH | - | 10.9 A | - | Unshielded | 12.3mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.390" (9.91mm) |
|

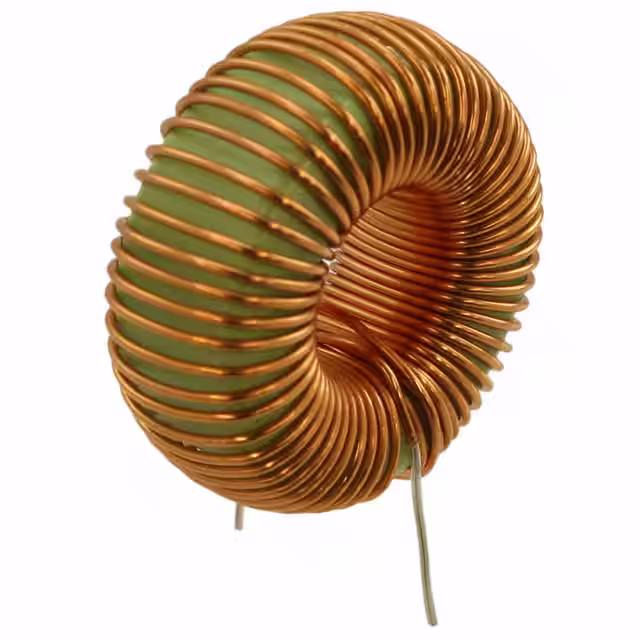

PE-92106NLFIXED IND 285UH 3A 140 MOHM TH |
615 | - |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 285 µH | ±20% | 3 A | - | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.400" Dia x 0.700" W (35.56mm x 17.78mm) | - |
|

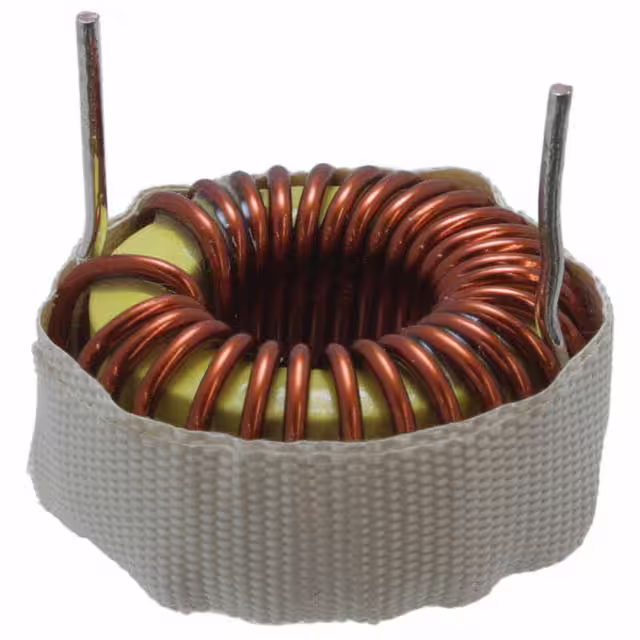

PE-92414NLFIXED IND 35.6UH 5A 23 MOHM TH |
592 | 1.06 |
|
Datasheet |
- | Radial, Horizontal (Open) | Tray | Active | Toroidal | - | 35.6 µH | ±20% | 5 A | - | Unshielded | 23mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.050" Dia (26.67mm) | 0.550" (13.97mm) |
|
|
MPLCV1054L220FIXED IND 22UH 5.5A 47 MOHM SMD |
3,823 | 0.73 |
|
Datasheet |
MPLCV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 22 µH | ±20% | 5.5 A | 7A | Shielded | 47mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.213" (5.40mm) |
|
DRA124-1R0-RFIXED IND 1UH 11.65A 3.1MOHM SMD |
1,504 | 0.62 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 11.65 A | 22A | Shielded | 3.1mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
MPX1D1235LR22FIXED IND 220NH 35.2A 1.6MOHM SM |
472 | 0.72 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 220 nH | ±20% | 35.2 A | 75A | Shielded | 1.6mOhm Max | - | 100MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.138" (3.50mm) |
|
|
MPX1D1250LR22FIXED IND 220NH 42.7A 1.2MOHM SM |
240 | 0.72 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 220 nH | ±20% | 42.7 A | 85A | Shielded | 1.2mOhm Max | - | 95MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|
|
MPX1D1264L1R5FIXED IND 1.5UH 28.8A 2.9MOHM SM |
238 | 0.72 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1.5 µH | ±20% | 28.8 A | 35.5A | Shielded | 2.9mOhm Max | - | 24MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.252" (6.40mm) |
|
|
MPX1D1250L150FIXED IND 15UH 8.2A 30.8MOHM SMD |
219 | 0.72 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 15 µH | ±20% | 8.2 A | 11A | Shielded | 30.8mOhm Max | - | 7MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|
FP3-100-RFIXED IND 10UH 2.3A 101 MOHM SMD |
1,247 | 0.69 |
|
Datasheet |
FLAT-PAC 3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±15% | 2.3 A | 3A | Shielded | 101mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.264" W (7.25mm x 6.70mm) | 0.118" (3.00mm) |
|
7447798180FIXED IND 1.8UH 14.5A 4.5MOHM SM |
524 | 0.71 |
|
Datasheet |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 1.8 µH | ±30% | 14.5 A | 12.8A | Shielded | 4.5mOhm Max | - | 74MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
|

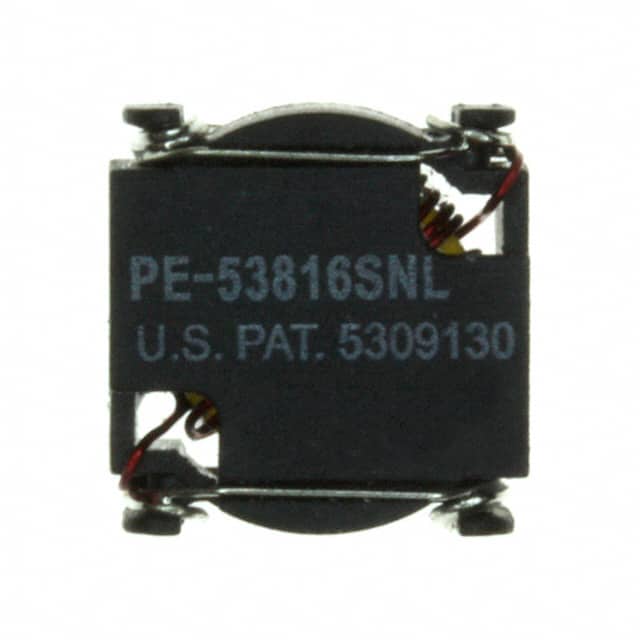

PE-53816SNLFIXED IND 17UH 1.02A 100MOHM SMD |
213 | 0.64 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 17 µH | ±20% | 1.02 A | - | Shielded | 100mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
IHLE5050FHER150M5AIHLE-5050FH-5A 15 20% ER E3 |
329 | 0.88 |
|
Datasheet |
IHLE-5050FH-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 15 µH | ±20% | 10.1 A | 7.7A | Shielded | 25.68mOhm Max | - | 8.8MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.535" W (13.97mm x 13.59mm) | 0.268" (6.80mm) |
|
|
DRA124-681-RFIXED IND 680UH 466MA 1.96OHM SM |
750 | 0.66 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 466 mA | 759mA | Shielded | 1.96Ohm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
7445430FIXED IND 1MH 220MA 3.2OHM SMD |
590 | 0.38 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 1 mH | ±10% | 220 mA | 350mA | Shielded | 3.2Ohm Max | - | 2.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
