Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW2UASR18F00LFIXED IND 180NH 620MA 770MOHM SM |
1,889 | 0.36 |
|
Datasheet |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 180 nH | ±1% | 620 mA | - | Unshielded | 770mOhm Max | 45 @ 100MHz | 750MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
36502CR39JTDGFIXED IND 390NH 470MA 1.12OHM SM |
1,810 | 0.39 |
|
Datasheet |
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 390 nH | ±5% | 470 mA | - | Unshielded | 1.12Ohm Max | 45 @ 100MHz | 500MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
|
36502C47NJTDGFIXED IND 47NH 1A 160 MOHM SMD |
1,805 | 0.39 |
|
Datasheet |
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 47 nH | ±5% | 1 A | - | Unshielded | 160mOhm Max | 65 @ 350MHz | 1.5GHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
|
36501J3N6JTDGFIXED IND 3.6NH 700MA 63MOHM SMD |
1,799 | 0.39 |
|
Datasheet |
3650, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 3.6 nH | ±5% | 700 mA | - | Unshielded | 63mOhm Max | 22 @ 250MHz | 5.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
36502A12NJTDGFIXED IND 12NH 600MA 150MOHM SMD |
1,617 | 0.39 |
|
Datasheet |
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 12 nH | ±5% | 600 mA | - | Unshielded | 150mOhm Max | 50 @ 500MHz | 4GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
36502C2R2JTDGFIXED IND 2.2UH 280MA 2.8OHM SMD |
1,538 | 0.39 |
|
Datasheet |
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 2.2 µH | ±5% | 280 mA | - | Unshielded | 2.8Ohm Max | 28 @ 50MHz | 160MHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
|
36502CR27JTDGFIXED IND 270NH 500MA 910MOHM SM |
1,495 | 0.39 |
|
Datasheet |
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 270 nH | ±5% | 500 mA | - | Unshielded | 910mOhm Max | 45 @ 100MHz | 600MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
|
36501J51NJTDGFIXED IND 51NH 600MA 280MOHM SMD |
1,473 | 0.39 |
|
Datasheet |
3650, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 51 nH | ±5% | 600 mA | - | Unshielded | 280mOhm Max | 35 @ 250MHz | 1.9GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
36502A15NJTDGFIXED IND 15NH 600MA 170MOHM SMD |
1,320 | 0.39 |
|
Datasheet |
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 15 nH | ±5% | 600 mA | - | Unshielded | 170mOhm Max | 50 @ 500MHz | 3.4GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
36502CR56JTDGFIXED IND 560NH 400MA 1.33OHM SM |
1,290 | 0.39 |
|
Datasheet |
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 560 nH | ±5% | 400 mA | - | Unshielded | 1.33Ohm Max | 45 @ 100MHz | 415MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
|
LQW2UAS82NF00LFIXED IND 82NH 1A 220 MOHM SMD |
1,278 | 0.36 |
|
Datasheet |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 82 nH | ±1% | 1 A | - | Unshielded | 220mOhm Max | 60 @ 350MHz | 1GHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
|
36501J10NJTDGFIXED IND 10NH 700MA 130MOHM SMD |
1,265 | 0.39 |
|
Datasheet |
3650, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 10 nH | ±5% | 700 mA | - | Unshielded | 130mOhm Max | 31 @ 250MHz | 4.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
36501JR11JTDGFIXED IND 110NH 300MA 610MOHM SM |
1,224 | 0.39 |
|
Datasheet |
3650, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 110 nH | ±5% | 300 mA | - | Unshielded | 610mOhm Max | 32 @ 250MHz | 1.35GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
36501J47NJTDGFIXED IND 47NH 600MA 280MOHM SMD |
1,213 | 0.39 |
|
Datasheet |
3650, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 47 nH | ±5% | 600 mA | - | Unshielded | 280mOhm Max | 38 @ 250MHz | 2GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
VLS252010ET-1R0N-CAFIXED IND 1UH 1.9A 84 MOHM SMD |
1,145 | 0.44 |
|
Datasheet |
VLS-E-CA | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 1.9 A | 1.75A | Shielded | 84mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
SRN5020TA-1R5YFIXED IND 1.5UH 3.5A 25MOHM SMD |
1,138 | 0.44 |
|
Datasheet |
SRN5020TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 3.5 A | 4.5A | Shielded | 25mOhm | 15 @ 100kHz | 112MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
PF0580.222NLFIXED IND 2.2UH 2.2A 49 MOHM SMD |
4,150 | - |
|
Datasheet |
PF0580NL | Nonstandard | Tray | Active | Wirewound | - | 2.2 µH | ±15% | 2.2 A | 2.2A | Unshielded | 49mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
|

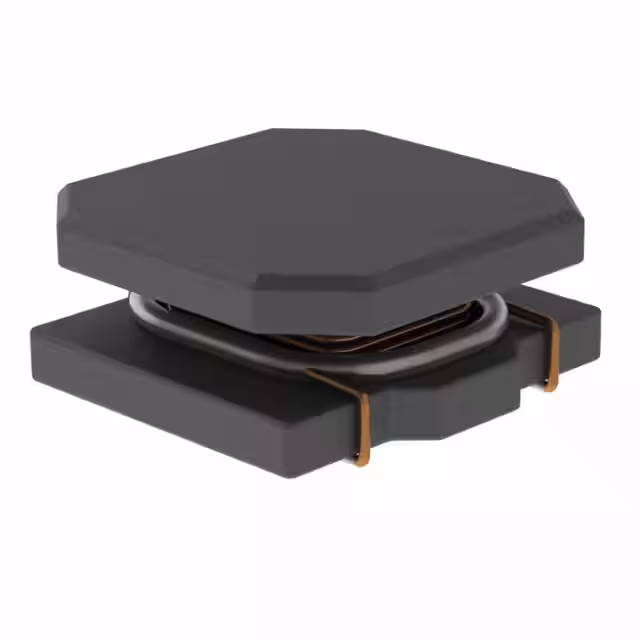

PA4336.103NLTFIXED IND 10UH 900MA 215MOHM SMD |
7,264 | 0.46 |
|
Datasheet |
PA4336.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 10 µH | ±20% | 900 mA | 1.6A | Shielded | 215mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
LBCNF1608KKTR33MADFIXED IND 0.33UH SMD |
5,950 | - |
|
Datasheet |
LBCN | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 330 nH | ±20% | 3.3 A | 2.8A | Unshielded | 46mOhm Max | - | - | - | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LBCNF1608KKTR47MADFIXED IND 0.47UH SMD |
5,546 | - |
|
Datasheet |
LBCN | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 470 nH | ±20% | 3 A | 2.6A | Unshielded | 65mOhm Max | - | - | - | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
