Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

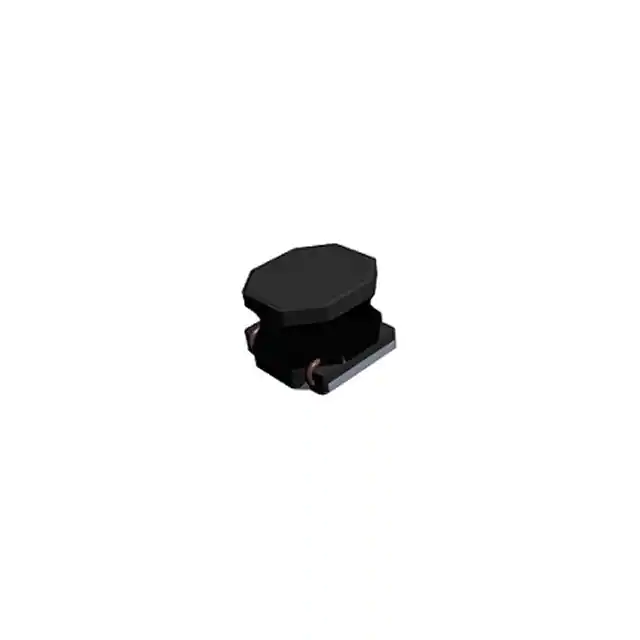

NRM6045T2R2NMRRVFIXED IND 2.2UH 3A 23 MOHM SMD |
1,514 | 0.44 |
|
Datasheet |
NR, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 3 A | 8.5A | Unshielded | 23mOhm Max | - | 36MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
NRM6045T330MMRRVFIXED IND 33UH 750MA 216MOHM SMD |
1,402 | 0.44 |
|
Datasheet |
NR, M Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 750 mA | - | Unshielded | 216mOhm Max | - | 7.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

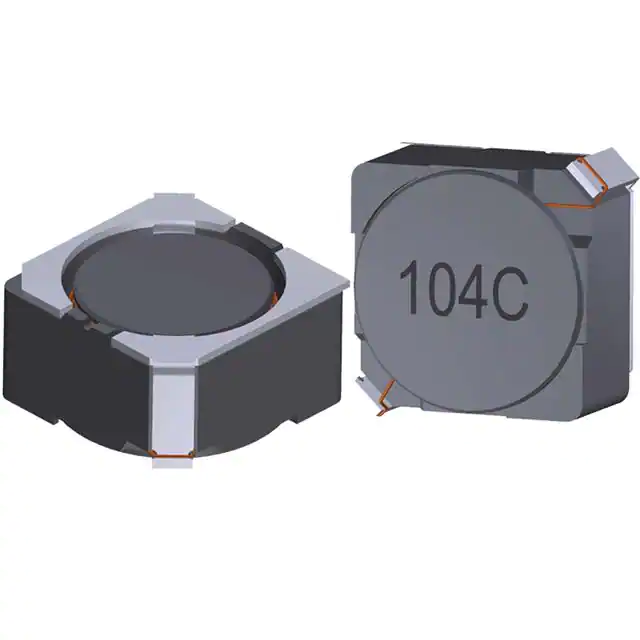

29105CFIXED IND 1MH 180MA 4.1 OHM SMD |
1,186 | 1.12 |
|
Datasheet |
2900 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | - | 180 mA | - | Shielded | 4.1Ohm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.157" (4.00mm) |
|
MHQ0603P0N8BTD25FIXED IND 0.8NH 1A 70 MOHM SMD |
16,617 | 0.45 |
|
Datasheet |
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 0.8 nH | ±0.1nH | 1 A | - | Unshielded | 70mOhm Max | - | 10GHz | AEC-Q200 | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
SRP2510A-1R5MFIXED IND 1.5UH 2.5A 91 MOHM SMD |
8,846 | 0.46 |
|
Datasheet |
SRP2510A | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 2.5 A | 2.6A | Shielded | 91mOhm Max | 35 @ 1MHz | 68MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
.jpg)
|
B82422A1332J100FIXED IND 3.3UH 200MA 1.2OHM SMD |
7,931 | 0.50 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±5% | 200 mA | - | Unshielded | 1.2Ohm Max | 27 @ 7.96MHz | 110MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
LBCNF1608KKTR24MADFIXED IND 0.24UH SMD |
5,990 | - |
|
Datasheet |
LBCN | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 240 nH | ±20% | 3.8 A | 3.2A | Unshielded | 35mOhm Max | - | - | - | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
.jpg)
|
252010CDMCDDS-R68MCFIXED IND 680NH 4.2A 37 MOHM SMD |
5,961 | 0.47 |
|
Datasheet |
252010CDMCD/DS | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 680 nH | ±20% | 4.2 A | 3.7A | Shielded | 37mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
VLS3015ET-3R3M-CAFIXED IND 3.3UH 1.5A 112MOHM SMD |
5,253 | 0.44 |
|
Datasheet |
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.5 A | 1.15A | Shielded | 112mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|

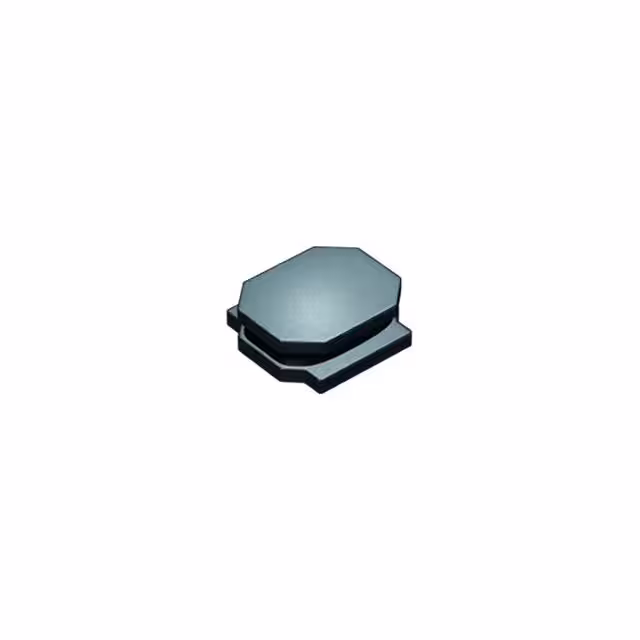

LCXND6060WKL1R5NMGFIXED IND 1.5UH 3.6A 31.2MOHM SM |
4,969 | 0.46 |
|
Datasheet |
LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 3.6 A | 4.3A | Unshielded | 26mOhm | - | 93MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
|
B82422A1223J100FIXED IND 22UH 140MA 2.65OHM SMD |
3,916 | 0.50 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±5% | 140 mA | - | Unshielded | 2.65Ohm Max | 27 @ 2.52MHz | 16MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
B82422A1182J100FIXED IND 1.8UH 290MA 600MOHM SM |
3,865 | 0.50 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±5% | 290 mA | - | Unshielded | 600mOhm Max | 25 @ 7.96MHz | 250MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
MHQ0603P4N3HTD25FIXED IND 4.3NH 400MA 350MOHM SM |
3,532 | 0.45 |
|
Datasheet |
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 4.3 nH | ±3% | 400 mA | - | Unshielded | 350mOhm Max | 16 @ 500MHz | 6GHz | AEC-Q200 | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|

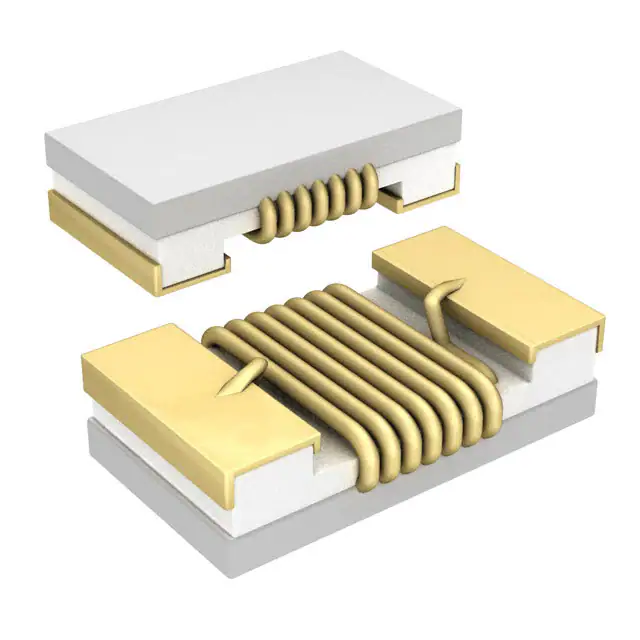

744765123AFIXED IND 23NH 400MA 214MOHM SMD |
3,000 | 0.38 |
|
Datasheet |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 23 nH | ±5% | 400 mA | - | Unshielded | 214mOhm Max | 26 @ 250MHz | 2.72GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
LQW18CN15NJ0ZDFIXED IND 15NH 2.2A 25 MOHM SMD |
3,000 | 0.44 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 nH | ±5% | 2.2 A | - | Unshielded | 25mOhm Max | - | 2GHz | AEC-Q200 | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|

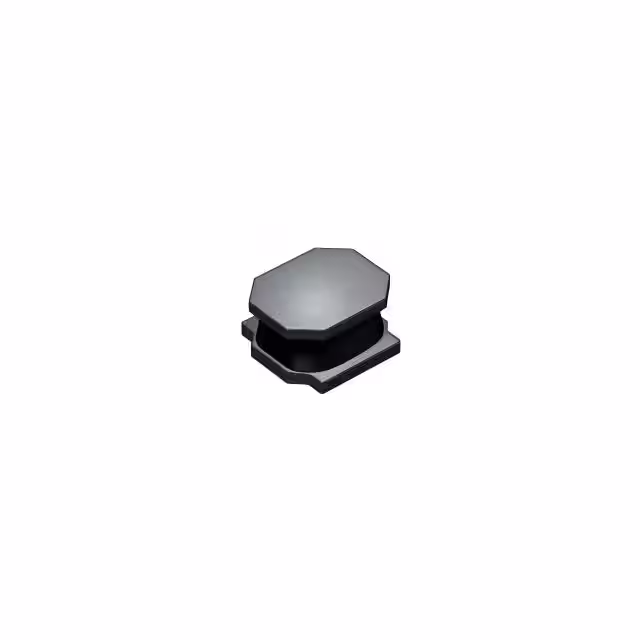

LCXND6060YEL1R3NMGFIXED IND 1.3UH 4.2A 20.8MOHM SM |
2,952 | 0.47 |
|
Datasheet |
LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.3 µH | ±30% | 4.2 A | 8.2A | Unshielded | 16mOhm | - | 95MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
MHQ0603P9N1HTD25FIXED IND 9.1NH 250MA 900MOHM SM |
2,950 | 0.45 |
|
Datasheet |
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 9.1 nH | ±3% | 250 mA | - | Unshielded | 900mOhm Max | 16 @ 500MHz | 3.8GHz | AEC-Q200 | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|

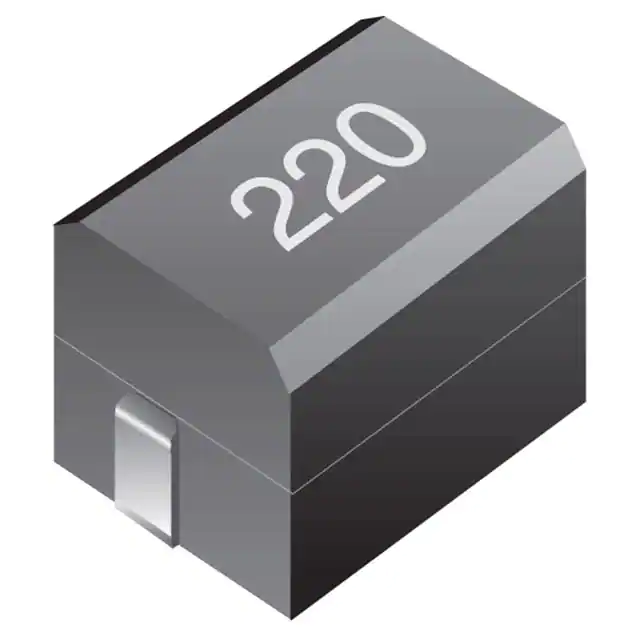

CC453232A-471KLFIXED IND 470UH 140MA 16 OHM SMD |
2,480 | 0.46 |
|
Datasheet |
CC453232A | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 470 µH | ±10% | 140 mA | 120mA | Unshielded | 16Ohm Max | 30 @ 796kHz | 2.7MHz | AEC-Q200 | -40°C ~ 150°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
VLS6045EX-3R3N-CAFIXED IND 3.3UH 4.95A 29.9 MOHM |
2,454 | 0.46 |
|
Datasheet |
VLS-EX | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 4.95 A | 6.5A | Shielded | 29.9mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

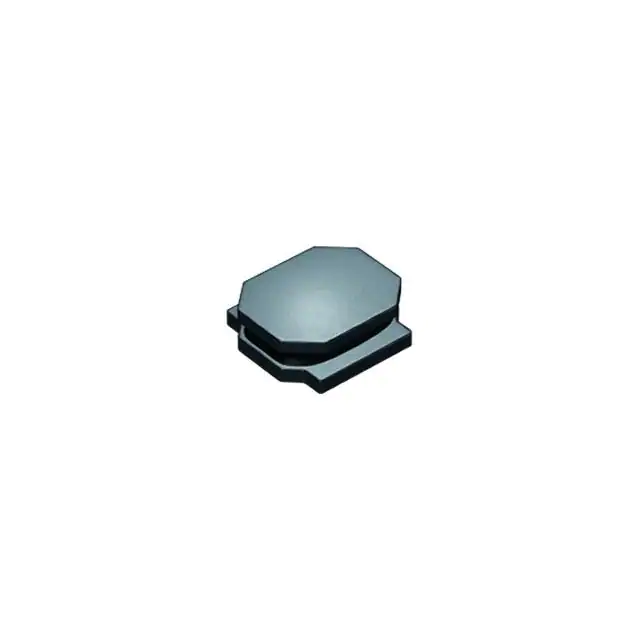

LCXND6060KKT6R8MMGFIXED IND 6.8UH 1.2A 264MOHM SMD |
2,000 | 0.46 |
|
Datasheet |
LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 1.2 A | 1.2A | Unshielded | 220mOhm | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.039" (1.00mm) |
