Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

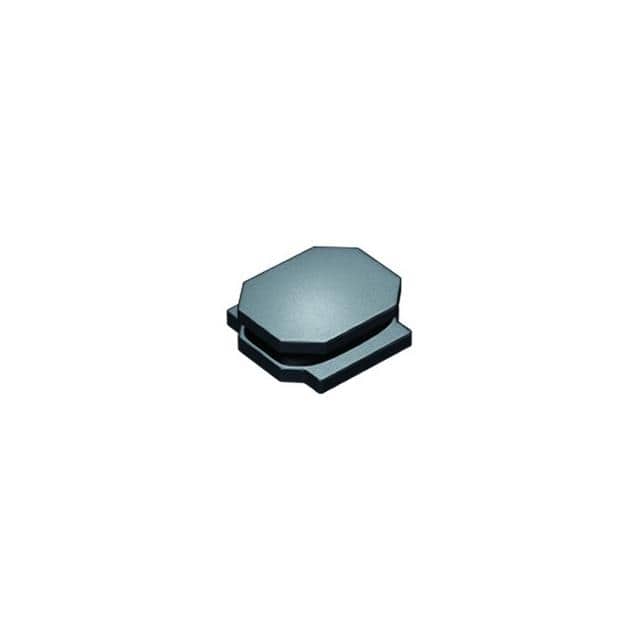

LCXND5050MKT1R0NMGFIXED IND 1UH 2.3A 63.6 MOHM SMD |
2,000 | 0.42 |
|
Datasheet |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±30% | 2.3 A | 4.5A | Unshielded | 53mOhm | - | 100MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.047" (1.20mm) |
|
VLS201612ET-3R3M-CAFIXED IND 3.3UH 850MA 357MOHM SM |
1,986 | 0.41 |
|
Datasheet |
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 850 mA | 790mA | Shielded | 357mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
VLS2010ET-R56N-CAFIXED IND 560NH 2.05A 60MOHM SMD |
1,972 | 0.41 |
|
Datasheet |
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 560 nH | ±30% | 2.05 A | 2A | Shielded | 60mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.039" (1.00mm) |
|
|
VLS201610ET-1R5N-CAFIXED IND 1.5UH 1.15A 181MOHM SM |
1,945 | 0.41 |
|
Datasheet |
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 1.15 A | 1.1A | Shielded | 181mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|

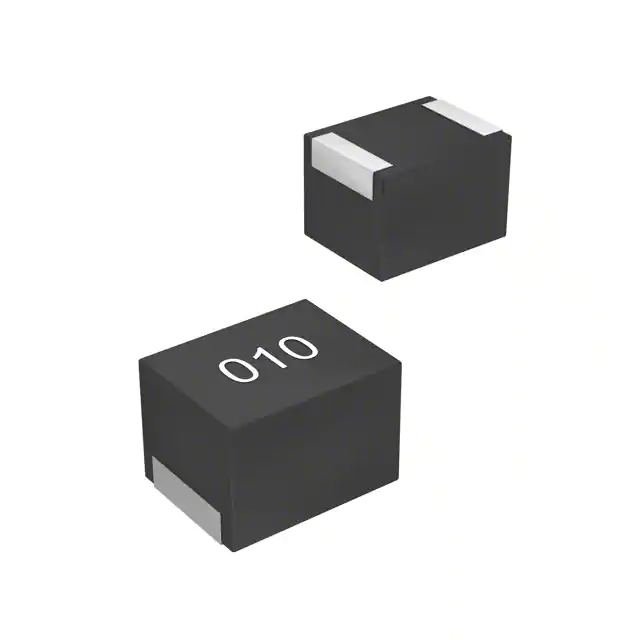

CMH322522-470KLFIXED IND 47UH 60MA 7 OHM SMD |
1,924 | 0.42 |
|
Datasheet |
CMH322522 | 1210 (3225 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 60 mA | - | Shielded | 7Ohm Max | 30 @ 2.52MHz | 13MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
VLS201610ET-2R2M-CAFIXED IND 2.2UH 950MA 276MOHM SM |
1,900 | 0.41 |
|
Datasheet |
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 950 mA | 940mA | Shielded | 276mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|
|
VLS2012ET-150M-CAFIXED IND 15UH 470MA 1.062OHM SM |
1,847 | 0.41 |
|
Datasheet |
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 470 mA | 400mA | Shielded | 1.062Ohm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
|
VLS2010ET-100M-CAFIXED IND 10UH 520MA 936MOHM SMD |
1,783 | 0.41 |
|
Datasheet |
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 520 mA | 470mA | Shielded | 936mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.039" (1.00mm) |
|
SDCHA1V6045-101-RIND SMD POWER 100UH 0.92A |
1,745 | 0.41 |
|
Datasheet |
SDCHA1V60 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 100 µH | ±20% | 920 mA | 1.33A | Shielded | 456mOhm | - | 8.5MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
VLS201610ET-4R7M-CAFIXED IND 4.7UH 670MA 554MOHM SM |
1,540 | 0.41 |
|
Datasheet |
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 670 mA | 640mA | Shielded | 554mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|
|
VLS252008ET-100M-CAFIXED IND 10UH 410MA 1.232OHM SM |
1,488 | 0.44 |
|
Datasheet |
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 410 mA | 430mA | Shielded | 1.232Ohm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
|
VLS201610ET-1R0N-CAFIXED IND 1UH 1.4A 119 MOHM SMD |
1,352 | 0.41 |
|
Datasheet |
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 1.4 A | 1.35A | Shielded | 119mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|

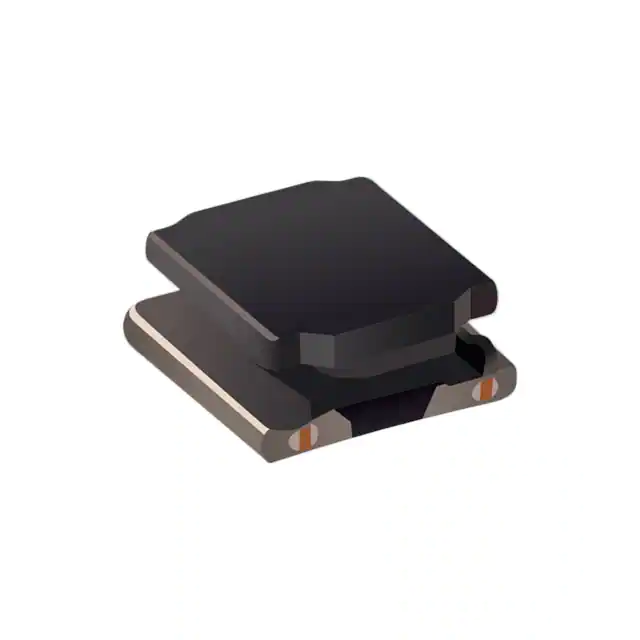

SRN4018TA-2R2MFIXED IND 2.2UH 2.2A 42 MOHM SMD |
12,493 | 0.44 |
|
Datasheet |
SRN4018TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.2 A | 3A | Shielded | 42mOhm | 10 @ 100kHz | 90MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
.jpg)
|
B82422A3271K100FIXED IND 270NH 235MA 900MOHM SM |
7,880 | 0.48 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 270 nH | ±10% | 235 mA | - | Unshielded | 900mOhm Max | 20 @ 30MHz | 650MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
36502C56NJTDGFIXED IND 56NH 1A 180 MOHM SMD |
5,910 | 0.39 |
|
Datasheet |
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 56 nH | ±5% | 1 A | - | Unshielded | 180mOhm Max | 65 @ 350MHz | 1.3GHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
36502A7N5JTDGFIXED IND 7.5NH 600MA 140MOHM SM |
5,765 | 0.39 |
|
Datasheet |
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 7.5 nH | ±5% | 600 mA | - | Unshielded | 140mOhm Max | 50 @ 1GHz | 4.5GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|

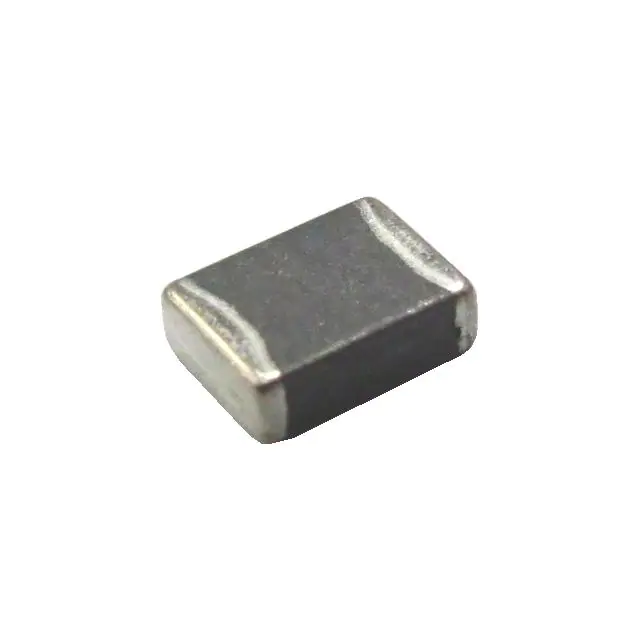

BKPB002520101R0MA2FIXED IND 1UH 1.5A 60 MOHM SMD |
5,508 | 0.42 |
|
Datasheet |
BKPB | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 1.5 A | 900mA | Shielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 3 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
36502C22NJTDGFIXED IND 22NH 1A 120 MOHM SMD |
5,353 | 0.39 |
|
Datasheet |
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 22 nH | ±5% | 1 A | - | Unshielded | 120mOhm Max | 55 @ 350MHz | 2.4GHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
|
36502A68NJTDGFIXED IND 68NH 500MA 380MOHM SMD |
5,230 | 0.39 |
|
Datasheet |
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 68 nH | ±5% | 500 mA | - | Unshielded | 380mOhm Max | 60 @ 500MHz | 1.45GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
36502C10NJTDGFIXED IND 10NH 1A 80 MOHM SMD |
4,595 | 0.39 |
|
Datasheet |
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 10 nH | ±5% | 1 A | - | Unshielded | 80mOhm Max | 50 @ 500MHz | 4.1GHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
