Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2322-V-RCFIXED IND 680UH 3.4A 150 MOHM TH |
507 | 0.93 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 680 µH | ±15% | 3.4 A | - | Unshielded | 150mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
2316-H-RCFIXED IND 220UH 5.8A 54 MOHM TH |
360 | 0.93 |
|
Datasheet |
2300 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 220 µH | ±15% | 5.8 A | - | Unshielded | 54mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2303-H-RCFIXED IND 15UH 18A 6 MOHM TH |
350 | 0.93 |
|
Datasheet |
2300 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 15 µH | ±15% | 18 A | - | Unshielded | 6mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2301-H-RCFIXED IND 10UH 20A 5 MOHM TH |
323 | 0.93 |
|
Datasheet |
2300 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±15% | 20 A | - | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2311-V-RCFIXED IND 68UH 7.7A 30 MOHM TH |
254 | 0.93 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 68 µH | ±15% | 7.7 A | - | Unshielded | 30mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2305-H-RCFIXED IND 22UH 16.4A 7 MOHM TH |
185 | 0.93 |
|
Datasheet |
2300 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 22 µH | ±15% | 16.4 A | - | Unshielded | 7mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2313-H-RCFIXED IND 120UH 6.7A 40 MOHM TH |
180 | 0.93 |
|
Datasheet |
2300 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 120 µH | ±15% | 6.7 A | - | Unshielded | 40mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2307-H-RCFIXED IND 33UH 11.7A 13 MOHM TH |
180 | 0.56 |
|
Datasheet |
2300 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 33 µH | ±15% | 11.7 A | - | Unshielded | 13mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2323-H-RCFIXED IND 820UH 2.6A 270 MOHM TH |
162 | 0.93 |
|
Datasheet |
2300 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 820 µH | ±15% | 2.6 A | - | Unshielded | 270mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2317-V-RCFIXED IND 270UH 5.5A 60 MOHM TH |
149 | 0.93 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 270 µH | ±15% | 5.5 A | - | Unshielded | 60mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2320-H-RCFIXED IND 470UH 3.8A 130 MOHM TH |
145 | 0.93 |
|
Datasheet |
2300 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 470 µH | ±15% | 3.8 A | - | Unshielded | 130mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2310-V-RCFIXED IND 56UH 10.2A 17 MOHM TH |
126 | 0.93 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 56 µH | ±15% | 10.2 A | - | Unshielded | 17mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2316-V-RCFIXED IND 220UH 5.8A 54 MOHM TH |
107 | 0.93 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 220 µH | ±15% | 5.8 A | - | Unshielded | 54mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|

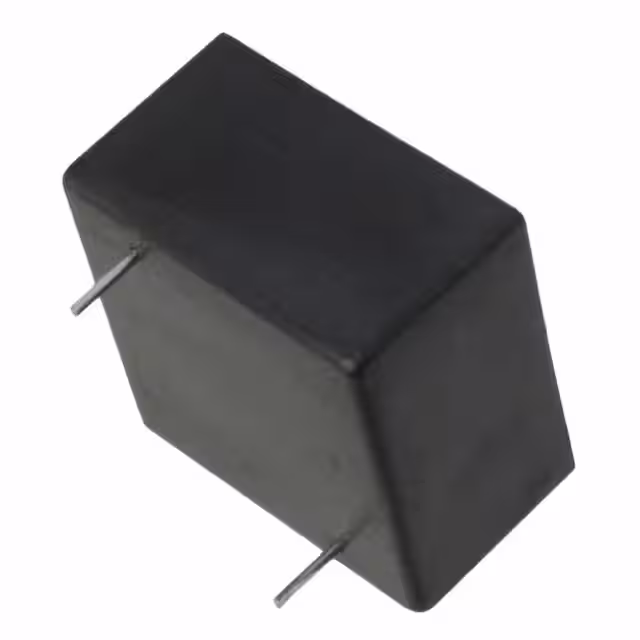

PE-53830NLFIXED IND 77UH 1.54A 200 MOHM TH |
430 | 0.90 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 77 µH | ±20% | 1.54 A | - | Shielded | 200mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.635" L x 0.635" W (16.13mm x 16.13mm) | 0.365" (9.27mm) |
|
PG1083.153NLFIXED IND 15.2UH 14A 9.2MOHM SMD |
871 | 0.94 |
|
Datasheet |
PG1083NL | Nonstandard | Tray | Active | Wirewound | - | 15.2 µH | ±20% | 14 A | 18.5A | Unshielded | 9.2mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.854" L x 0.846" W (21.70mm x 21.50mm) | 0.492" (12.50mm) |
|

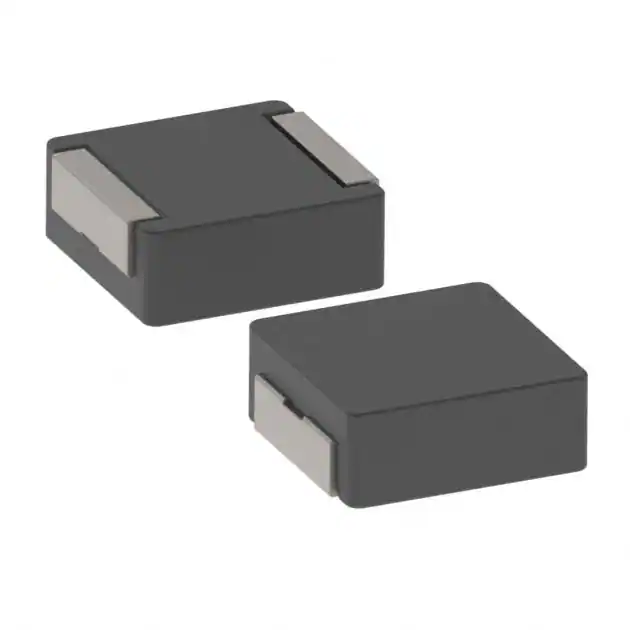

PM4344.103NLTFIXED IND 10UH 16.5A 13MOHM SMD |
1,476 | 0.97 |
|
Datasheet |
PM4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 16.5 A | 24A | Shielded | 13mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|
|
2212-V-RCFIXED IND 100UH 4.4A 56 MOHM TH |
763 | 0.94 |
|
Datasheet |
2200 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 100 µH | ±15% | 4.4 A | - | Shielded | 56mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
78439346150WE-XHMA SMT POWER INDUCTOR 6060; |
657 | 0.91 |
|
Datasheet |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 15 µH | ±20% | 4.2 A | 7.4A | Shielded | 42mOhm | - | 14MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.240" (6.10mm) |
|
PQ2617BHA-6R8KFIXED IND 6.8UH 28A 2.5 MOHM SMD |
557 | 0.91 |
|
Datasheet |
PQ2617BHA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 28 A | 45A | Shielded | 2.5mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.748" (19.00mm) |
|
|
78439346068WE-XHMA SMT POWER INDUCTOR 6060; |
428 | 0.91 |
|
Datasheet |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 6.8 µH | ±20% | 6.5 A | 11.3A | Shielded | 17.6mOhm | - | 22MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.240" (6.10mm) |
