Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RC-7FIXED IND 450UH 1A 420 MOHM TH |
590 | 0.94 |
|
Datasheet |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 450 µH | ±10% | 1 A | - | Unshielded | 420mOhm | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.600" Dia (15.24mm) | 0.930" (23.62mm) |
|
RC-9FIXED IND 200UH 1.6A 180 MOHM TH |
309 | 0.94 |
|
Datasheet |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 200 µH | ±10% | 1.6 A | - | Unshielded | 180mOhm | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.600" Dia (15.24mm) | 0.930" (23.62mm) |
|
RC-3FIXED IND 2.5MH 400MA 2.45OHM TH |
272 | 0.94 |
|
Datasheet |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.5 mH | ±10% | 400 mA | - | Unshielded | 2.45Ohm | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.600" Dia (15.24mm) | 0.930" (23.62mm) |
|
RC-8FIXED IND 250UH 1.25A 210MOHM TH |
109 | 0.94 |
|
Datasheet |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 250 µH | ±10% | 1.25 A | - | Unshielded | 210mOhm | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.600" Dia (15.24mm) | 0.930" (23.62mm) |
|
IHLE5050FHER220M5AFIXED IND 22UH 9A 33.49 MOHM SMD |
752 | 0.93 |
|
Datasheet |
IHLE-5050FH-5A | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 9 A | 6.3A | Shielded | 33.49mOhm Max | - | 6.6MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.535" W (13.97mm x 13.59mm) | 0.268" (6.80mm) |
|
|
IHLE5050FHER220M51FIXED IND 22UH 9A 33.49 MOHM SMD |
500 | 0.89 |
|
Datasheet |
IHLE-5050FH-51 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 9 A | 6.3A | Shielded | 33.49mOhm Max | - | 6.6MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.535" W (13.97mm x 13.59mm) | 0.268" (6.80mm) |
|
IHLP6767GZERR47M01FIXED IND 470NH 62A 1.03MOHM SMD |
279 | 0.93 |
|
Datasheet |
IHLP-6767GZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 62 A | 123A | Shielded | 1.03mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
SRP1770TA-5R6MFIXED IND 5.6UH 21A 7.05MOHM SMD |
245 | 0.96 |
|
Datasheet |
SRP1770TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 5.6 µH | ±20% | 21 A | 40A | Shielded | 7.05mOhm Max | 20 @ 100kHz | 12MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.90mm x 16.90mm) | 0.276" (7.00mm) |
|
|
SRP1770TA-390MFIXED IND 39UH 9.2A 48 MOHM SMD |
170 | 0.96 |
|
Datasheet |
SRP1770TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 39 µH | ±20% | 9.2 A | 11A | Shielded | 48mOhm Max | 20 @ 100kHz | 4MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.90mm x 16.90mm) | 0.276" (7.00mm) |
|
4590R-274KFIXED IND 270UH 1.715A 226 MOHM |
3,928 | 1.04 |
|
Datasheet |
4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 1.715 A | 1.1A | Unshielded | 226mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|

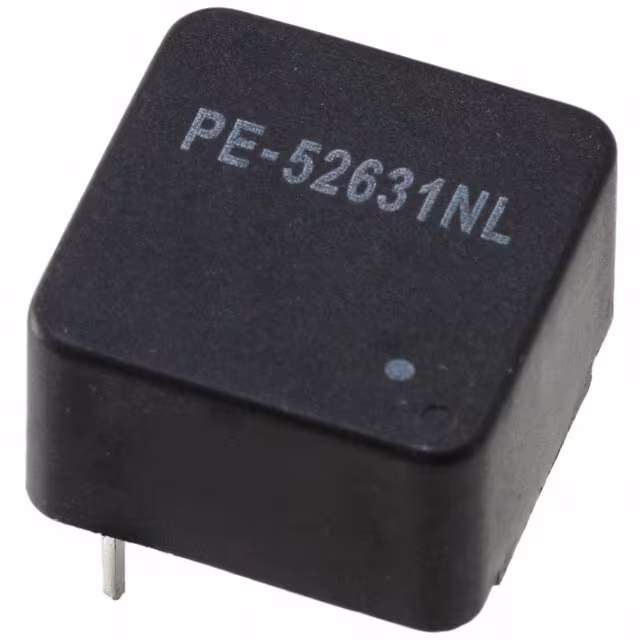

PE-52631NLFIXED IND 1MH 500MA 2.6 OHM TH |
455 | 0.92 |
|
Datasheet |
- | Radial, Horizontal - Corner Terminals | Tube | Active | Toroidal | - | 1 mH | ±20% | 500 mA | - | Unshielded | 2.6Ohm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.710" W (18.03mm x 18.03mm) | 0.460" (11.68mm) |
|
|
IHLP6767GZERR47M11FIXED IND 470NH 64.5A 0.87 MOHM |
197 | 0.93 |
|
Datasheet |
IHLP-6767GZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 64.5 A | 62A | Shielded | 0.87mOhm Max | - | 60MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
IHA305EBFIXED IND 100UH 4.2A 70 MOHM TH |
104 | 0.89 |
|
Datasheet |
IHA | Axial | - | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 4.2 A | - | Unshielded | 70mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.550" Dia x 1.175" L (13.97mm x 29.85mm) | - |
|
|
IHA104EBFIXED IND 500UH 1.6A 420 MOHM TH |
260 | 0.93 |
|
Datasheet |
IHA | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 500 µH | ±10% | 1.6 A | - | Unshielded | 420mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.550" Dia x 1.175" L (13.97mm x 29.85mm) | - |
|
|
IHLP6767GZER220M51FIXED IND 22UH 11.7A 22.27 MOHM |
984 | 0.95 |
|
Datasheet |
IHLP-6767GZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 11.7 A | 11A | Shielded | 22.27mOhm Max | - | 5.97MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
|
SRP1770TA-1R5MFIXED IND 1.5UH 47A 2.5 MOHM SMD |
189 | 0.96 |
|
Datasheet |
SRP1770TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 1.5 µH | ±20% | 47 A | 52A | Shielded | 2.5mOhm Max | 20 @ 100kHz | 30MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.90mm x 16.90mm) | 0.276" (7.00mm) |
|
|
SRP1770TA-8R2MFIXED IND 8.2UH 18A 10.8MOHM SMD |
183 | 0.96 |
|
Datasheet |
SRP1770TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 8.2 µH | ±20% | 18 A | 25A | Shielded | 10.8mOhm Max | 20 @ 100kHz | 10MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.90mm x 16.90mm) | 0.276" (7.00mm) |
|
PE-53821NLFIXED IND 78UH 820MA 300 MOHM TH |
286 | 0.88 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 78 µH | ±20% | 820 mA | - | Shielded | 300mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.495" L x 0.495" W (12.57mm x 12.57mm) | 0.375" (9.52mm) |
|
2313-V-RCFIXED IND 120UH 6.7A 40 MOHM TH |
1,688 | 0.93 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 120 µH | ±15% | 6.7 A | - | Unshielded | 40mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2307-V-RCFIXED IND 33UH 11.7A 13 MOHM TH |
1,500 | 0.93 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 33 µH | ±15% | 11.7 A | - | Unshielded | 13mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
