Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
IHLP7575GZER330M5AFIXED IND 33UH 10.2A 27.0 MOHM H |
596 | 1.27 |
|
Datasheet |
IHLP-7575GZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 10.2 A | 14.3A | Shielded | 27mOhm Max | - | 4.4MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.752" L x 0.750" W (19.10mm x 19.05mm) | 0.276" (7.00mm) |
|
177CDMCCDS-3R3MCFIXED IND 3.3UH 26.5A 3.11 MOHM |
336 | 0.90 |
|
Datasheet |
177CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 26.5 A | 31.8A | Shielded | 3.11mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
PA4344.333NLTFIXED IND 33UH 10.7A 44 MOHM SMD |
1,025 | 0.91 |
|
Datasheet |
PA4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | - | 10.7 A | 15A | Shielded | 44mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|

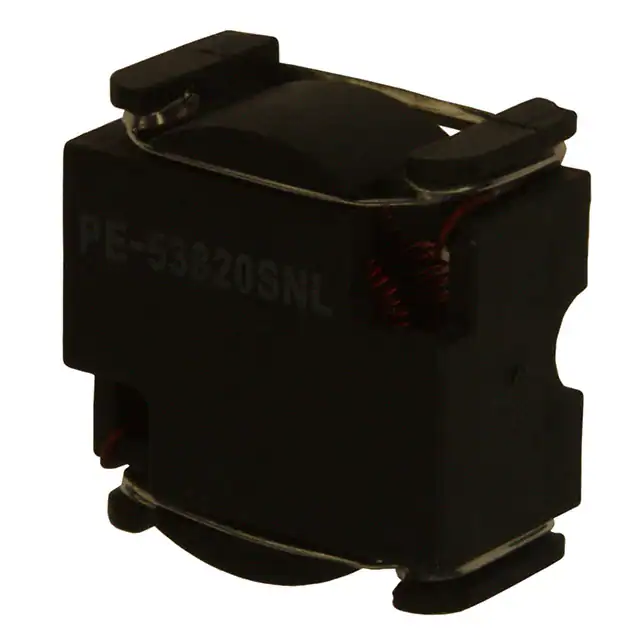

PE-53820SNLTFIXED IND 115UH 670MA 400MOHM SM |
996 | 0.79 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 115 µH | ±20% | 670 mA | - | Shielded | 400mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|

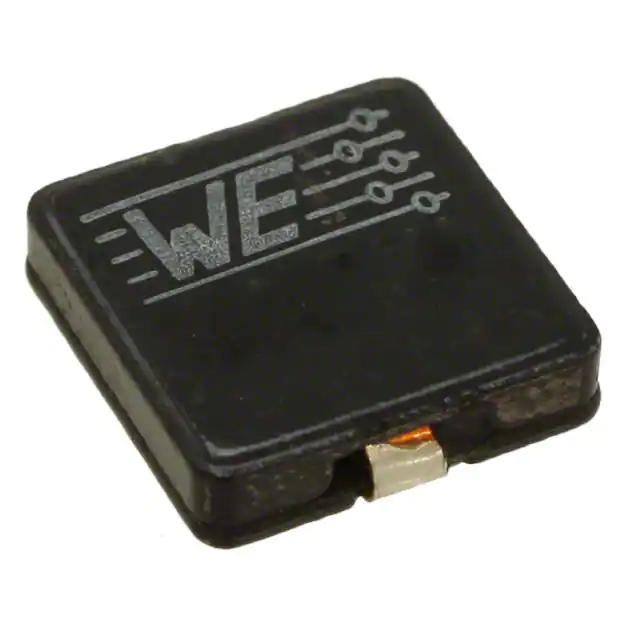

744313025FIXED IND 250NH 24A 0.75MOHM SMD |
813 | 0.80 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 250 nH | ±20% | 24 A | 60A | Shielded | 0.75mOhm | - | 170MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 1335 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.138" (3.50mm) |
|
|
744313068FIXED IND 680NH 22A 1.58MOHM SMD |
667 | 0.85 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 nH | ±20% | 22 A | 40A | Shielded | 1.58mOhm | - | 90MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 1335 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.138" (3.50mm) |
|
|
744313180FIXED IND 1.8UH 14A 5.6 MOHM SMD |
619 | 0.80 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.8 µH | ±20% | 14 A | 22A | Shielded | 5.6mOhm | - | 48MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 1335 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.138" (3.50mm) |
|
|
PA4344.682NLTFIXED IND 6.8UH 19A 9.2 MOHM SMD |
617 | 0.91 |
|
Datasheet |
PA4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | - | 19 A | 32A | Shielded | 9.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|
744325016FIXED IND 160NH 25A 0.51MOHM SMD |
327 | 0.80 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 160 nH | ±20% | 25 A | 58A | Shielded | 0.51mOhm | - | 400MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 1050 | 0.413" L x 0.402" W (10.50mm x 10.20mm) | 0.197" (5.00mm) |
|
FIT68-4FIXED IND 43.3UH 4.8A 42.4 MOHM |
810 | 0.91 |
|
Datasheet |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 43.3 µH | - | 4.8 A | - | Unshielded | 42.4mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.875" L x 0.475" W (22.22mm x 12.07mm) | 0.950" (24.13mm) |
|
|
FIT68-1FIXED IND 89.5UH 2.8A 108MOHM TH |
267 | 0.91 |
|
Datasheet |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 89.5 µH | - | 2.8 A | - | Unshielded | 108mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.875" L x 0.475" W (22.22mm x 12.07mm) | 0.950" (24.13mm) |
|
2100HT-150-H-RCFIXED IND 15UH 9.1A 14 MOHM TH |
454 | 0.88 |
|
Datasheet |
2100HT | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 15 µH | ±15% | 9.1 A | - | Shielded | 14mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
2100HT-180-V-RCFIXED IND 18UH 8.6A 16 MOHM TH |
315 | 0.88 |
|
Datasheet |
2100HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 18 µH | ±15% | 8.6 A | - | Shielded | 16mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
2100HT-181-H-RCFIXED IND 180UH 3.1A 120 MOHM TH |
300 | 0.88 |
|
Datasheet |
2100HT | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 180 µH | ±15% | 3.1 A | - | Shielded | 120mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
|
2100HT-330-H-RCFIXED IND 33UH 6.1A 31 MOHM TH |
235 | 0.88 |
|
Datasheet |
2100HT | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 33 µH | ±15% | 6.1 A | - | Shielded | 31mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
|
2100HT-471-H-RCFIXED IND 470UH 2A 290 MOHM TH |
200 | 0.88 |
|
Datasheet |
2100HT | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 470 µH | ±15% | 2 A | - | Shielded | 290mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
|
2100HT-221-H-RCFIXED IND 220UH 3A 130 MOHM TH |
113 | 0.88 |
|
Datasheet |
2100HT | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 220 µH | ±15% | 3 A | - | Shielded | 130mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
IHLP6767GZERR33M01FIXED IND 330NH 65A 0.82MOHM SMD |
362 | 0.93 |
|
Datasheet |
IHLP-6767GZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 65 A | 126A | Shielded | 0.82mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
RC-5FIXED IND 915UH 625MA 1 OHM TH |
1,444 | 0.94 |
|
Datasheet |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 915 µH | ±10% | 625 mA | - | Unshielded | 1Ohm | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.600" Dia (15.24mm) | 0.930" (23.62mm) |
|
RC-1FIXED IND 5.6MH 250MA 6.1 OHM TH |
1,111 | 0.94 |
|
Datasheet |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 5.6 mH | ±10% | 250 mA | - | Unshielded | 6.1Ohm | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.600" Dia (15.24mm) | 0.930" (23.62mm) |
