Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

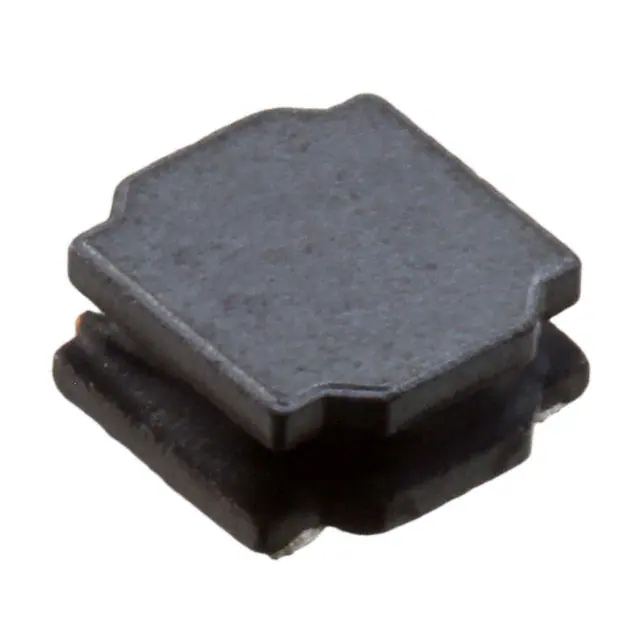

TYS4020680M-10FIXED IND 68UH 360MA 1.06OHM SMD Laird-Signal Integrity Products |
1,798 | 0.15 |
|
Datasheet |
TYS4020 | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 360 mA | 610mA | Shielded | 1.06Ohm Max | - | 7.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
TYS50201R0N-10FIXED IND 1UH 3.8A 20 MOHM SMD Laird-Signal Integrity Products |
2,721 | 0.15 |
|
Datasheet |
TYS5020 | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 1 µH | ±30% | 3.8 A | 4.1A | Shielded | 20mOhm Max | - | 114MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
TYS50204R7M-10FIXED IND 4.7UH 2.2A 57 MOHM SMD Laird-Signal Integrity Products |
3,211 | 0.15 |
|
Datasheet |
TYS5020 | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 2.2 A | 2.5A | Shielded | 57mOhm Max | - | 37MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
TYS50206R8M-10FIXED IND 6.8UH 1.8A 83 MOHM SMD Laird-Signal Integrity Products |
2,892 | 0.15 |
|
Datasheet |
TYS5020 | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 1.8 A | 2.05A | Shielded | 83mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|

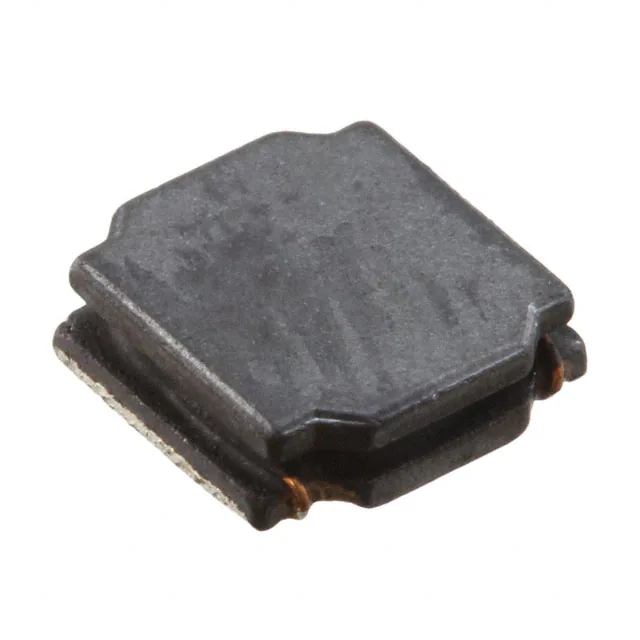

TYS6020100M-10FIXED IND 10UH 1.4A 105 MOHM SMD Laird-Signal Integrity Products |
2,156 | 0.16 |
|
Datasheet |
TYS6020 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1.4 A | 1.75A | Shielded | 105mOhm Max | - | 27MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.087" (2.20mm) |
|
|
TYS60206R8N-10FIXED IND 6.8UH 1.8A 79 MOHM SMD Laird-Signal Integrity Products |
3,369 | 0.16 |
|
Datasheet |
TYS6020 | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±30% | 1.8 A | 2.2A | Shielded | 79mOhm Max | - | 31MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.087" (2.20mm) |
|
TYS252010L100M-10FIXED IND 10UH 500MA 1.092OHM SM Laird-Signal Integrity Products |
1,578 | 0.16 |
|
Datasheet |
TYS252010L | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 500 mA | 650mA | Shielded | 1.092Ohm Max | - | 26MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
TYS252010L1R0N-10FIXED IND 1UH 1.65A 108 MOHM SMD Laird-Signal Integrity Products |
1,084 | 0.16 |
|
Datasheet |
TYS252010L | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 1 µH | ±30% | 1.65 A | 1.85A | Shielded | 108mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
TYS252010L2R2N-10FIXED IND 2.2UH 1.2A 209MOHM SMD Laird-Signal Integrity Products |
3,684 | 0.16 |
|
Datasheet |
TYS252010L | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±30% | 1.2 A | 1.2A | Shielded | 209mOhm Max | - | 61MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
TYS252010L4R7M-10FIXED IND 4.7UH 700MA 563MOHM SM Laird-Signal Integrity Products |
2,171 | 0.16 |
|
Datasheet |
TYS252010L | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 700 mA | 950mA | Shielded | 563mOhm Max | - | 40MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
