Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TYS60454R5M-10FIXED IND 4.5UH 3.3A 26 MOHM SMD Laird-Signal Integrity Products |
3,314 | 0.16 |
|
Datasheet |
TYS6045 | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.5 µH | ±20% | 3.3 A | 4.97A | Shielded | 26mOhm | - | 24MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
|
|
TYS60456R3M-10FIXED IND 6.3UH 3A 31 MOHM SMD Laird-Signal Integrity Products |
4,875 | 0.16 |
|
Datasheet |
TYS6045 | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.3 µH | ±20% | 3 A | 4.43A | Shielded | 31mOhm | - | 26MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
|
MGA05032R2M-10FIXED IND 2.2UH 5A 35 MOHM SMD Laird-Signal Integrity Products |
4,224 | - |
|
- |
MGA | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 2.2 µH | ±20% | 5 A | 8A | Unshielded | 35mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.213" W (5.70mm x 5.40mm) | 0.118" (3.00mm) |
|
|
MGA0503R47M-10FIXED IND 470NH 10A 8 MOHM SMD Laird-Signal Integrity Products |
3,959 | - |
|
- |
MGA | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 470 nH | ±20% | 10 A | 14A | Unshielded | 8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.213" W (5.70mm x 5.40mm) | 0.118" (3.00mm) |
|

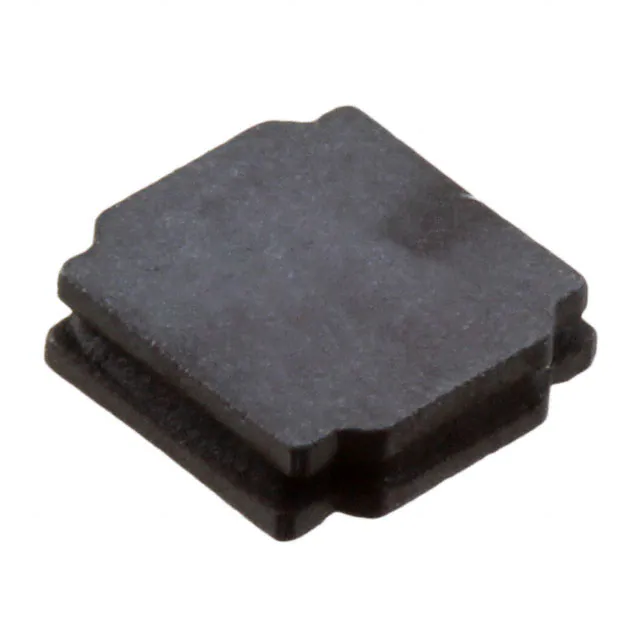

TYS4012100M-10FIXED IND 10UH 770MA 265MOHM SMD Laird-Signal Integrity Products |
4,431 | 0.15 |
|
Datasheet |
TYS4012 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 770 mA | 800mA | Shielded | 265mOhm Max | - | 33MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
TYS40121R0N-10FIXED IND 1UH 1.65A 50 MOHM SMD Laird-Signal Integrity Products |
1,595 | 0.15 |
|
Datasheet |
TYS4012 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±30% | 1.65 A | 2.61A | Shielded | 50mOhm Max | - | 120MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
TYS4012220M-10FIXED IND 22UH 490MA 587MOHM SMD Laird-Signal Integrity Products |
1,683 | 0.15 |
|
Datasheet |
TYS4012 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 490 mA | 460mA | Shielded | 587mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
TYS40122R2N-10FIXED IND 2.2UH 1.32A 80MOHM SMD Laird-Signal Integrity Products |
2,629 | 0.15 |
|
Datasheet |
TYS4012 | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±30% | 1.32 A | 1.76A | Shielded | 80mOhm Max | - | 74MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
TYS4012330M-10FIXED IND 33UH 420MA 810MOHM SMD Laird-Signal Integrity Products |
3,098 | 0.15 |
|
Datasheet |
TYS4012 | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 420 mA | 420mA | Shielded | 810mOhm Max | - | 17MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
TYS4012470M-10FIXED IND 47UH 370MA 1.1 OHM SMD Laird-Signal Integrity Products |
2,604 | 0.15 |
|
Datasheet |
TYS4012 | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 370 mA | 350mA | Shielded | 1.1Ohm Max | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
