FETs, MOSFETs
| 制造商 | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXTN46N50LMOSFET N-CH 500V 46A SOT-227B Littelfuse Inc. |
2,893 | 11.06 |
|
Datasheet |
Linear | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 46A (Tc) | 20V | 160mOhm @ 500mA, 20V | 6V @ 250µA | 260 nC @ 15 V | ±30V | 7000 pF @ 25 V | - | 700W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
IXTH1N300P3HVMOSFET N-CH 3000V 1A TO247HV Littelfuse Inc. |
2,039 | 7.27 |
|
Datasheet |
Polar P3™ | TO-247-3 Variant | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 3000 V | 1A (Tc) | 10V | 50Ohm @ 500mA, 10V | 4V @ 250µA | 30.6 nC @ 10 V | ±20V | 895 pF @ 25 V | - | 195W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247HV |
|
IXTX6N200P3HVMOSFET N-CH 2000V 6A TO247PLUSHV Littelfuse Inc. |
1,001 | 13.99 |
|
Datasheet |
Polar P3™ | TO-247-3 Variant | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 2000 V | 6A (Tc) | 10V | 4Ohm @ 3A, 10V | 5V @ 250µA | 143 nC @ 10 V | ±20V | 3700 pF @ 25 V | - | 960W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247PLUS-HV |
|
IXTA26P20PMOSFET P-CH 200V 26A TO263 Littelfuse Inc. |
3,765 | 1.35 |
|
Datasheet |
Polar | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | P-Channel | MOSFET (Metal Oxide) | 200 V | 26A (Tc) | 10V | 170mOhm @ 13A, 10V | 4V @ 250µA | 56 nC @ 10 V | ±20V | 2740 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263AA |
|
|
IXTA52P10P-TRLMOSFET P-CH 100V 52A TO263 Littelfuse Inc. |
4,313 | 1.35 |
|
Datasheet |
PolarP™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 52A (Tc) | 10V | 50mOhm @ 26A, 10V | 4V @ 250µA | 60 nC @ 10 V | ±20V | 2845 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
IXTA6N50D2MOSFET N-CH 500V 6A TO263 Littelfuse Inc. |
5,299 | 1.59 |
|
Datasheet |
Depletion | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel, Depletion Mode | MOSFET (Metal Oxide) | 500 V | 6A (Tc) | - | 500mOhm @ 3A, 0V | - | 96 nC @ 5 V | ±20V | 2800 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263AA |
|
|
IXTA6N50D2-TRLMOSFET N-CH 500V 6A TO263 Littelfuse Inc. |
4,549 | 1.59 |
|
Datasheet |
Depletion | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel, Depletion Mode | MOSFET (Metal Oxide) | 500 V | 6A (Tj) | 0V | 500mOhm @ 3A, 0V | 4.5V @ 250µA | 96 nC @ 5 V | ±20V | 2800 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
IXFP72N30X3MOSFET N-CH 300V 72A TO220AB Littelfuse Inc. |
8,594 | 1.97 |
|
Datasheet |
HiPerFET™, Ultra X3 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 72A (Tc) | 10V | 19mOhm @ 36A, 10V | 4.5V @ 1.5mA | 82 nC @ 10 V | ±20V | 5400 pF @ 25 V | - | 390W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
IXTH94N20X4MOSFET N-CH 200V 94A X4 TO-247 Littelfuse Inc. |
2,426 | 2.40 |
|
Datasheet |
Ultra X4 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 94A (Tc) | 10V | 10.6mOhm @ 47A, 10V | 4.5V @ 250µA | 77 nC @ 10 V | ±20V | 5050 pF @ 25 V | - | 360W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISO TO-247-3 |
|

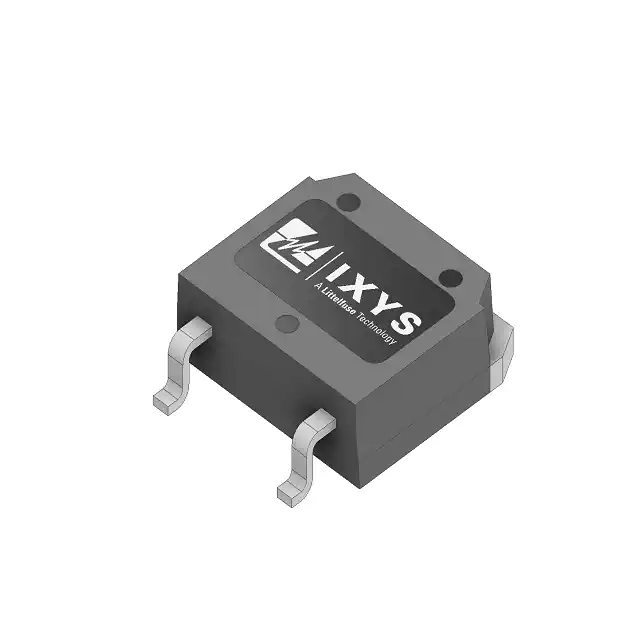

IXTT220N20X4HVMOSFET N-CH 200V 220A X4 TO268HV Littelfuse Inc. |
7,255 | 3.78 |
|
Datasheet |
Ultra X4 | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 220A (Tc) | 10V | 5.5mOhm @ 110A, 10V | 4.5V @ 250µA | 157 nC @ 10 V | ±20V | 12300 pF @ 25 V | - | 800W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-268HV (IXTT) |
