FETs, MOSFETs
| 制造商 | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXTP120N075T2MOSFET N-CH 75V 120A TO220AB Littelfuse Inc. |
1,580 | 0.79 |
|
Datasheet |
TrenchT2™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 120A (Tc) | 10V | 7.7mOhm @ 60A, 10V | 4V @ 250µA | 78 nC @ 10 V | ±20V | 4740 pF @ 25 V | - | 250W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
IXTA05N100HVMOSFET N-CH 1000V 750MA TO263 Littelfuse Inc. |
100 | 0.97 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 750mA (Tc) | 10V | 17Ohm @ 375mA, 10V | 4.5V @ 250µA | 7.8 nC @ 10 V | ±30V | 260 pF @ 25 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263HV |
|
|
IXFP76N15T2MOSFET N-CH 150V 76A TO220AB Littelfuse Inc. |
3,318 | 1.00 |
|
Datasheet |
HiPerFET™, TrenchT2™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 76A (Tc) | 10V | 20mOhm @ 38A, 10V | 4.5V @ 250µA | 97 nC @ 10 V | ±20V | 5800 pF @ 25 V | - | 350W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|

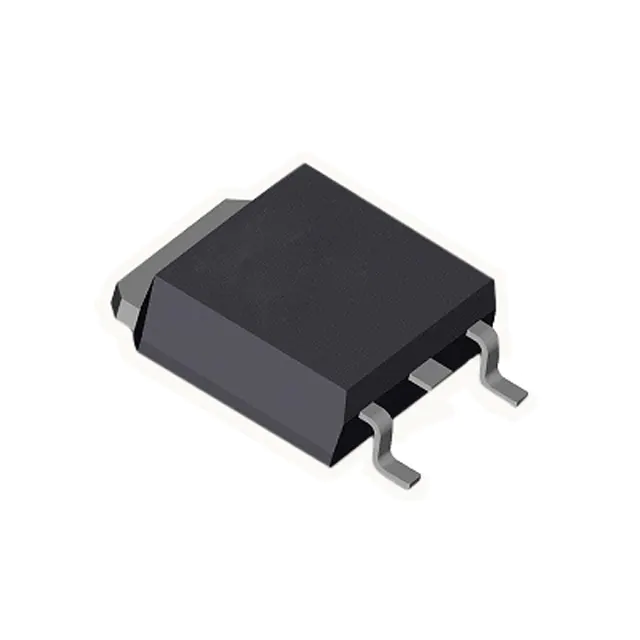

IXTY14N60X2MOSFET N-CH 600V 14A TO252 Littelfuse Inc. |
4,002 | 1.01 |
|
Datasheet |
Ultra X2 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 14A (Tc) | 10V | 250mOhm @ 7A, 10V | 4.5V @ 250µA | 16.7 nC @ 10 V | ±30V | 740 pF @ 25 V | - | 180W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
IXFH10N80PMOSFET N-CH 800V 10A TO247AD Littelfuse Inc. |
1,652 | 1.18 |
|
Datasheet |
HiPerFET™, Polar | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 10A (Tc) | 10V | 1.1Ohm @ 5A, 10V | 5.5V @ 2.5mA | 40 nC @ 10 V | ±30V | 2050 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD (IXFH) |
|
|
IXTP260N055T2MOSFET N-CH 55V 260A TO220AB Littelfuse Inc. |
3,254 | 1.38 |
|
Datasheet |
TrenchT2™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 260A (Tc) | 10V | 3.3mOhm @ 50A, 10V | 4V @ 250µA | 140 nC @ 10 V | ±20V | 10800 pF @ 25 V | - | 480W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
IXFP60N25X3MOSFET N-CH 250V 60A TO220AB Littelfuse Inc. |
3,442 | 1.62 |
|
Datasheet |
HiPerFET™, Ultra X3 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 60A (Tc) | 10V | 23mOhm @ 30A, 10V | 4.5V @ 1.5mA | 50 nC @ 10 V | ±20V | 3610 pF @ 25 V | - | 320W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB (IXFP) |
|
|
IXFH14N85XMOSFET N-CH 850V 14A TO247-3 Littelfuse Inc. |
2,314 | 1.71 |
|
Datasheet |
HiPerFET™, Ultra X | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 850 V | 14A (Tc) | 10V | 550mOhm @ 500mA, 10V | 5.5V @ 1mA | 30 nC @ 10 V | ±30V | 1043 pF @ 25 V | - | 460W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
|
IXFA130N15X3MOSFET N-CH 150V 130A TO263AA Littelfuse Inc. |
3,831 | 1.93 |
|
Datasheet |
HiPerFET™, Ultra X3 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 130A (Tc) | 10V | 9mOhm @ 65A, 10V | 4.5V @ 1.5mA | 80 nC @ 10 V | ±20V | 5230 pF @ 25 V | - | 390W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263AA (IXFA) |
|
|
IXFH110N10PMOSFET N-CH 100V 110A TO247AD Littelfuse Inc. |
2,314 | 1.53 |
|
Datasheet |
HiPerFET™, Polar | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 110A (Tc) | 10V | 15mOhm @ 500mA, 10V | 5V @ 4mA | 110 nC @ 10 V | ±20V | 3550 pF @ 25 V | - | 480W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247AD (IXFH) |
