FETs, MOSFETs
| 制造商 | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXTP100N15X4MOSFET N-CH 150V 100A TO220 Littelfuse Inc. |
4,299 | 1.99 |
|
Datasheet |
Ultra X4 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 100A (Tc) | 10V | 11.5mOhm @ 50A, 10V | 4.5V @ 250µA | 74 nC @ 10 V | ±20V | 3970 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|

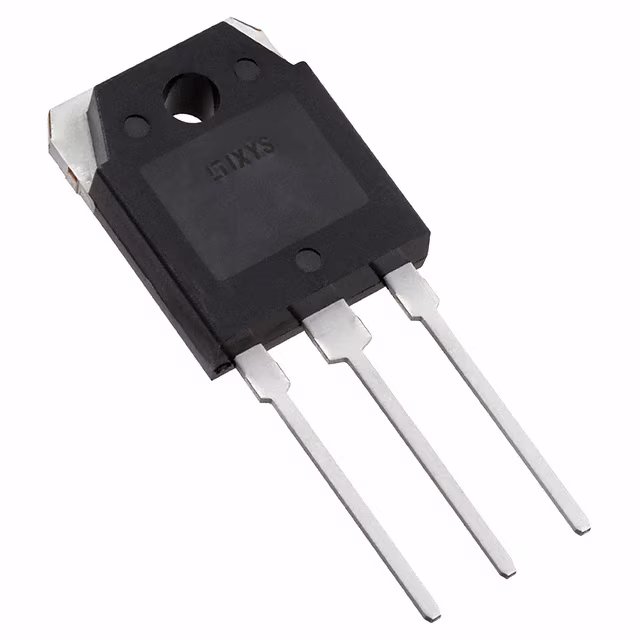

IXFQ120N25X3MOSFET N-CHANNEL 250V 120A TO3P Littelfuse Inc. |
1,555 | 2.44 |
|
Datasheet |
HiPerFET™, Ultra X3 | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 120A (Tc) | 10V | 12mOhm @ 60A, 10V | 4.5V @ 4mA | 122 nC @ 10 V | ±20V | 7870 pF @ 25 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3P |
.jpg)
|
IXFR200N10PMOSFET N-CH 100V 133A ISOPLUS247 Littelfuse Inc. |
2,278 | 3.72 |
|
Datasheet |
HiPerFET™, Polar | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 133A (Tc) | 10V | 9mOhm @ 100A, 10V | 5V @ 8mA | 235 nC @ 10 V | ±20V | 7600 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS247™ |
|
IXFQ140N20X3MOSFET N-CH 200V 140A TO3P Littelfuse Inc. |
4,761 | 2.44 |
|
Datasheet |
HiPerFET™, Ultra X3 | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 140A (Tc) | 10V | 9.6mOhm @ 70A, 10V | 4.5V @ 4mA | 127 nC @ 10 V | ±20V | 7660 pF @ 25 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3P |
|
IXFH170N10PMOSFET N-CH 100V 170A TO247AD Littelfuse Inc. |
2,547 | 2.46 |
|
Datasheet |
HiPerFET™, Polar | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 170A (Tc) | 10V | 9mOhm @ 500mA, 10V | 5V @ 4mA | 198 nC @ 10 V | ±20V | 6000 pF @ 25 V | - | 715W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247AD (IXFH) |
.jpg)
|
IXFH140N20X3MOSFET N-CH 200V 140A TO247 Littelfuse Inc. |
2,811 | 2.69 |
|
Datasheet |
HiPerFET™, Ultra X3 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 140A (Tc) | 10V | 9.6mOhm @ 70A, 10V | 4.5V @ 4mA | 127 nC @ 10 V | ±20V | 7660 pF @ 25 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
IXFT140N20X3HVMOSFET N-CH 200V 140A TO268HV Littelfuse Inc. |
2,879 | 2.89 |
|
Datasheet |
HiPerFET™, Ultra X3 | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 140A (Tc) | 10V | 9.6mOhm @ 70A, 10V | 4.5V @ 4mA | 127 nC @ 10 V | ±20V | 7660 pF @ 25 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-268HV (IXFT) |
|
IXTK102N30PMOSFET N-CH 300V 102A TO264 Littelfuse Inc. |
2,509 | 3.14 |
|
Datasheet |
Polar | TO-264-3, TO-264AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 102A (Tc) | 10V | 33mOhm @ 500mA, 10V | 5V @ 500µA | 224 nC @ 10 V | ±20V | 7500 pF @ 25 V | - | 700W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-264 (IXTK) |
|
|
IXFT180N20X3HVMOSFET N-CH 200V 180A TO268HV Littelfuse Inc. |
2,255 | 3.62 |
|
Datasheet |
HiPerFET™, Ultra X3 | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 180A (Tc) | 10V | 7.5mOhm @ 90A, 10V | 4.5V @ 4mA | 154 nC @ 10 V | ±20V | 10300 pF @ 25 V | - | 780W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-268HV (IXFT) |
|
|
IXFH150N20TMOSFET N-CH 200V 150A TO247AD Littelfuse Inc. |
1,333 | 3.84 |
|
Datasheet |
HiPerFET™, Trench | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 150A (Tc) | 10V | 15mOhm @ 75A, 10V | 5V @ 4mA | 177 nC @ 10 V | ±20V | 11700 pF @ 25 V | - | 890W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD (IXFH) |
