FETs, MOSFETs
| 制造商 | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPH3206PDGANFET N-CH 600V 17A TO220AB Transphorm |
4,666 | 2.25 |
|
Datasheet |
- | TO-220-3 | Tube | Not For New Designs | N-Channel | GaNFET (Gallium Nitride) | 600 V | 17A (Tc) | 10V | 180mOhm @ 11A, 8V | 2.6V @ 500µA | 9.3 nC @ 4.5 V | ±18V | 760 pF @ 480 V | - | 96W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
TP65H480G4JSGMOSFET 650V, 480mOhm Transphorm |
5,477 | - |
|
Datasheet |
SuperGaN® | 3-PowerTDFN | Bulk | Active | N-Channel | GaNFET (Gallium Nitride) | 650 V | 3.6A (Tc) | 8V | 560mOhm @ 3.4A, 8V | 2.8V @ 500µA | 9 nC @ 8 V | ±18V | 760 pF @ 400 V | - | 13.2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 3-PQFN (5x6) |
|
TPH3206LSGANFET N-CH 600V 17A PQFN Transphorm |
6,729 | 2.17 |
|
Datasheet |
- | 3-PowerDFN | Tube | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 600 V | 17A (Tc) | 10V | 180mOhm @ 11A, 8V | 2.6V @ 500µA | 9.3 nC @ 4.5 V | ±18V | 760 pF @ 480 V | - | 96W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 3-PQFN (8x8) |
|
TP90H050WSGANFET N-CH 900V 34A TO247-3 Transphorm |
3,977 | 4.01 |
|
Datasheet |
- | TO-247-3 | Tube | Obsolete | N-Channel | GaNFET (Cascode Gallium Nitride FET) | 900 V | 34A (Tc) | 10V | 63mOhm @ 22A, 10V | 4.4V @ 700µA | 17.5 nC @ 10 V | ±20V | 980 pF @ 600 V | - | 119W (Tc) | -55°C ~ 150°C | - | - | Through Hole | TO-247-3 |
|
TPH3205WSBQAGANFET N-CH 650V 35A TO247-3 Transphorm |
7,791 | 4.59 |
|
Datasheet |
- | TO-247-3 | Tube | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 650 V | 35A (Tc) | 10V | 62mOhm @ 22A, 8V | 2.6V @ 700µA | 42 nC @ 8 V | ±18V | 2200 pF @ 400 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-247-3 |
|
|
TPH3202PSGANFET N-CH 600V 9A TO220AB Transphorm |
4,635 | - |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 600 V | 9A (Tc) | 10V | 350mOhm @ 5.5A, 8V | 2.5V @ 250µA | 9.3 nC @ 4.5 V | ±18V | 760 pF @ 480 V | - | 65W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|

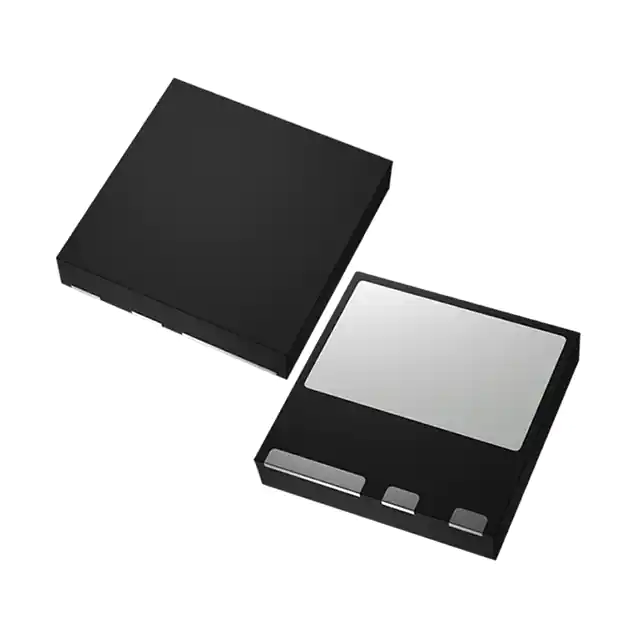

TPH3202LDGANFET N-CH 600V 9A 4PQFN Transphorm |
2,850 | - |
|
Datasheet |
- | 4-PowerDFN | Tube | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 600 V | 9A (Tc) | 10V | 350mOhm @ 5.5A, 8V | 2.5V @ 250µA | 9.3 nC @ 4.5 V | ±18V | 760 pF @ 480 V | - | 65W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 4-PQFN (8x8) |
|
|
TPH3206LDGANFET N-CH 600V 17A PQFN Transphorm |
6,343 | - |
|
Datasheet |
- | 4-PowerDFN | Tube | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 600 V | 17A (Tc) | 10V | 180mOhm @ 11A, 8V | 2.6V @ 500µA | 9.3 nC @ 4.5 V | ±18V | 760 pF @ 480 V | - | 96W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 4-PQFN (8x8) |
|
|
TPH3208PSGANFET N-CH 650V 20A TO220AB Transphorm |
5,167 | 2.09 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | N-Channel | GaNFET (Cascode Gallium Nitride FET) | 650 V | 20A (Tc) | 10V | 130mOhm @ 13A, 8V | 2.6V @ 300µA | 14 nC @ 8 V | ±18V | 760 pF @ 400 V | - | 96W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
TPH3208LDGANFET N-CH 650V 20A 4PQFN Transphorm |
4,804 | - |
|
Datasheet |
- | 4-PowerDFN | Tube | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 650 V | 20A (Tc) | 10V | 130mOhm @ 13A, 8V | 2.6V @ 300µA | 14 nC @ 8 V | ±18V | 760 pF @ 400 V | - | 96W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-PQFN (8x8) |
