DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-4020BF-175-306-22DC AXIAL FAN, 40 MM SQUARE, 20 M |
2,320 | - |
|
Datasheet |
CFM-40BF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 9.4 CFM (0.263m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 30.6dB(A) | 1.32 W | 7500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
.F.GN.jpg)
|

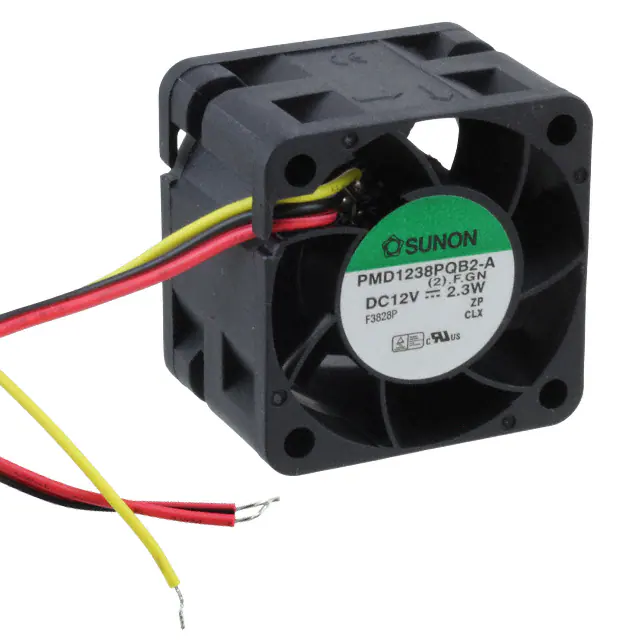

PMD1238PQB2-A(2).F.GNFAN AXIAL 38X28MM 12VDC WIRE |
1,215 | - |
|
Datasheet |
PMD | Bulk | Obsolete | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 12.6 CFM (0.353m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 42.0dB(A) | 2.3 W | 10000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.078 lb (35.38 g) |
|

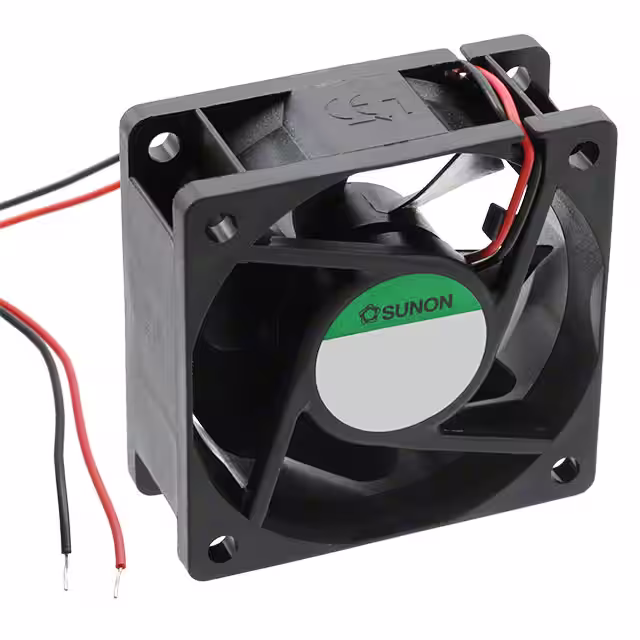

EB60252B1-000U-999FAN AXIAL 60X25MM 24VDC WIRE |
2,114 | - |
|
- |
EB | Tray | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | - | 34.5dB(A) | 1.9 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.126 lb (57.15 g) |
|
|
DB0402012L2B-2T0FAN BLOWER 40.5X19.5MM 12VDC |
1,925 | - |
|
Datasheet |
DB | Box | Active | 12VDC | Square/Rounded - 40.5mm L x 40.5mm H | 19.50mm | 1.6 CFM (0.045m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Blower | Locked Rotor Protection | 27.0dB(A) | 960 mW | 3500 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
|
|
DB0402012H2B-2T0FAN BLOWER 40.5X19.5MM 12VDC |
2,286 | - |
|
Datasheet |
DB | Box | Active | 12VDC | Square/Rounded - 40.5mm L x 40.5mm H | 19.50mm | 2.5 CFM (0.070m³/min) | 0.380 in H2O (94.6 Pa) | Ball | Blower | Locked Rotor Protection | 37.0dB(A) | 1.8 W | 5500 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
|
|
DB0402012U2B-2T0FAN BLOWER 40.5X19.5MM 12VDC |
4,655 | - |
|
Datasheet |
DB | Box | Active | 12VDC | Square/Rounded - 40.5mm L x 40.5mm H | 19.50mm | 3.0 CFM (0.084m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Blower | Locked Rotor Protection | 45.0dB(A) | 2.16 W | 6500 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
|
|
09225SA-24P-AA-D0FAN AXIAL 92X25MM 24VDC WIRE |
3,418 | 1.60 |
|
Datasheet |
09225SA | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 59.0 CFM (1.65m³/min) | 0.216 in H2O (53.9 Pa) | Ball | Tubeaxial | Auto Restart | 37.0dB | 2.64 W | 3550 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09225SA-24Q-AA-D0FAN AXIAL 92X25MM 24VDC WIRE |
2,126 | 1.60 |
|
Datasheet |
09225SA | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 65.0 CFM (1.82m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Auto Restart | 40.0dB | 3.12 W | 3900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09225SA-12P-AA-D0FAN AXIAL 92X25MM 12VDC WIRE |
3,374 | 1.60 |
|
Datasheet |
09225SA | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 62.5 CFM (1.75m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart | 39.0dB | 2.8 W | 3550 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09225SA-24M-AA-D0FAN AXIAL 92X25MM 24VDC WIRE |
1,495 | 1.60 |
|
Datasheet |
09225SA | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 45.2 CFM (1.27m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart | 29.0dB | 1.68 W | 2750 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
3610SB-04W-B50-B00FAN AXIAL 92X25MM 12VDC WIRE |
4,354 | 1.83 |
|
Datasheet |
09225SA | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 54.4 CFM (1.52m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | - | 35.0dB | 1.8 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.209 lb (94.8 g) |
|

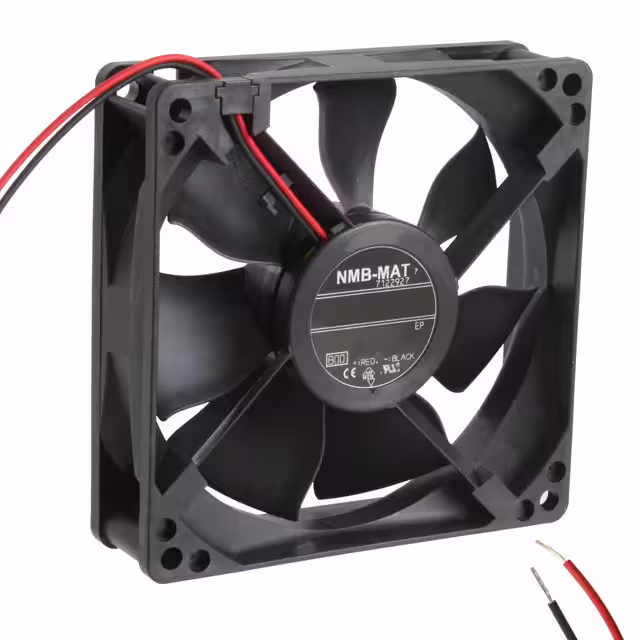

3610SB-05W-B30-B00FAN AXIAL 92X25MM 24VDC WIRE |
4,284 | 1.66 |
|
Datasheet |
09225SA | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 41.3 CFM (1.16m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | - | 28.0dB | 1.2 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.209 lb (94.8 g) |
|
|
3610SB-05W-B50-B00FAN AXIAL 92X25MM 24VDC WIRE |
3,358 | 1.83 |
|
Datasheet |
09225SA | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 54.4 CFM (1.52m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | - | 35.0dB | 1.8 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.209 lb (94.8 g) |
|

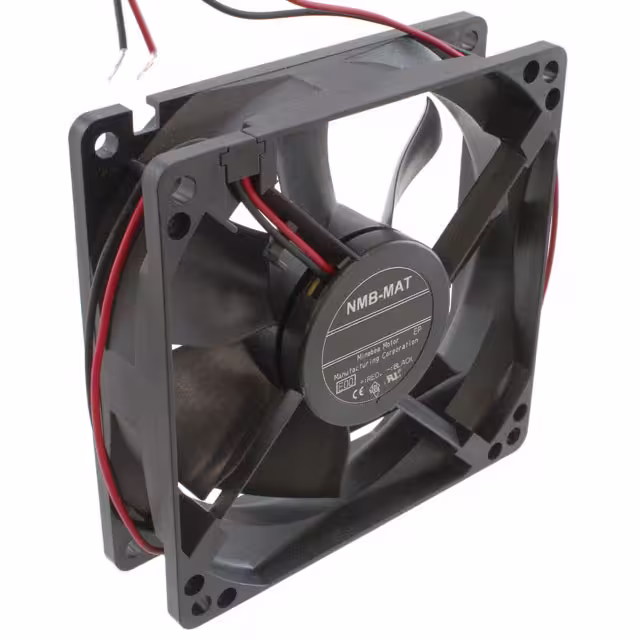

3610SB-04W-B20-E00FAN AXIAL 92X25MM 12VDC WIRE |
2,939 | 1.66 |
|
Datasheet |
09225SA | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 35.7 CFM (1.00m³/min) | 0.086 in H2O (21.5 Pa) | Ball | Tubeaxial | - | 25.0dB | 840 mW | 2050 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.209 lb (94.8 g) |
|

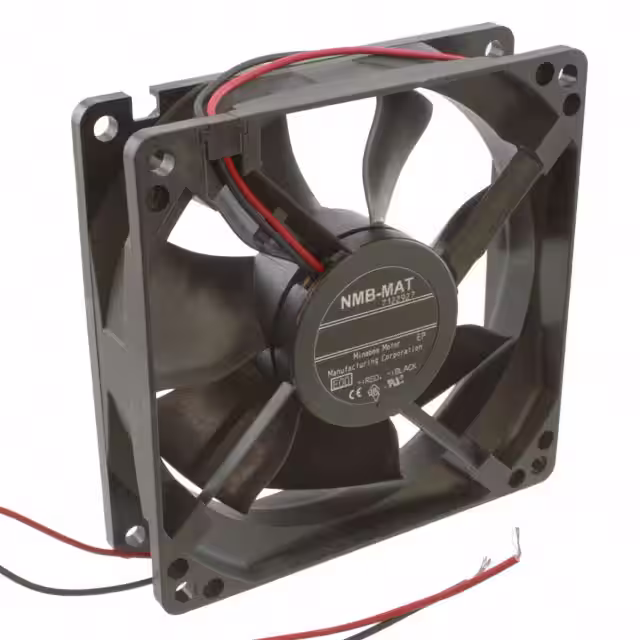

3610SB-05W-B50-E00FAN AXIAL 92X25MM 24VDC WIRE |
3,620 | - |
|
Datasheet |
09225SA | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 54.4 CFM (1.52m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | - | 35.0dB | 1.8 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.209 lb (94.8 g) |
|
|
BFB03505HHA-CFAN BLOWER 35X10MM 5VDC WIRE |
4,284 | 1.60 |
|
Datasheet |
BFB | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 2.1 CFM (0.059m³/min) | 0.443 in H2O (110.3 Pa) | Ball | Blower | Locked Rotor Protection | 31.0dB(A) | 1.15 W | 8500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.025 lb (11.34 g) |
|
|
FIT0437FAN 24VDC 2 POSITION RECT CONN |
1,561 | - |
|
Datasheet |
Overlord | Bulk | Obsolete | 24VDC | - | - | - | - | - | - | - | - | - | - | 2 Position Rectangular Connector | - | - | - | - |
|
CBM-979433S-125-467-20FAN BLOWER 97X33MM 12VDC WIRE |
1,956 | 1.62 |
|
Datasheet |
CBM-97S | Box | Active | 12VDC | Rectangular/Rounded - 97mm L x 94.8mm H | 33.00mm | 15.1 CFM (0.423m³/min) | 0.280 in H2O (69.7 Pa) | Sleeve | Blower | Auto Restart, Speed Sensor (Tach) | 39.5dB(A) | 4.68 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-979433S-225-467-20FAN BLOWER 97X33MM 24VDC WIRE |
4,094 | 1.62 |
|
Datasheet |
CBM-97S | Box | Active | 24VDC | Rectangular/Rounded - 97mm L x 94.8mm H | 33.00mm | 15.1 CFM (0.423m³/min) | 0.280 in H2O (69.7 Pa) | Sleeve | Blower | Auto Restart, Speed Sensor (Tach) | 39.5dB(A) | 4.8 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-8025-13-22FAN AXIAL 80X25.4MM 12VDC WIRE |
1,603 | - |
|
Datasheet |
CFM-80 | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 69.2 CFM (1.94m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 5.16 W | 5100 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.195 lb (88.45 g) |
