DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
CBM-7525C-235-416-22DC BLOWER, 75.2 X 74.2 X 25 MM, |
1,944 | - |
|
Datasheet |
CBM-75C | Box | Active | 24VDC | Rectangular/Rounded - 75.8mm L x 75.7mm H | 25.00mm | 10.2 CFM (0.286m³/min) | 0.550 in H2O (137.0 Pa) | omniCOOL™ Magnetic Sleeve | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 41.6dB(A) | 3.36 W | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-7525B-125-301DC BLOWER, 75.2 X 74.2 X 25 MM, |
3,188 | - |
|
Datasheet |
CBM-75B-2 | Box | Active | 12VDC | Rectangular/Rounded - 75.8mm L x 75.7mm H | 25.00mm | 7.4 CFM (0.207m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Blower | Auto Restart | 30.1dB(A) | 1.2 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-7525C-225-301-22DC BLOWER, 75.2 X 74.2 X 25 MM, |
1,109 | - |
|
Datasheet |
CBM-75C | Box | Active | 24VDC | Rectangular/Rounded - 75.8mm L x 75.7mm H | 25.00mm | 7.4 CFM (0.207m³/min) | 0.250 in H2O (62.3 Pa) | omniCOOL™ Magnetic Sleeve | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 30.1dB(A) | 1.44 W | 2500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-8025-13-20FAN AXIAL 80X25.4MM 12VDC WIRE |
4,330 | 2.40 |
|
Datasheet |
CFM-80 | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 69.2 CFM (1.94m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 47.0dB(A) | 5.16 W | 5100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.195 lb (88.45 g) |
|
04020VA-05K-AA-00FAN AXIAL 40X20MM BALL 5VDC WIRE |
2,980 | - |
|
- |
04020VA | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | - | - | Ball | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
04020VA-05J-AA-00FAN AXIAL 40X20MM BALL 5VDC WIRE |
2,576 | - |
|
- |
04020VA | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 5.7 CFM (0.160m³/min) | - | Ball | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
04020VA-05M-AA-00FAN AXIAL 40X20MM BALL 5VDC WIRE |
2,941 | - |
|
- |
04020VA | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | - | - | Ball | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
04020VA-12J-AA-00FAN AXIAL 40X20MM 12VDC WIRE |
1,978 | - |
|
- |
04020VA | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | - | - | Ball | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | - | - | - |
|
DC0401012H2B-2T0FAN AXIAL 40X10MM 12VDC WIRE |
4,067 | 1.28 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 7.2 CFM (0.202m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 26.0dB(A) | 720 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.045 lb (20.41 g) |
|

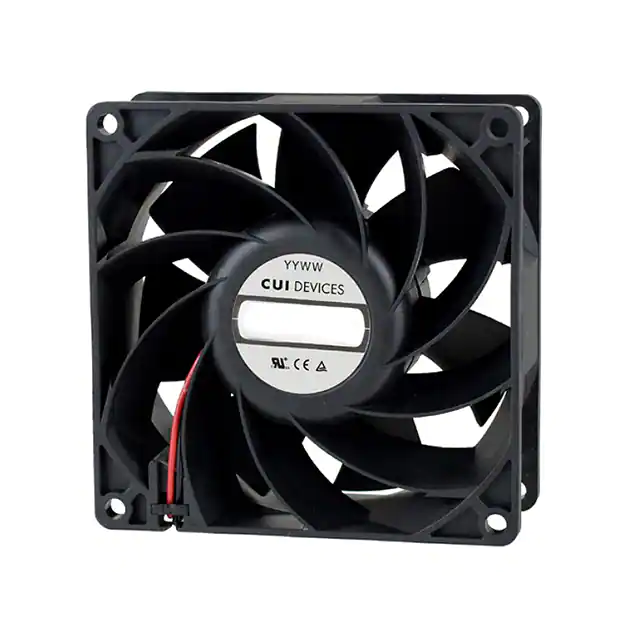

CFM-9238S-230-410FAN AXIAL 92X37.5MM 24VDC WIRE |
1,402 | 1.55 |
|
Datasheet |
CFM-92S | Box | Active | 24VDC | Square - 92mm L x 92mm H | 37.50mm | 57.5 CFM (1.61m³/min) | 0.250 in H2O (62.3 Pa) | Sleeve | Tubeaxial | Auto Restart | 41.1dB(A) | 4.08 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
AFB0524MDFAN AXIAL 50X20MM 24VDC WIRE |
1,810 | 1.46 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 20.00mm | 13.4 CFM (0.375m³/min) | 0.137 in H2O (34.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 1.44 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.085 lb (38.56 g) |
|
|
F6025S24B-RSFAN AXIAL 60X25MM 24VDC WIRE |
3,842 | 1.76 |
|
Datasheet |
F6025 | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 12.0 CFM (0.336m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 22.0dB(A) | - | 2300 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
|
AF40101VX-1000U-S9912VDC FAN 40X10MM TACH/PWM |
4,780 | - |
|
Datasheet |
AF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 7.5 CFM (0.210m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 30.7dB(A) | 0.78 W | 8000 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
AF40100VX-1000U-S995VDC FAN 40X10MM TACH/PWM |
3,377 | - |
|
Datasheet |
AF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 7.5 CFM (0.210m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 30.7dB(A) | 0.6 W | 8000 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
ME80152V2-000U-A99FAN AXIAL 80X15MM 24VDC WIRE |
1,544 | 0.88 |
|
Datasheet |
MagLev® ME | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 33.6 CFM (0.941m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 32.0dB(A) | 1.56 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.15 lb (68.04 g) |
|
|
EE80252B1-000U-F99FAN AXIAL 80X25MM 24VDC WIRE |
4,591 | 1.58 |
|
Datasheet |
EE | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 41.0 CFM (1.15m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 33.0dB(A) | 1.8 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.165 lb (74.84 g) |
|
|
EE80252B1-000U-G99FAN AXIAL 80X25MM 24VDC WIRE |
1,322 | - |
|
- |
EE | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 41.0 CFM (1.15m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 33.0dB(A) | 1.8 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.165 lb (74.84 g) |
|

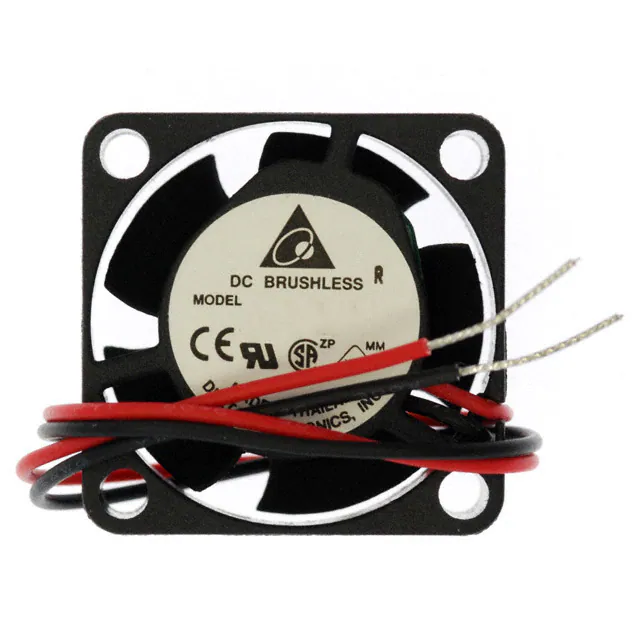

AFB02512HHA-AFAN AXIAL 25X10MM 12VDC WIRE |
3,839 | 2.74 |
|
Datasheet |
AFB | Tray | Obsolete | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 2.4 CFM (0.067m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 960 mW | 13000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.024 lb (10.89 g) |
|

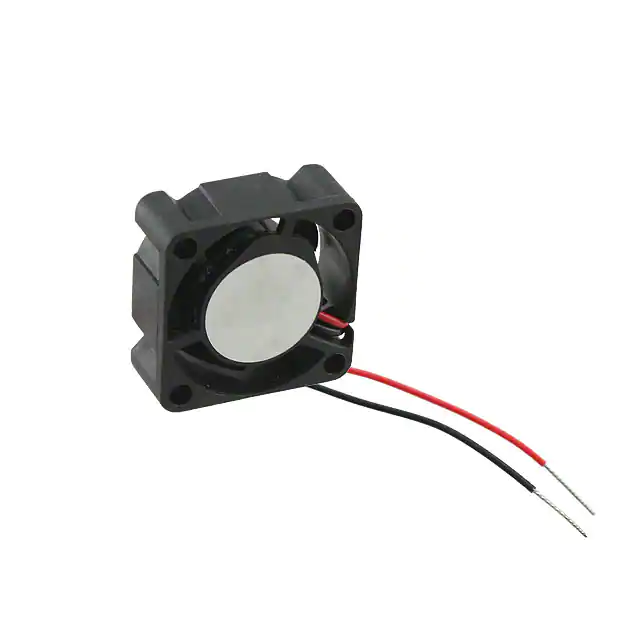

AFB02512HA-AFAN AXIAL 25X10MM 12VDC WIRE |
2,228 | 1.58 |
|
Datasheet |
AFB | Bulk | Obsolete | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.8 CFM (0.050m³/min) | 0.176 in H2O (43.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 23.5dB(A) | 720 mW | 10000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.024 lb (10.89 g) |
|
|
AFB03512LA-CFAN AXIAL 35X10MM 12VDC WIRE |
2,624 | 1.56 |
|
- |
AFB | Box | Obsolete | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 3.4 CFM (0.095m³/min) | 0.048 in H2O (11.9 Pa) | Ball | Tubeaxial | - | 13.0dB(A) | 360 mW | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.023 lb (10.43 g) |
