DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0801512L2B-2T0FAN AXIAL 80X15MM 12VDC WIRE |
3,628 | 1.50 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 27.5 CFM (0.770m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 30.0dB(A) | 1.2 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.121 lb (54.88 g) |
|
|
DC0801512J2B-2T0FAN AXIAL 80X15MM 12VDC WIRE |
2,625 | 1.50 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 22.0 CFM (0.616m³/min) | 0.050 in H2O (12.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 25.0dB(A) | 720 mW | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.121 lb (54.88 g) |
|

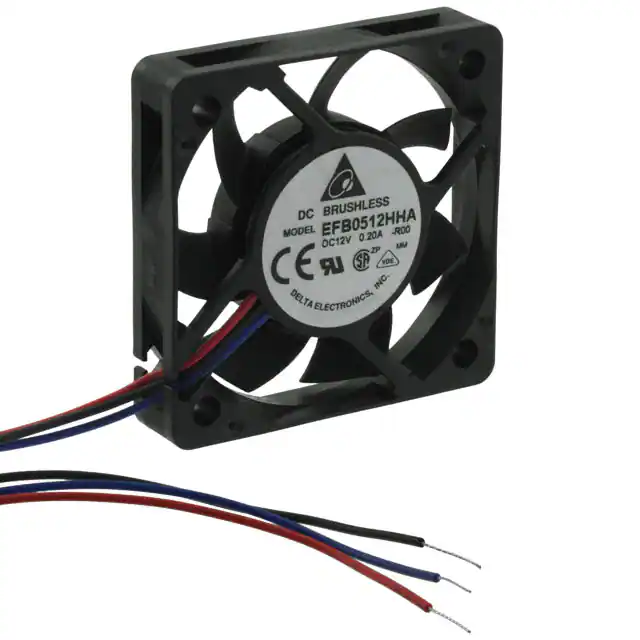

EFB0512HHA-R00FAN AXIAL 50X10MM 12VDC WIRE |
1,241 | 1.47 |
|
Datasheet |
EFB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 13.6 CFM (0.381m³/min) | 0.232 in H2O (57.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 33.5dB(A) | 1.8 W | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.057 lb (25.85 g) |
|
04010SA-24L-AAD-0FAN AXIAL 40X10MM 24VDC WIRE |
1,330 | - |
|
- |
04010SA | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.00mm | 4.9 CFM (0.137m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart | 21.5dB | 600 mW | 5500 RPM | 2 Wire Leads | - | - | - | - |
|
|
17000180AFAN 50X10.5MM CR0512UB-G70(T) |
1,929 | - |
|
Datasheet |
- | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 10.50mm | 12.0 CFM (0.336m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 32.0dB(A) | 1.2 W | 5600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, TUV, UL | 0.04 lb (18.14 g) |
|
|
17000181AFAN 50X10.5MM CR0512LB-G70(T) |
4,656 | - |
|
Datasheet |
- | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 10.50mm | 8.0 CFM (0.224m³/min) | 0.050 in H2O (12.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 20.0dB(A) | 960 mW | 3700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, TUV, UL | 0.04 lb (18.14 g) |
|
|
17000186AFAN 60X15MM CR0612HB-GA0(GLT1) |
4,494 | - |
|
Datasheet |
- | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 21.4 CFM (0.599m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 35.8dB(A) | 3 W | 4600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, TUV, UL | 0.067 lb (30.39 g) |
|
|
17000187AFAN 80X15.5MM CR0824LB-D90(T) |
3,502 | - |
|
Datasheet |
- | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 15.50mm | 29.6 CFM (0.829m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 36.0dB(A) | 1.2 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|

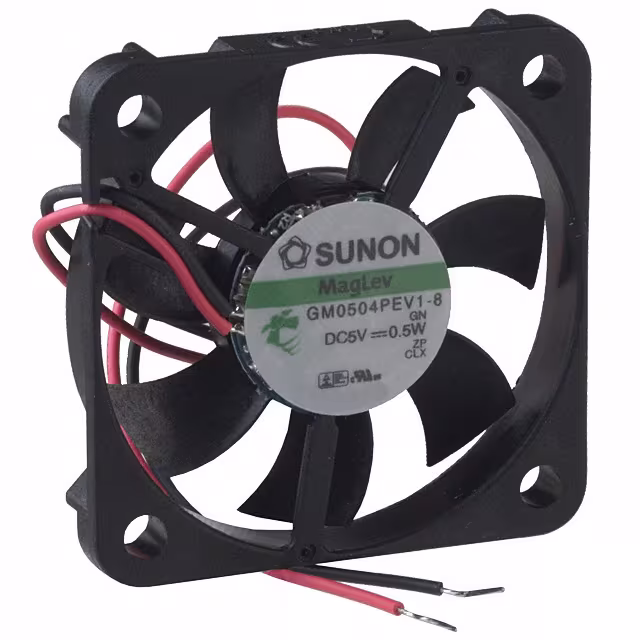

GM0504PEV1-8.GNFAN AXIAL 40X6.9MM 5VDC WIRE |
3,027 | - |
|
Datasheet |
MagLev® GM | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 6.90mm | 5.9 CFM (0.165m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | Tubeaxial | - | 32.0dB(A) | 500 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.017 lb (7.71 g) |
|
CFM-6025-13-20FAN AXIAL 60X25.4MM 12VDC WIRE |
3,632 | - |
|
Datasheet |
CFM-60 | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 36.3 CFM (1.02m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 49.0dB(A) | 4.8 W | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.161 lb (73.03 g) |
|
CFM-8025-23-11FAN AXIAL 80X25.4MM 24VDC WIRE |
4,079 | - |
|
Datasheet |
CFM-80 | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 69.2 CFM (1.94m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 47.0dB(A) | 4.8 W | 5100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.203 lb (92.08 g) |
|
|
CFM-4015B-275-287DC AXIAL FAN, 40 MM SQUARE, 15 M |
4,500 | - |
|
Datasheet |
CFM-40B | Box | Active | 24VDC | Square - 40mm L x 40mm H | 15.10mm | 8.4 CFM (0.235m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Auto Restart | 28.7dB(A) | 1.2 W | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-4020BF-255-212-22FAN AXIAL 40X20MM 24VDC WIRE |
1,262 | 1.61 |
|
Datasheet |
CFM-40BF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 6.9 CFM (0.193m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 21.2dB(A) | - | 5500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4020BF-095-342-22FAN AXIAL 40X20MM BALL 5VDC WIRE |
3,810 | 1.61 |
|
Datasheet |
CFM-40BF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 11.9 CFM (0.333m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 34.2dB(A) | 2.25 W | 9500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4020BF-235-114-22FAN AXIAL 40X20MM 24VDC WIRE |
2,264 | 1.61 |
|
Datasheet |
CFM-40BF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 4.4 CFM (0.123m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 11.4dB(A) | 960 mW | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4020BF-275-306-22FAN AXIAL 40X20MM 24VDC WIRE |
2,894 | 1.61 |
|
Datasheet |
CFM-40BF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 9.4 CFM (0.263m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 30.6dB(A) | 1.44 W | 7500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-7525C-145-494-22DC BLOWER, 75.2 X 74.2 X 25 MM, |
2,675 | - |
|
Datasheet |
CBM-75C | Box | Active | 12VDC | Rectangular/Rounded - 75.8mm L x 75.7mm H | 25.00mm | 13.4 CFM (0.375m³/min) | 1.100 in H2O (274.0 Pa) | omniCOOL™ Magnetic Sleeve | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 49.4dB(A) | 6.96 W | 4500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-7525C-245-494-22DC BLOWER, 75.2 X 74.2 X 25 MM, |
3,693 | - |
|
Datasheet |
CBM-75C | Box | Active | 24VDC | Rectangular/Rounded - 75.8mm L x 75.7mm H | 25.00mm | 13.4 CFM (0.375m³/min) | 1.100 in H2O (274.0 Pa) | omniCOOL™ Magnetic Sleeve | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 49.4dB(A) | 6.96 W | 4500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4020BF-135-114-22DC AXIAL FAN, 40 MM SQUARE, 20 M |
1,441 | - |
|
Datasheet |
CFM-40BF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 4.4 CFM (0.123m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 11.4dB(A) | 0.36 W | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4020BF-155-212-22DC AXIAL FAN, 40 MM SQUARE, 20 M |
3,129 | - |
|
Datasheet |
CFM-40BF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 6.9 CFM (0.193m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 21.2dB(A) | 0.72 W | 5500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
