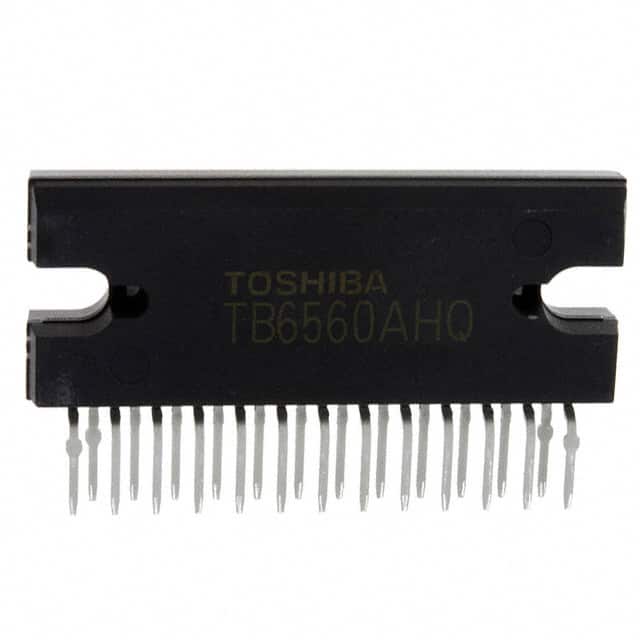

    Toshiba Semiconductor and Storage TB6560AHQ

    Part No.:
    TB6560AHQ
    Manufacturer:
    Toshiba Semiconductor and Storage
    Category:
    Motor Drivers, Controllers
    Package:
    25-SSIP Formed Leads
    Description:
    IC MTR DRV BIPLR 4.5-5.5V 25HZIP
    Quantity:

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Toshiba Semiconductor and Storage
    Series:
    -
    Package/Case:
    25-SSIP Formed Leads
    Packaging:
    Tray
    Product Status:
    Obsolete
    Motor Type - Stepper:
    Bipolar
    Motor Type - AC, DC:
    -
    Function:
    Driver - Fully Integrated, Control and Power Stage
    Output Configuration:
    Half Bridge (4)
    Interface:
    Parallel
    Technology:
    Power MOSFET
    Step Resolution:
    1, 1/2, 1/4, 1/8, 1/16
    Applications:
    General Purpose
    Current - Output:
    3A
    Voltage - Supply:
    4.5V ~ 5.5V
    Voltage - Load:
    4.5V ~ 34V
    Operating Temperature:
    -30°C ~ 85°C (TA)
    Grade:
    -
    Qualification:
    -
    Mounting Type:
    Through Hole
    Supplier Device Package:
    25-HZIP
