Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1NT1-3FSWITCH TOGGLE SPDT 15A 125V |
1,030 | - |
|
Datasheet |
NT | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|
|
A223P42DABSWITCH TOGGLE DPDT 0.5VA 28V |
3,435 | 8.10 |
|
Datasheet |
A | Bulk | Active | Panel Mount, Right Angle | DPDT | On-On | 0.5VA (AC/DC) | 28 V | 28 V | Flatted | 6.35mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Satin Chrome Actuator | -30°C ~ 90°C |
|
|
IGE254-73SWITCH TOGGLE 15A 125V |
1,089 | 8.03 |
|
- |
I | Bulk | Active | Panel Mount | - | - | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
5656CD2VTOGGLE SWITCH 5000 MINIATURE |
2,138 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 3PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
TTE11EGPC9T1/4ESSWITCH TOGGLE SPDT 0.4VA 20V |
2,426 | 6.39 |
|
Datasheet |
TT | Bulk | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.69mm | Non-Illuminated | - | - | PC Pin | Circular - 6.40mm Dia | 1/4-40 | Environment Sealed | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
649H3VSWITCH TOGGLE DPDT 10A 250V |
4,717 | 6.89 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | DPDT | On-Off-On | 10A (AC) | 250 V | - | Locking Lever | 20.40mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | - | - | -20°C ~ 55°C |
|
|
2NT231-7SWITCH TOGGLE DPDT 10A 125V |
3,306 | 7.41 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|
|
HM25B-78SWITCH TOGGLE 3PDT 15A 125V |
1,381 | 5.94 |
|
Datasheet |
H | Bulk | Active | Panel Mount | 3PDT | On-Off-Mom | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
A221K12KZGSWITCH TOGGLE DPDT 6A 125V |
3,987 | 6.99 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | On-Off-On | 6A (AC/DC) | 125 V | 28 V | Locking Lever | 15.47mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A223K22KZGSWITCH TOGGLE DPDT 6A 125V |
2,791 | 6.99 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Locking Lever | 15.47mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A232L21YAV2GSWITCH TOGGLE SP3T 6A 125V |
4,996 | 8.14 |
|
Datasheet |
A | Bulk | Active | Panel Mount, Right Angle, Vertical | SP3T | On-On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 13.97mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 90°C |
|
|
A334P31YZQSWITCH TOGGLE 3PDT 6A 125V |
3,609 | 8.14 |
|
Datasheet |
A | Bulk | Active | Panel Mount | 3PDT | On-Mom | 6A (AC/DC) | 125 V | 28 V | Flatted | 11.38mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
HK27E-73SWITCH TOGGLE 3PST-NO 17A 125V |
2,055 | 7.40 |
|
Datasheet |
H | Bulk | Active | Panel Mount | 3PST-NO | Off-Mom | 17A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
A423T11TZQSWITCH TOGGLE 4PDT 6A 125V |
2,451 | 7.87 |
|
Datasheet |
A | Bulk | Active | Panel Mount | 4PDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 11.89mm | Non-Illuminated | - | - | Solder Lug | - | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|

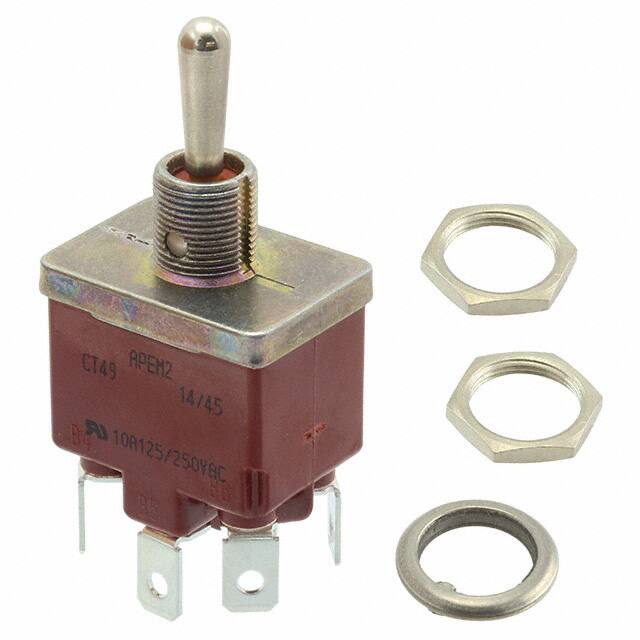

CT49021N022SWITCH TOGGLE DPDT 10A 125V |
1,089 | 7.69 |
|
Datasheet |
CT | Bulk | Active | Panel Mount | DPDT | On-Off-On | 10A (AC), 15A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Sealed - Fully | -40°C ~ 85°C |
|
|
A223K12KCG-M8SWITCH TOGGLE DPDT 5A 28V |
1,091 | - |
|
- |
A | Bulk | Active | Through Hole | DPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Locking Lever | 15.47mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | - | -25°C ~ 71°C |
|
|
32NT391-1-C02SEALED OI SWITCH |
1,188 | - |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3646NF/2X1052SWITCH TOGGLE DPDT 6A 125V |
1,668 | 8.30 |
|
Datasheet |
3600NF | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC), 12A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | Sealed | -40°C ~ 85°C |
|
|
5656A2VTOGGLE SWITCH 5000 MINIATURE |
3,779 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
5642AB14VTOGGLE SWITCH 5000 MINIATURE |
4,888 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
