Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STJ2E1-53SWITCH TOGGLE DPDT 16A 24V |
2,273 | 9.31 |
|
- |
ST | Bulk | Active | Panel Mount | DPDT | On-Off-On | 16A (DC) | - | 24 V | Standard Round | 14.25mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | - | IP68 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
STL251-73SWITCH TOGGLE DPDT 15A 125V |
1,605 | 9.31 |
|
- |
ST | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | - | IP68 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
STD2E1-53SWITCH TOGGLE DPDT 16A 24V |
4,206 | 9.31 |
|
- |
ST | Bulk | Active | Panel Mount | DPDT | On-On | 16A (DC) | - | 24 V | Standard Round | 14.25mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | - | IP68 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
STJ251-R3SWITCH TOGGLE DPDT 15A 125V |
3,217 | 9.31 |
|
- |
ST | Bulk | Active | Panel Mount | DPDT | On-Off-On | 15A (AC) | 125 V | - | Paddle | 22.35mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | - | IP68 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
A323T1TZQSWITCH TOGGLE 3PDT 6A 125V |
2,468 | 7.06 |
|
Datasheet |
A | Bulk | Active | Panel Mount | 3PDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | - | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A432S1YZQSWITCH TOGGLE DP3T 6A 125V |
1,689 | 6.11 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DP3T | On-On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 90°C |
|
|
WT223M1D1AGSWITCH TOGGLE DPDT 6A 125V |
4,040 | 7.06 |
|
Datasheet |
WT | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 7.60mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
5239ADGB17X408SWITCH TOGGLE SPDT 6A 125V |
2,133 | 6.36 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 7.00mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Matte Black Finish | -40°C ~ 85°C |
|
|
4659A32TOGGLE SWITCH 4400 6A 125V |
1,548 | - |
|
- |
4600 | Bulk | Active | Panel Mount | 3PDT | On-Off-On | 6A (AC) | 125 V | - | Standard Round | 15.00mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|
|
5644MTH1RABSWITCH TOGGLE SP3T 6A 125V |
4,340 | 6.50 |
|
Datasheet |
5000M | Bulk | Active | Panel Mount | SP3T | On-On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | Jumper needed to achieve triple throw | -40°C ~ 85°C |
|
|
5644MTHABSWITCH TOGGLE SP3T 6A 125V |
4,058 | 6.51 |
|
Datasheet |
5000M | Bulk | Active | Panel Mount | SP3T | On-On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | Jumper needed to achieve triple throw | -40°C ~ 85°C |
|
|
5644MTH2RABSWITCH TOGGLE SP3T 6A 125V |
2,271 | 6.51 |
|
Datasheet |
5000M | Bulk | Active | Panel Mount | SP3T | Mom-On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | Jumper needed to achieve triple throw | -40°C ~ 85°C |
|
|
11137AKSWITCH TOGGLE SPDT 4A 125V |
2,180 | 6.37 |
|
Datasheet |
11000 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 4A (AC/DC) | 125 V | 30 V | Standard Round | 11.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals, Front Panel Sealing | -40°C ~ 85°C |
|
|
11136AKSWITCH TOGGLE SPDT 4A 125V |
3,088 | 6.37 |
|
Datasheet |
11000 | Bulk | Active | Panel Mount | SPDT | On-On | 4A (AC/DC) | 125 V | 30 V | Standard Round | 11.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals, Front Panel Sealing | -40°C ~ 85°C |
|

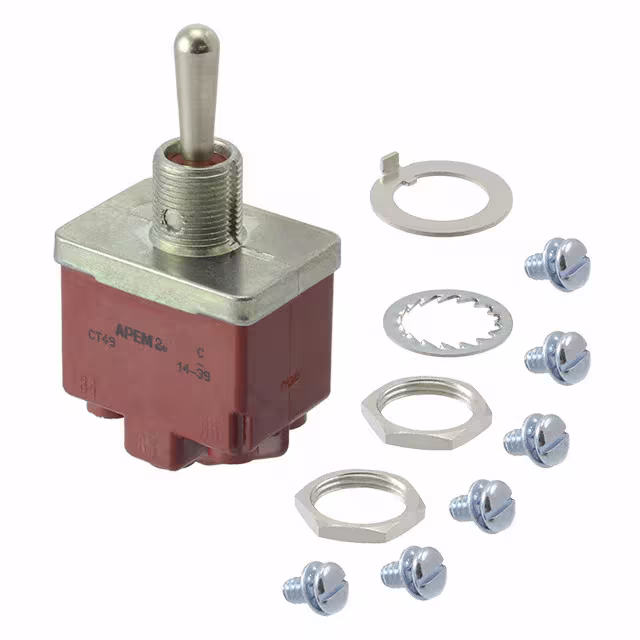

CT49001N000SWITCH TOGGLE DPDT 10A 125V |
3,899 | 6.51 |
|
Datasheet |
CT | Bulk | Active | Panel Mount | DPDT | On-Off-On | 10A (AC), 15A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Sealed - Fully | -40°C ~ 85°C |
|
|
1520135-2SWITCH TOGGLE DPST 16A 125V |
1,233 | 6.34 |
|
Datasheet |
- | Bulk | Active | Panel Mount | DPST | On-Off | 16A (AC) | 125 V | - | Standard Round | 12.70mm | Non-Illuminated | - | - | Screw Terminal | - | 15/32-32 | - | - | - |
|
|
5666CDBTOGGLE SWITCH 5000 MINIATURE |
1,467 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 4PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
AML23EBA2BC04SWITCH TOGGLE DPDT 100MA 125V |
2,639 | - |
|
Datasheet |
AML23 | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 100mA (AC/DC) | 125 V | 125 V | Paddle | - | Non-Illuminated | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Rectangular - 28.98mm x 19.05mm | - | - | - | - |
|
62NT1-2SWITCH TOGGLE DPST 15A 125V |
3,791 | 6.61 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|
|
5669CDBTOGGLE SWITCH 5000 MINIATURE |
2,042 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
