Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5636MA27TOGGLE SWITCH 5000 MINIATURE |
3,174 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
M83731/9-311SWITCH TOGGLE SPDT 5A 115V |
3,481 | 6.78 |
|
Datasheet |
M83731 | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 5A (AC/DC) | 115 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -25°C ~ 71°C |
|
|
5669A4NTOGGLE SWITCH 5000 MINIATURE |
2,884 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
5247MABTOGGLE SWITCH 5000 MINIATURE |
2,978 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
|
5648MATOGGLE SWITCH 5000 MINIATURE |
1,237 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
|
A223K12KAV2BSWITCH TOGGLE DPDT 0.5VA 28V |
4,251 | 6.90 |
|
Datasheet |
A | Bulk | Active | Panel Mount, Right Angle, Vertical | DPDT | On-On | 0.5VA (AC/DC) | 28 V | 28 V | Locking Lever | 15.47mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A234S1CWZG-M8SWITCH TOGGLE DPDT 6A 125V |
4,546 | 6.14 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | On-Mom | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | Splash Proof | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A221P31YAV2QSWITCH TOGGLE DPDT 6A 125V |
4,977 | 6.14 |
|
Datasheet |
A | Bulk | Active | Panel Mount, Right Angle, Vertical | DPDT | On-Off-On | 6A (AC/DC) | 125 V | 28 V | Flatted | 11.38mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|

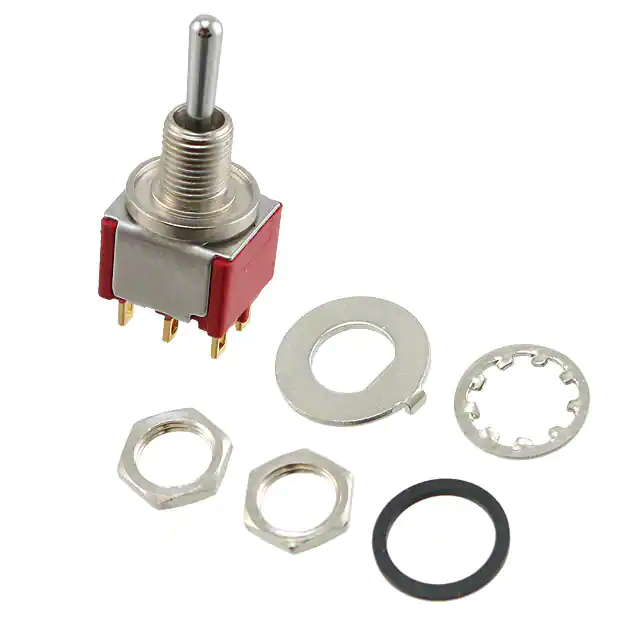

M83731/10-271SWITCH TOGGLE DPDT 5A 115V |
2,248 | 7.93 |
|
Datasheet |
M83731 | Tray | Active | Panel Mount | DPDT | Mom-Off-Mom | 5A (AC/DC) | 115 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -25°C ~ 71°C |
|
|
IGE251-78SWITCH TOGGLE 15A 125V |
3,309 | 6.85 |
|
- |
I | Bulk | Active | Panel Mount | - | - | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
7411TCWCQESWITCH TOGGLE DP3T 5A 120V |
4,802 | 5.75 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
5649ADB3VX408TOGGLE SWITCH 5000 MINIATURE |
1,084 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
647H/2K4TOGGLE SWITCH 600H HIGH POWER |
2,016 | - |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A323P31YZQSWITCH TOGGLE 3PDT 6A 125V |
1,827 | 6.59 |
|
Datasheet |
A | Bulk | Active | Panel Mount | 3PDT | On-On | 6A (AC/DC) | 125 V | 28 V | Flatted | 11.38mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
7411TPZQESWITCH TOGGLE DP3T 5A 120V |
2,087 | 5.95 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Anti-Rotation | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
1520270-1SWITCH TOGGLE DPST 20A 125V |
3,954 | 6.34 |
|
Datasheet |
- | Bulk | Active | Panel Mount | DPST | On-Off | 20A (AC) | 125 V | - | Standard Round | - | Non-Illuminated | - | - | Screw Terminal | - | - | - | - | 0°C ~ 55°C |
|
|
A321S1DW4QSWITCH TOGGLE 3PDT 6A 125V |
4,509 | 6.94 |
|
Datasheet |
A | Bulk | Active | Panel Mount | 3PDT | On-Off-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Wire Wrap | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A323S1YCQSWITCH TOGGLE 3PDT 6A 125V |
1,686 | 5.99 |
|
Datasheet |
A | Bulk | Active | Panel Mount | 3PDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A327M1YCQSWITCH TOGGLE 3PDT 6A 125V |
1,901 | 6.94 |
|
Datasheet |
A | Bulk | Active | Panel Mount | 3PDT | Mom-Off-Mom | 6A (AC/DC) | 125 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
M83731/9-212SWITCH TOGGLE SPDT 5A 115V |
3,450 | 6.84 |
|
Datasheet |
M83731 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 5A (AC/DC) | 115 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -25°C ~ 71°C |
